Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

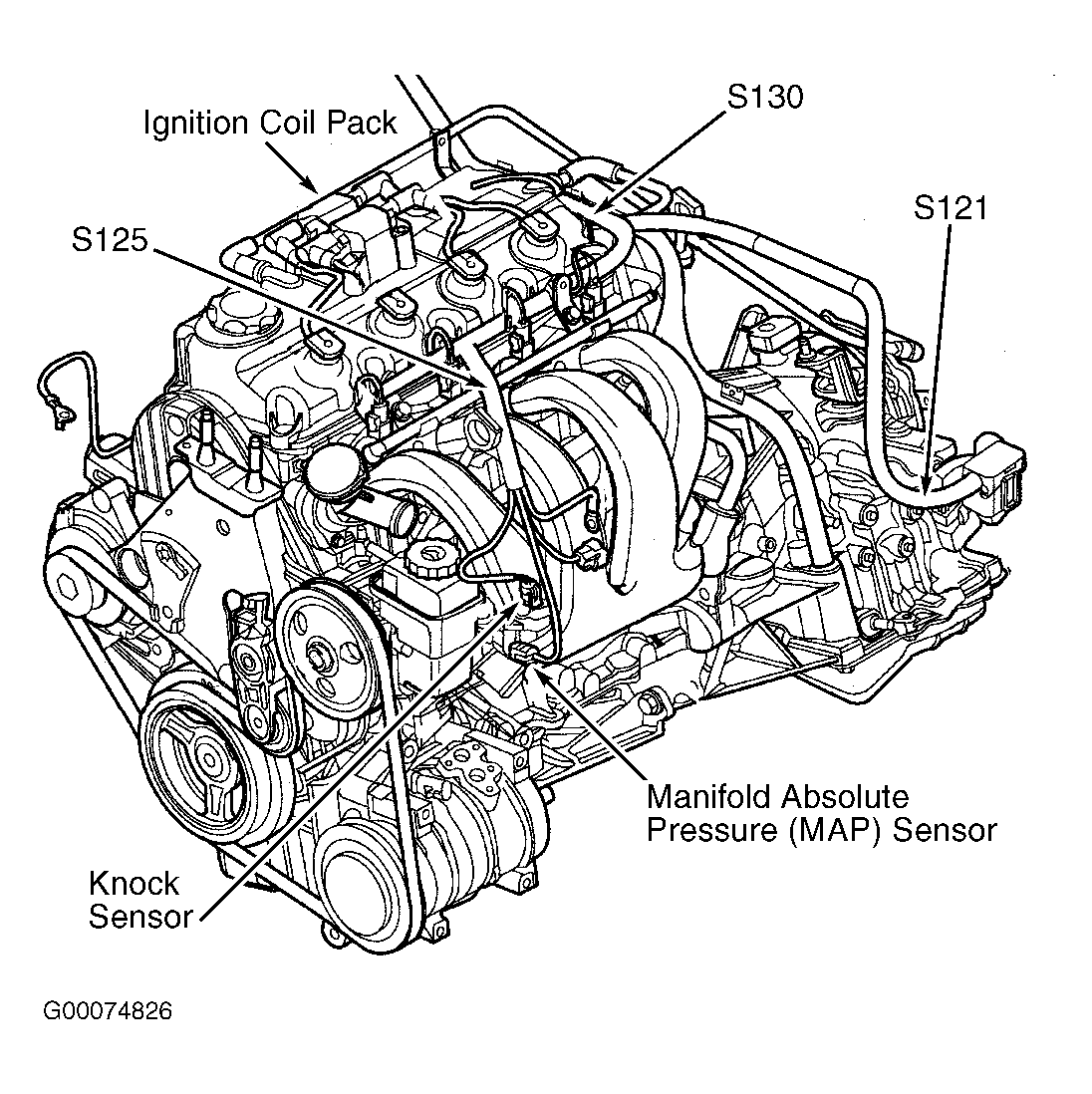

Fig 1: Left Side Of Engine
G00074826Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Transaxle
G98C63620Courtesy of DAIMLERCHRYSLER CORP.

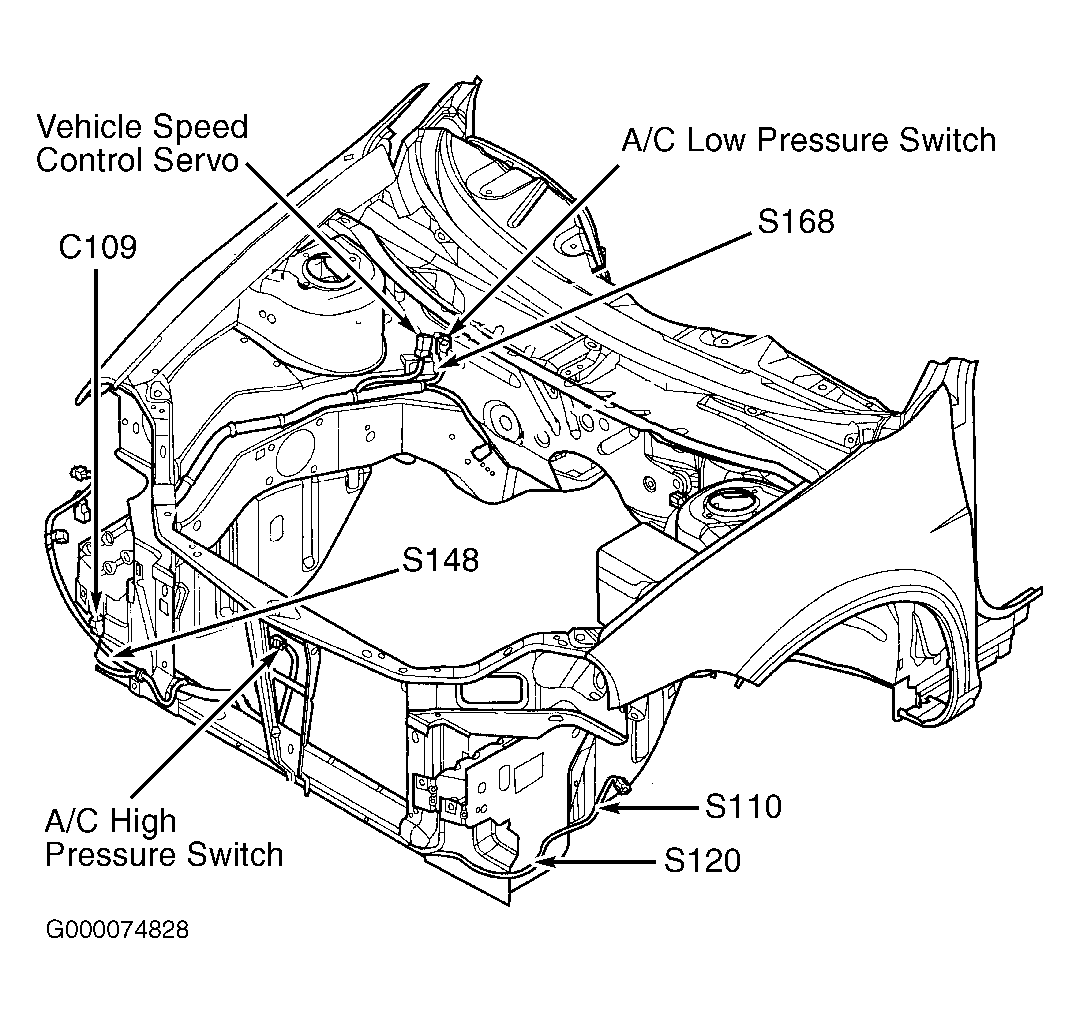

Fig 3: Engine Compartment
G00074828Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Left Side Of Engine Compartment
G00074829Courtesy of DAIMLERCHRYSLER CORP.

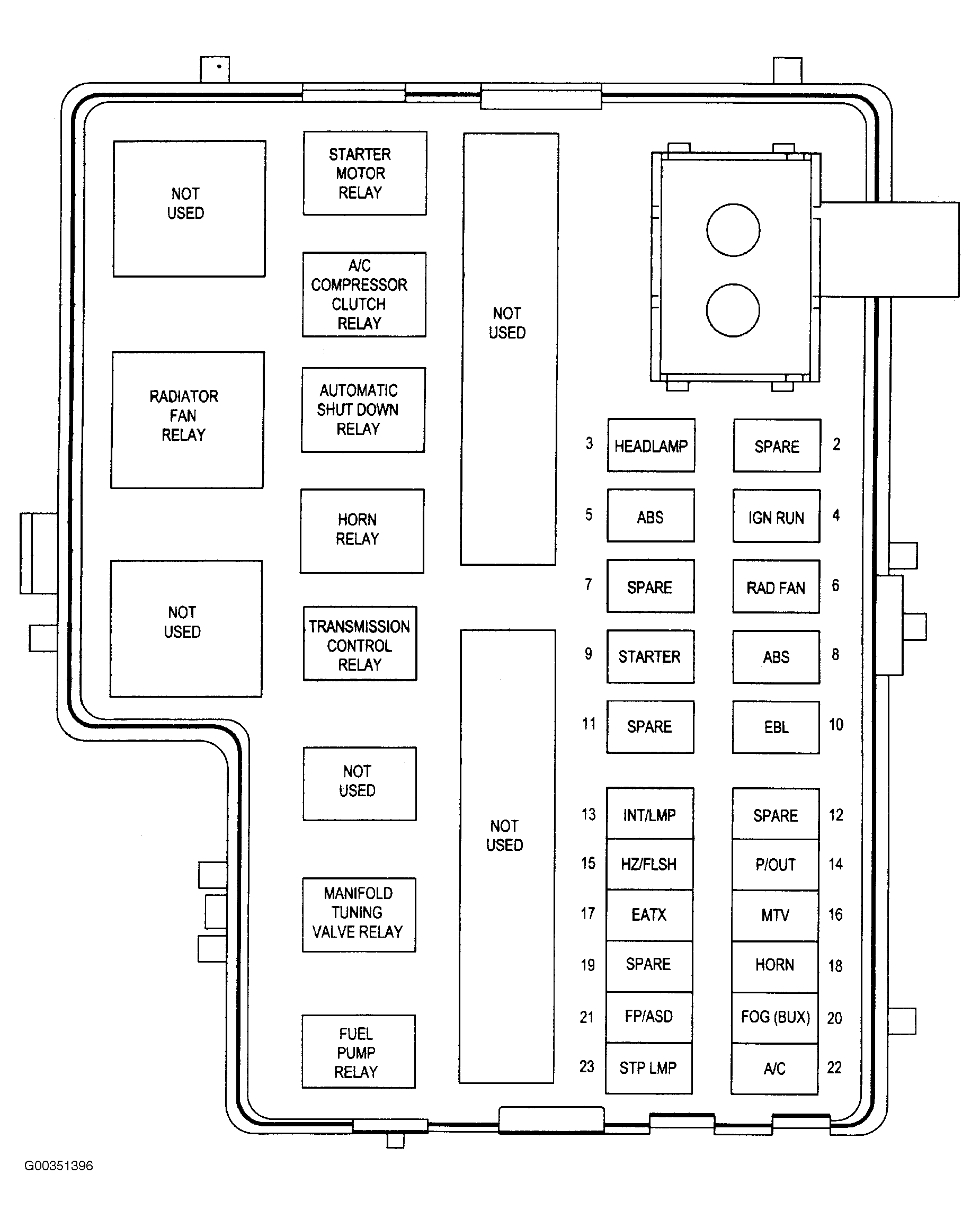

Fig 5: Power Distribution Center
G00351396Courtesy of DAIMLERCHRYSLER CORP.
