Engine Mount Bracket: Installation

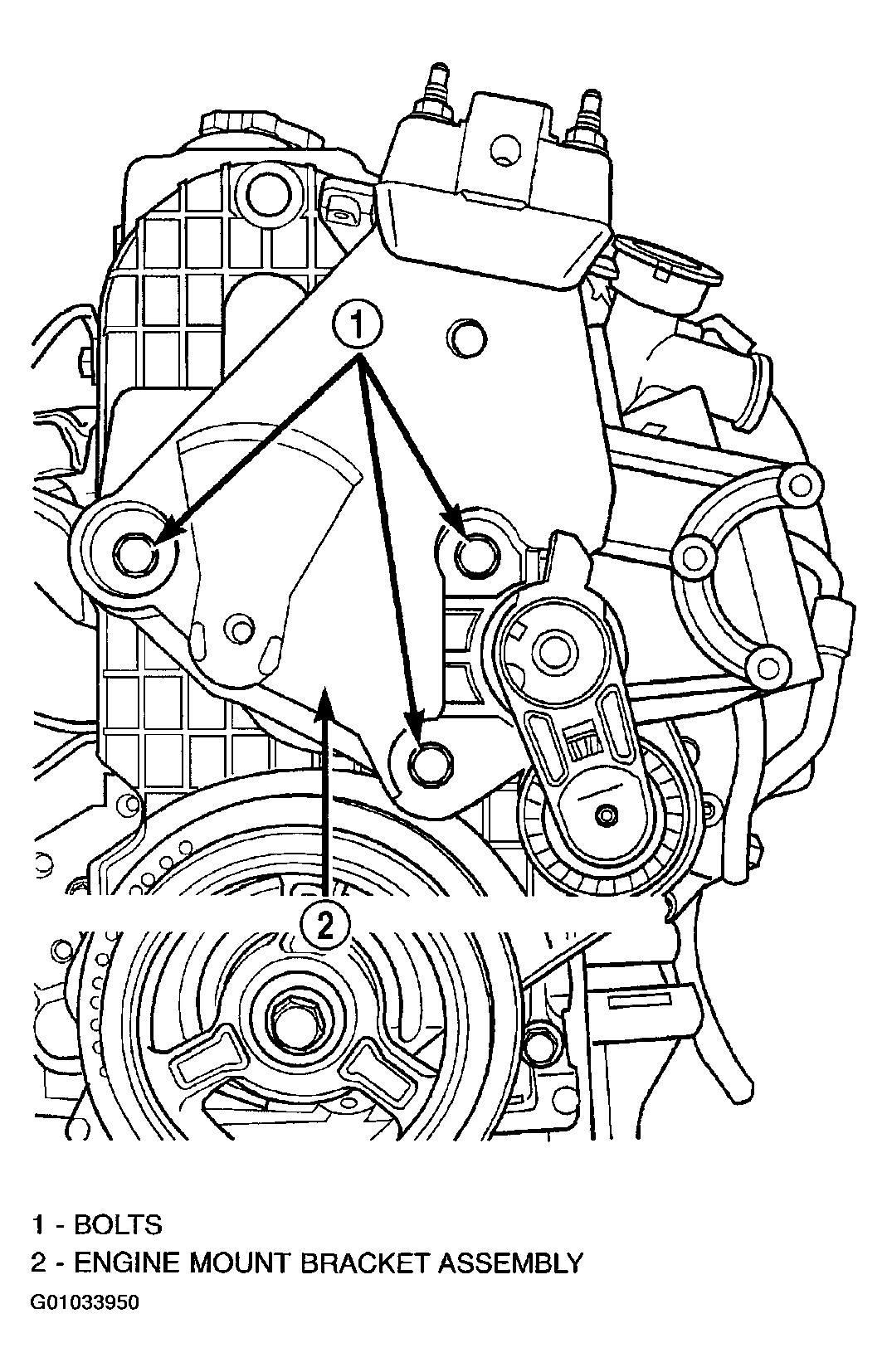

  1. Position engine mount bracket to its mounting location. Hand start the upper two bolts of the engine mount bracket. (Figure).
  2. Lower engine with jack.
  3. Install lower engine mount bracket bolt. Tighten bolt to 61 N.m (45 ft. lbs.). (Figure).
  4. Raise engine with jack.
  5. Tighten upper engine mount bracket bolts to 61 N.m (45 ft. lbs.). (Figure).
  6. Install power steering pump fasteners.
  7. Lower engine with jack.

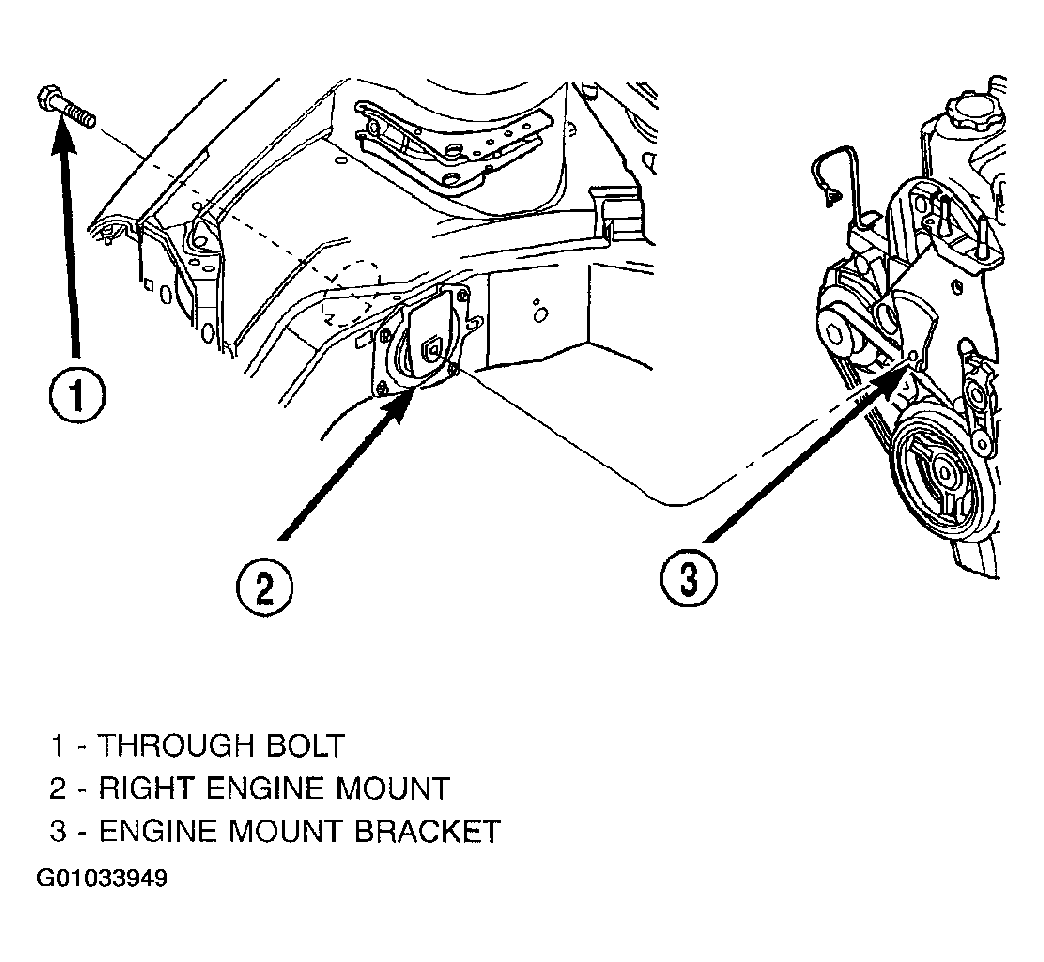

  8. Install right engine mount to engine mount bracket through bolt. Tighten bolt to 118 N.m (87 ft. lbs.). (Figure).

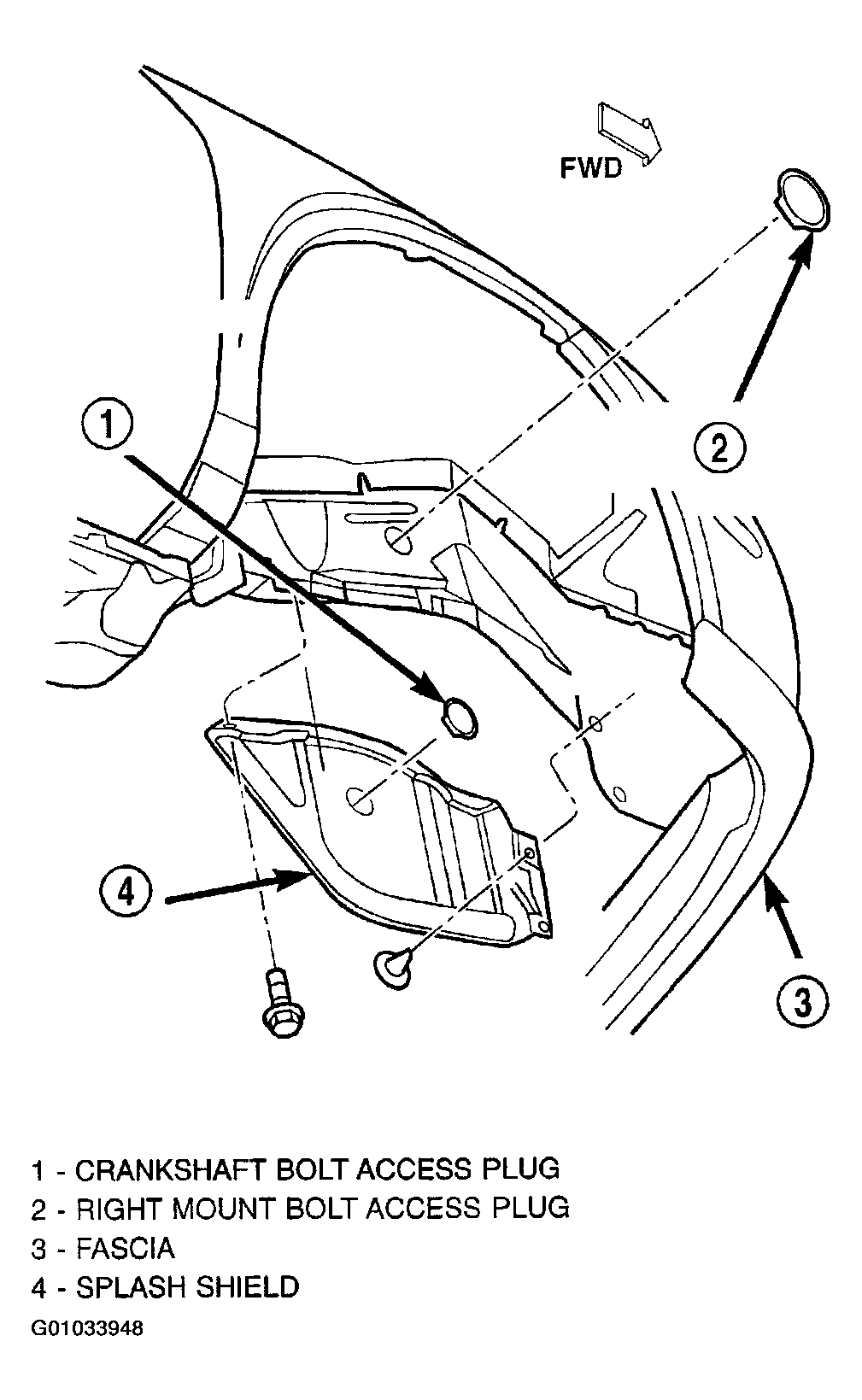

  9. Install mount bolt access plug. (Figure).
  10. Remove jack from under engine.
  11. Raise vehicle on hoist.
  12. Install lower torque strut. (Refer to TORQUE STRUT ).
  13. Install power steering/air conditioning compressor drive belt. (Refer to COOLING SYSTEMS ).
  14. Install accessory drive belt splash shield. (Figure).
  15. Lower vehicle.
  16. Install upper torque strut. (Refer to TORQUE STRUT ).
  17. Install fastener securing ground strap to engine mount bracket.
  18. Connect negative battery cable.
  19. Perform torque strut adjustment procedure. (Refer to ENGINE TORQUE STRUT ADJUSTMENT ).
