Oil Pump: Assembly

  1. Assemble oil pump as shown in (Fig 1).

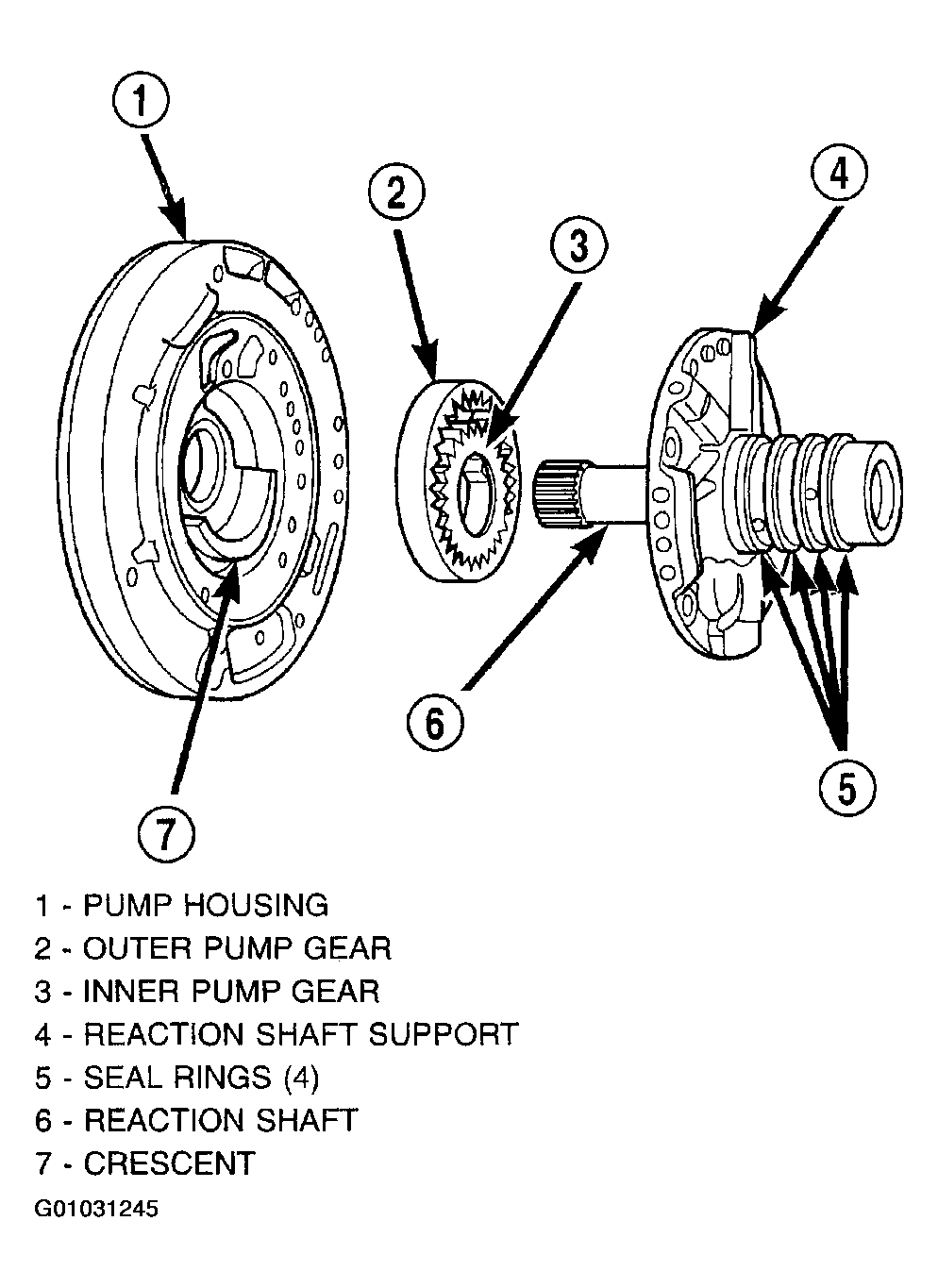

    Fig 1: Assembling Oil Pump Assembly
    G01031245Courtesy of DAIMLERCHRYSLER CORP.
  2. Install and torque reaction shaft support-to-oil pump housing bolts to 28 N.m (20 ft. lbs.).
