Brake Transmission Shift Interlock System: Adjustment

Loosen set screw and remove knob from shifter handle. (Fig 1).

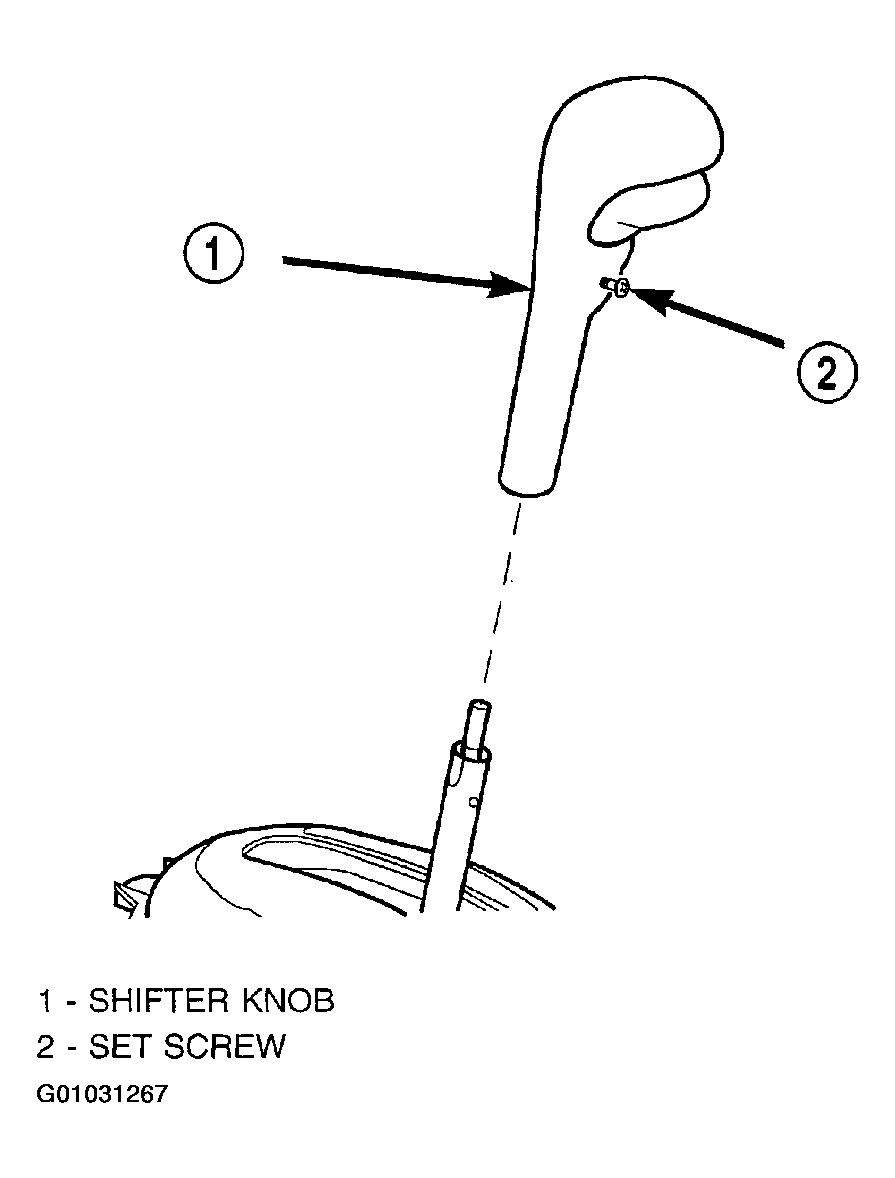

Fig 1: Removing/Installing Gearshift Knob
Courtesy of DAIMLERCHRYSLER CORP.
Remove the center console assembly as shown in (Fig 2).

Fig 2: Removing/Installing Center Console Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Remove shifter bezel. (Fig 3).

Fig 3: Removing/Installing Shifter Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Adjust interlock cable/system as follows: Pry up on cable adjuster lock to release and allow cable to "self-adjust". Lock cable adjustment by pressing down on the adjuster lock until bottomed at the cable housing.
Verify correct system operation.
Install shifter bezel. (Fig 3).
Install center console assembly. (Fig 2).
Install gearshift knob and tighten set screw to 2 N.m (15 in. lbs.). (Fig 1).
