Radiator DRAINCOCK: Removal

  1. Drain the cooling system. Refer to STANDARD PROCEDURE .
  2. Turn the draincock stem counterclockwise to unscrew the stem. When the stem is unscrewed to the end of the threads, pull the stem from the radiator tank. (Fig 1).

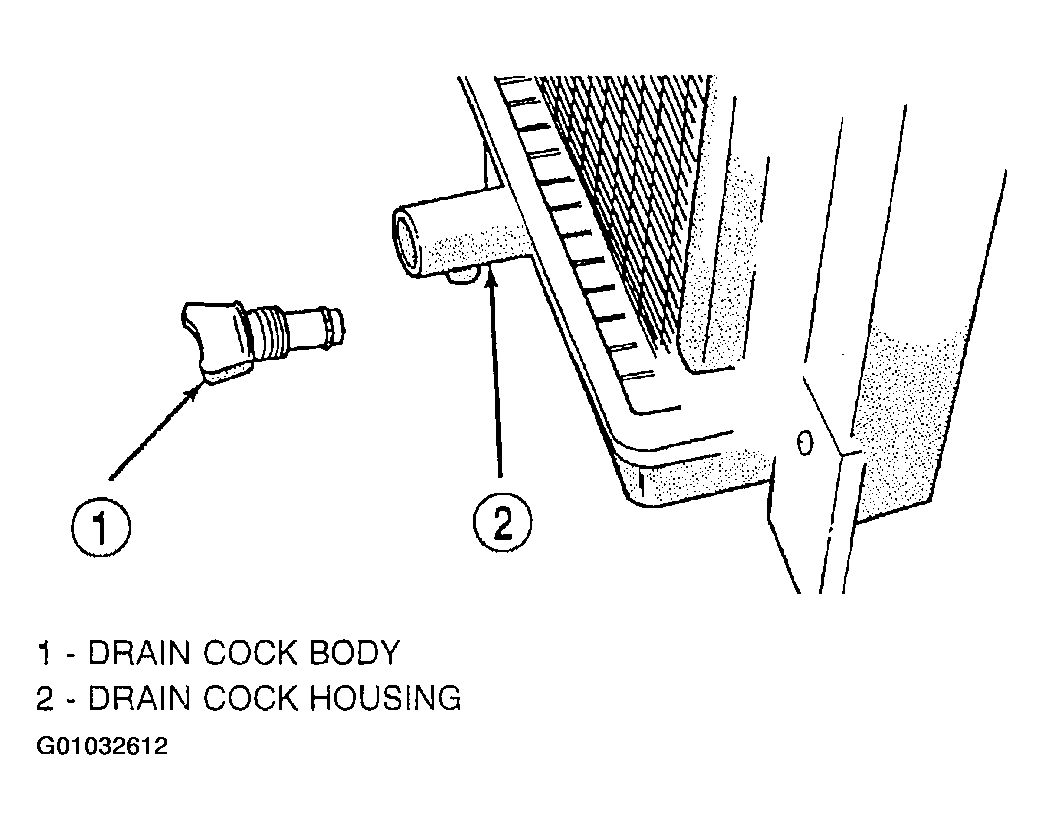

    Fig 1: Removing/Installing Draincock
    G01032612Courtesy of DAIMLERCHRYSLER CORP.
