Component Locations

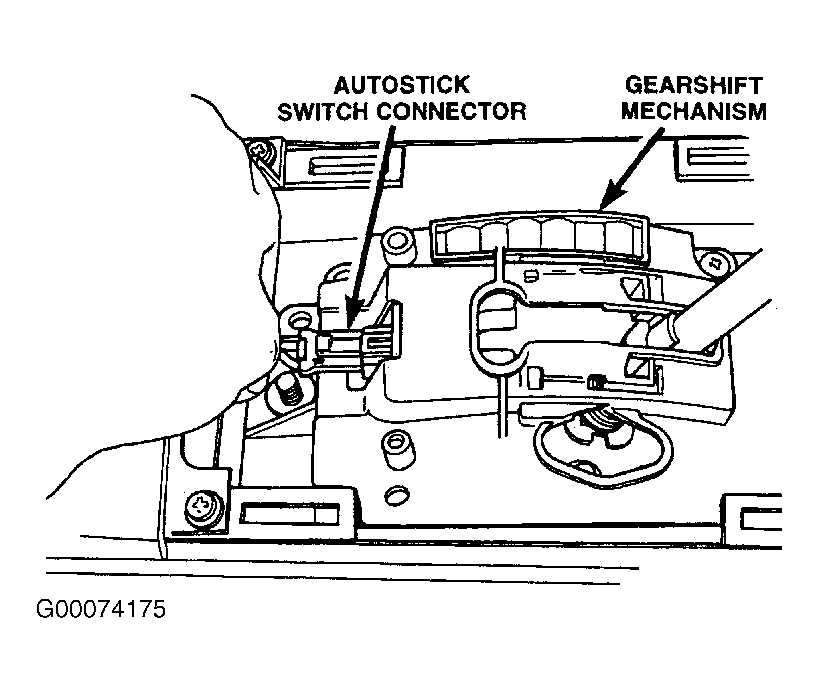

Fig 1: Locating Autostick Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

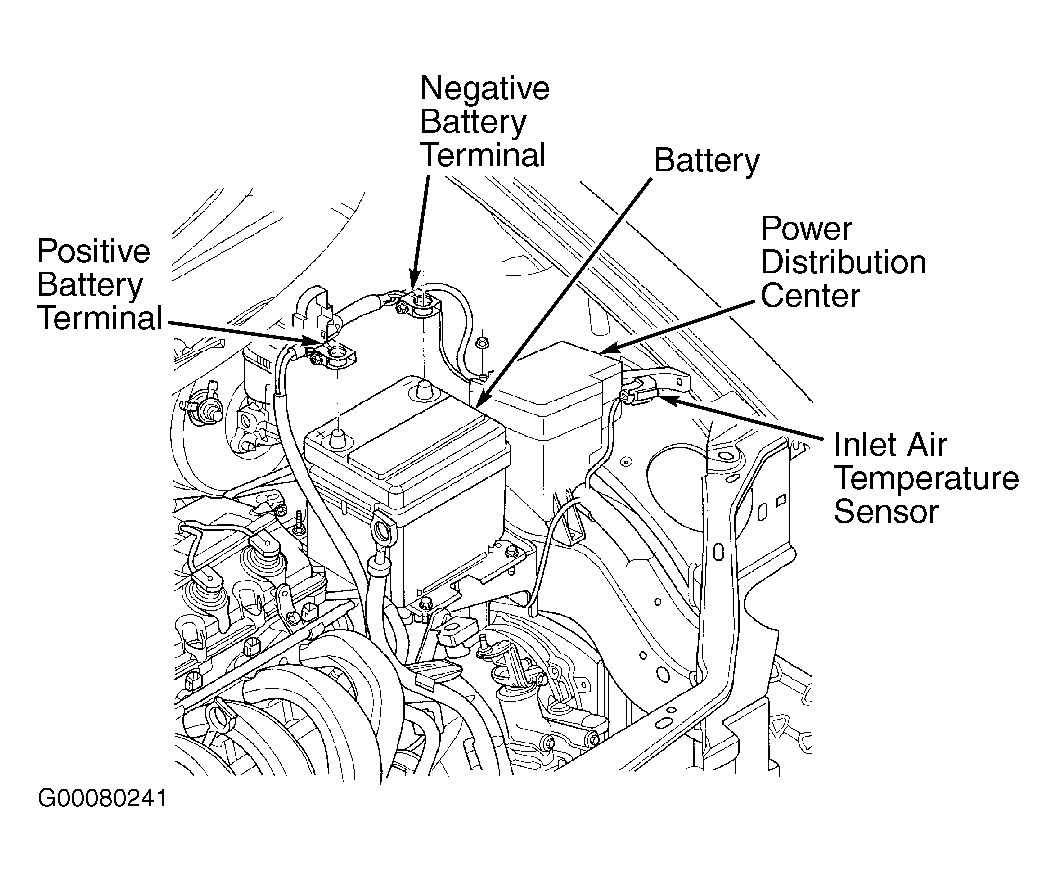

Fig 2: Locating Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORPORATION

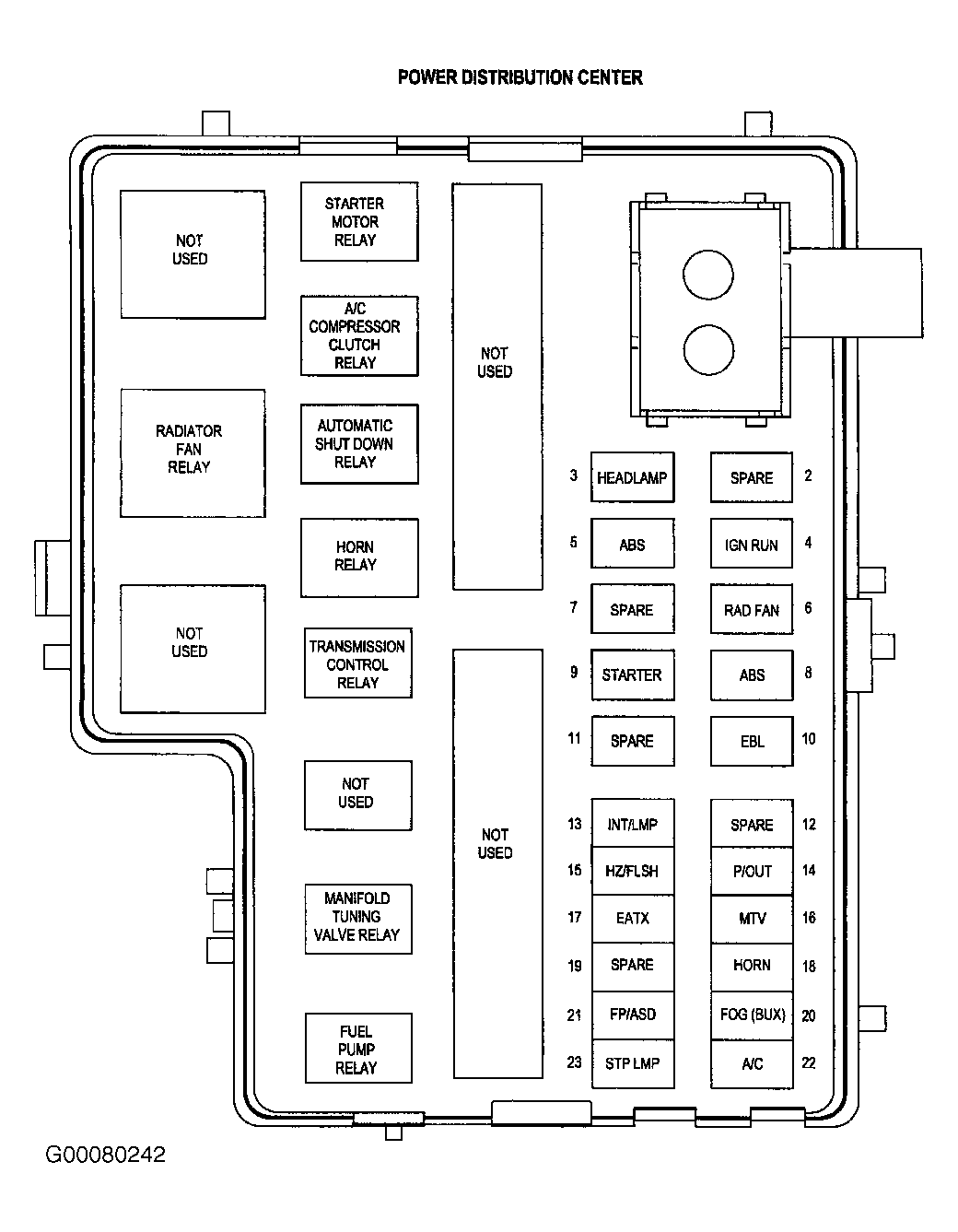

Fig 3: Identifying Power Distribution Center Relays

Courtesy of DAIMLERCHRYSLER CORPORATION

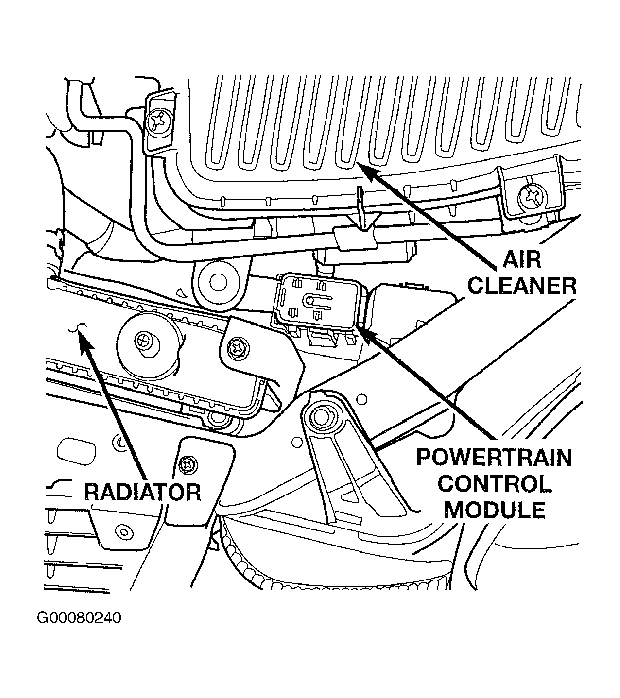

Fig 4: Locating Powertrain Control Module

Courtesy of DAIMLERCHRYSLER CORPORATION

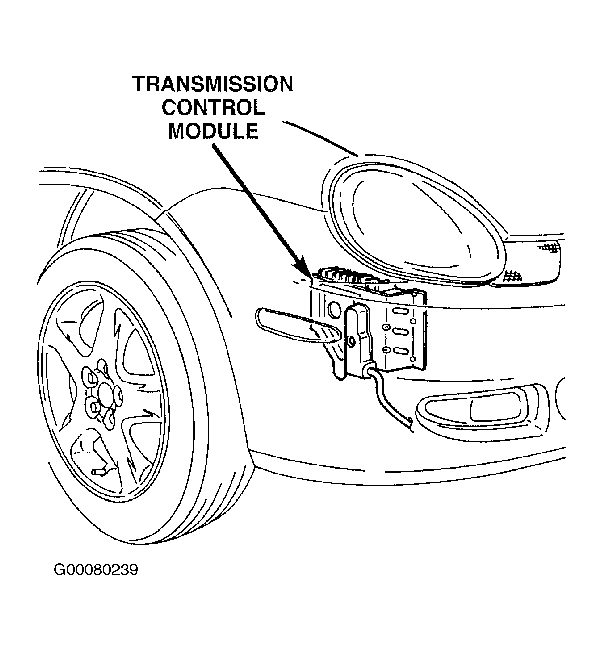

Fig 5: Locating Transmission Control Module

Courtesy of DAIMLERCHRYSLER CORPORATION
