Generator Harness Connector End View

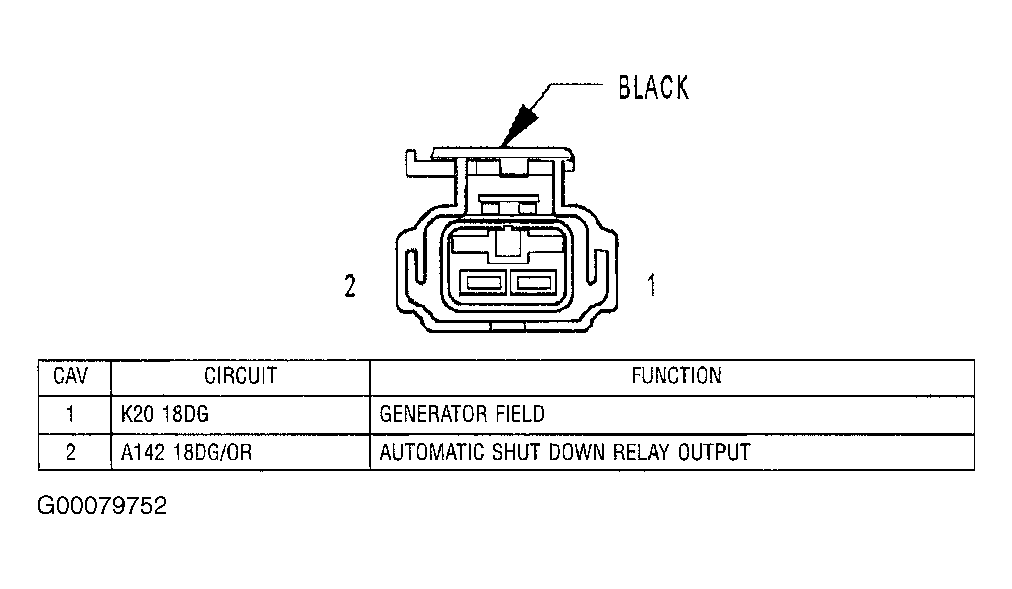

Fig 1: Identifying Generator Harness Connector Terminals

G00079752

Courtesy of DAIMLERCHRYSLER CORPORATION
