Knock Sensor Harness Connector End View
Knock Sensor Harness Connector End View

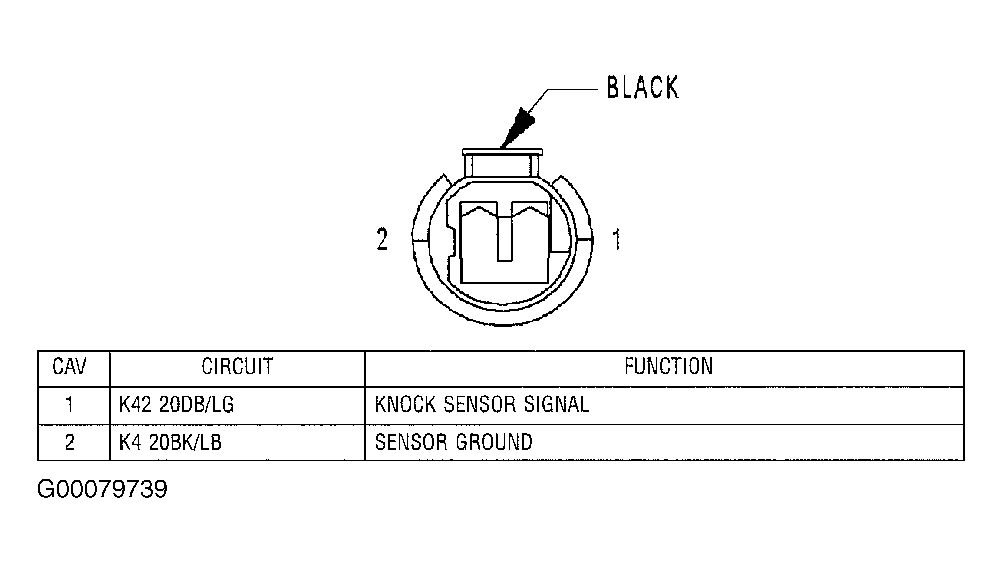

Fig 1: Identifying Knock Sensor Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
