Connector Identification
>>
Sentry Key Immobilizer Module Harness Connector End View
Sentry Key Immobilizer Module Harness Connector End View

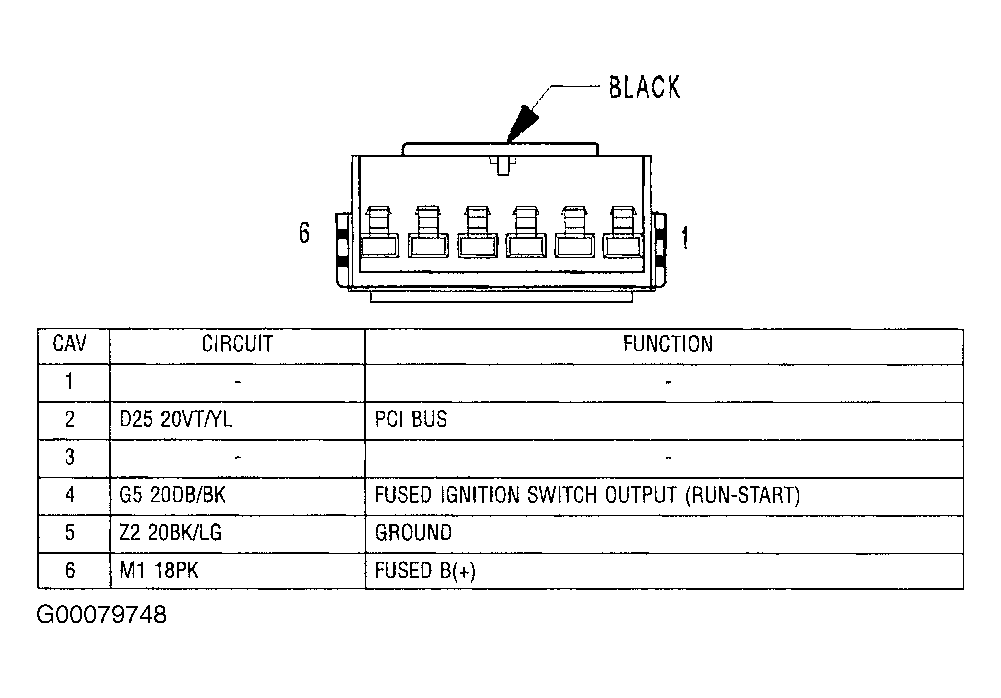

Fig 1: Identifying Sentry Key Immobilizer Module Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
