Component Locations
WARNING: This page is about a different car, the 2002 Dodge Ram Wagon, 2002 Dodge Ram Van, 2001 Dodge Ram Wagon, and 2001 Dodge Ram Van. However, it is still accessible from the selected car via links, so may be relevant.

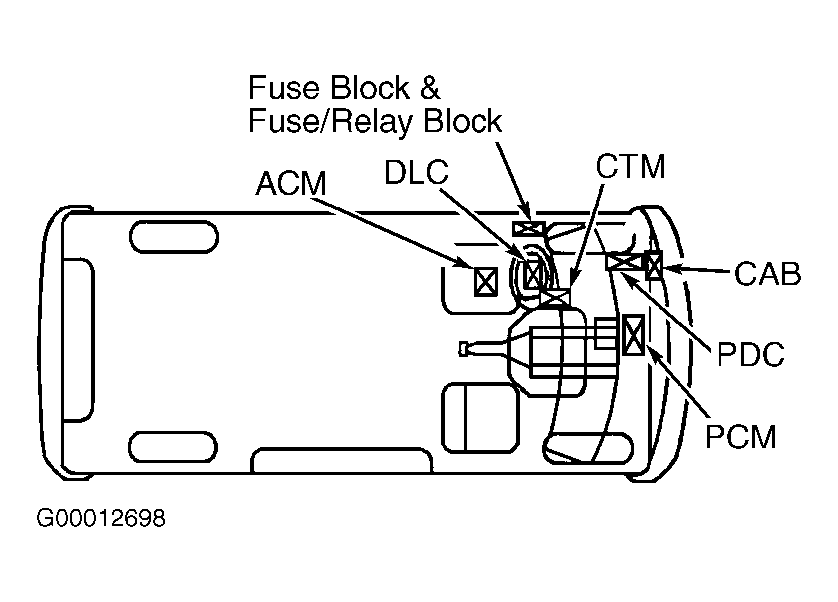

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Air Bag Control Module | On Bracket, Under Driver's Seat |
| Central Timer Module | Under Instrument Panel, On Left Center Support |
| Controller Anti-Lock Brake Module | On Top Of Hydraulic Control Unit Under Battery Tray |
| Data Link Connector | On Bottom Of Instrument Panel, To Left Of Steering Column |
| Fuse Block | On Left Instrument Panel End Bracket |
| Fuse/Relay Block | On Left Instrument Panel End Bracket |
| Hydraulic Control Unit | Under Battery Tray |
| Joint Connector No. 3 | Behind Left Side Of Instrument Panel |
| Key-In Ignition Switch Connector | On Right Side Of Steering Column, Next To Ignition Switch |
| Power Distribution Center | Next To Battery |
| Powertrain Control Module | On Firewall, Next To Wiper Motor |
| Wiper Motor Connector | On Bottom Of Wiper Motor, In Engine Compartment |
| Wiper Relay | Behind Top Of Glove Box |
