Clutch System: Clutch: Description: Notes

The clutch hydraulic system (Fig 1Fig 2 ) consists of a clutch master cylinder and integral reservoir, a clutch slave cylinder and integral damper, and an interconnecting fluid line. LHD models have an adjustable pedal pushrod.

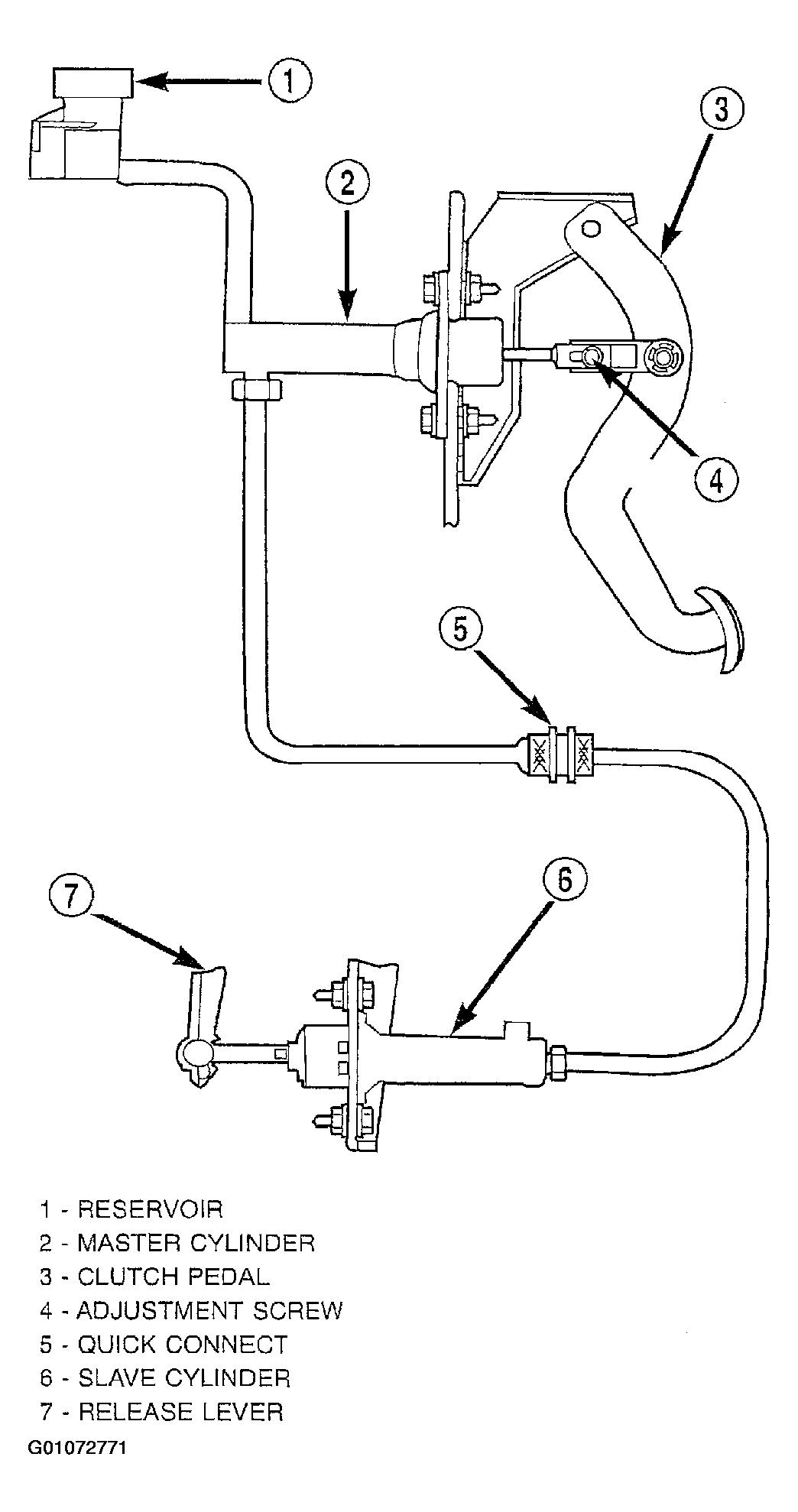

Fig 1: Identifying Clutch Hydraulic System Components- LHD

Courtesy of DAIMLERCHRYSLER CORP.

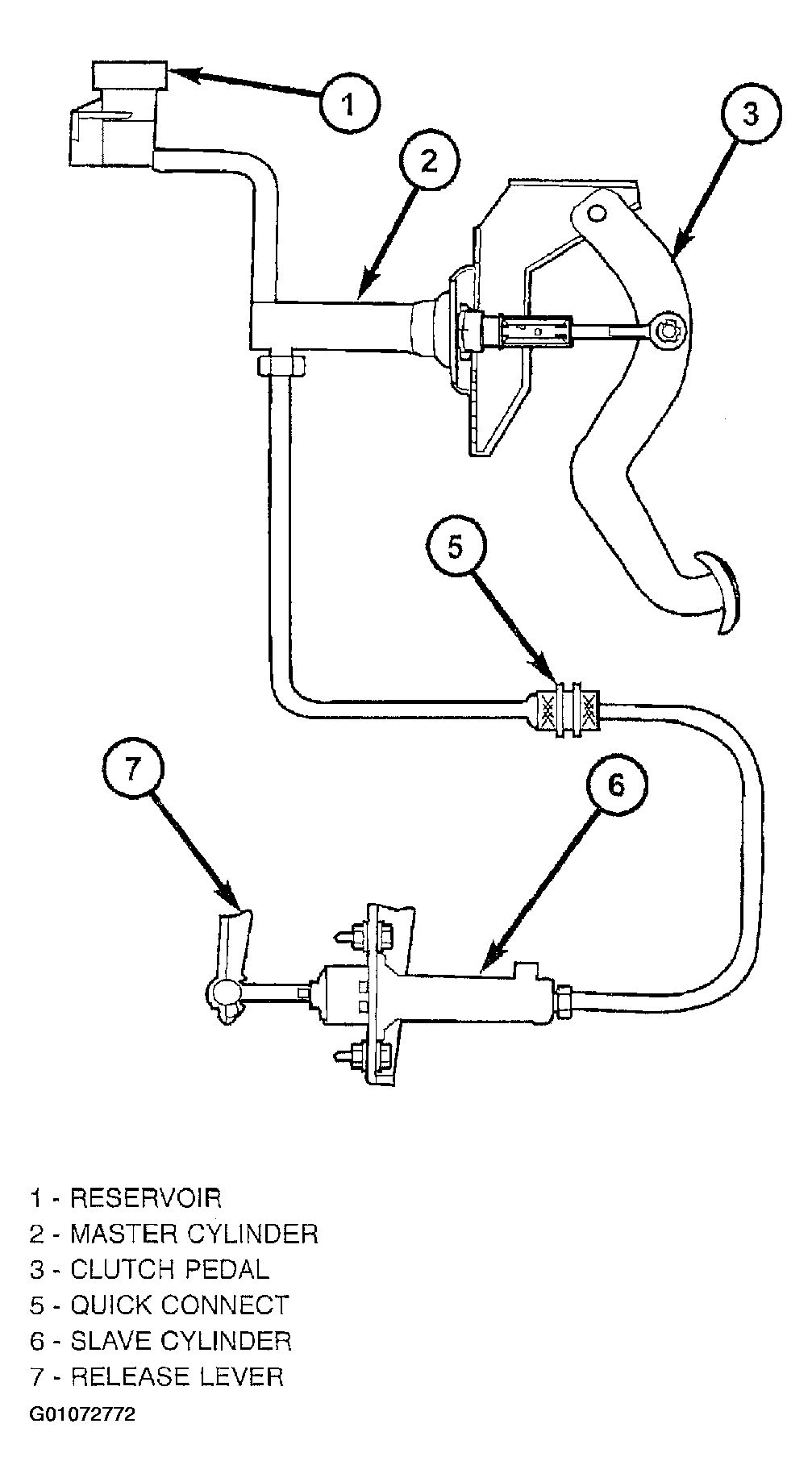

Fig 2: Identifying Clutch Hydraulic System Components - RHD

Courtesy of DAIMLERCHRYSLER CORP.
