Modular Clutch: Description

The modular clutch assembly (Fig 1 ) is located between the engine and manual transaxle in the transaxle bellhousing, and is serviced only as an assembly. The modular clutch assembly is a self-adjusting design and consists of the following components:

• Flywheel
• Clutch Disc
• Pressure Plate
• Diaphragm Spring
• Adjusting Ring
• Sensor
• Cover

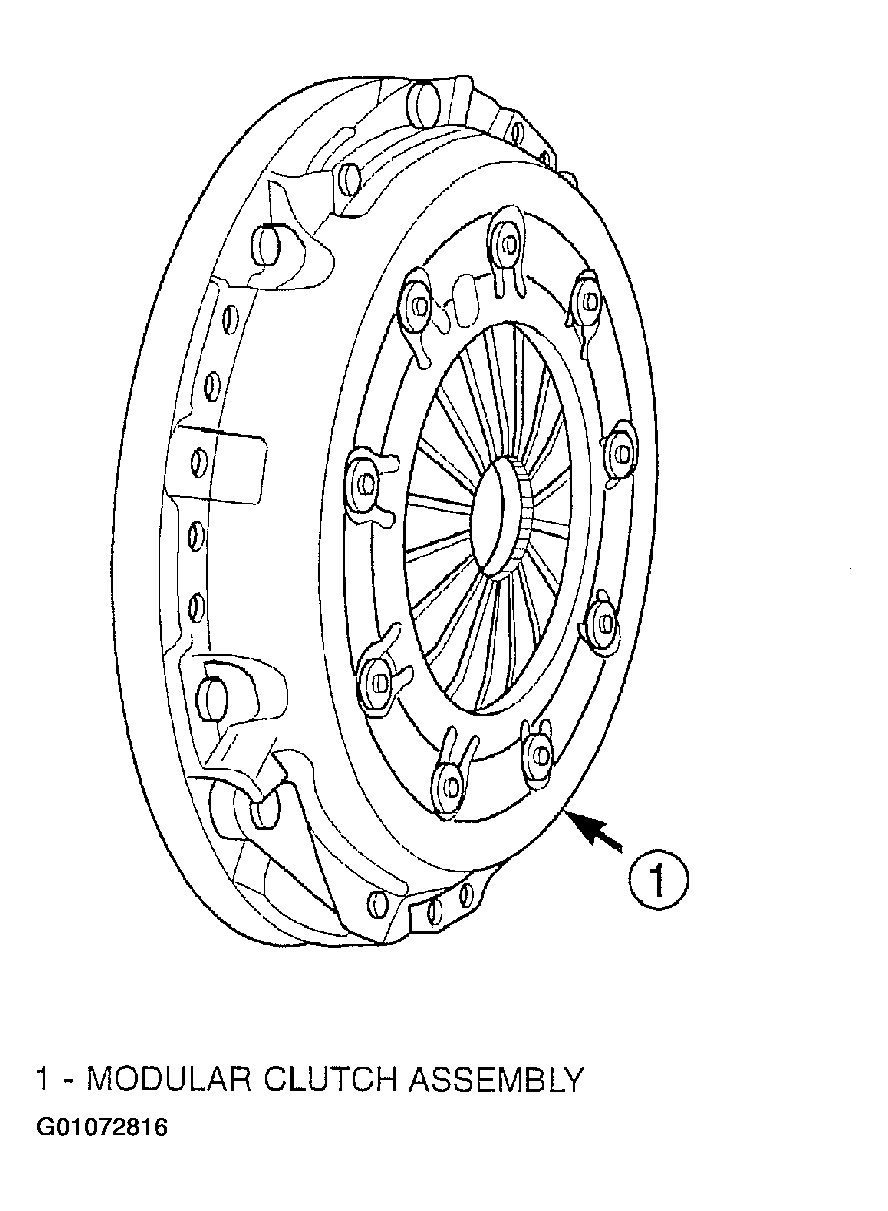

Fig 1: Identifying Modular Clutch Assembly

Courtesy of DAIMLERCHRYSLER CORP.
