Remote Keyless Entry Module Connector End View Terminals

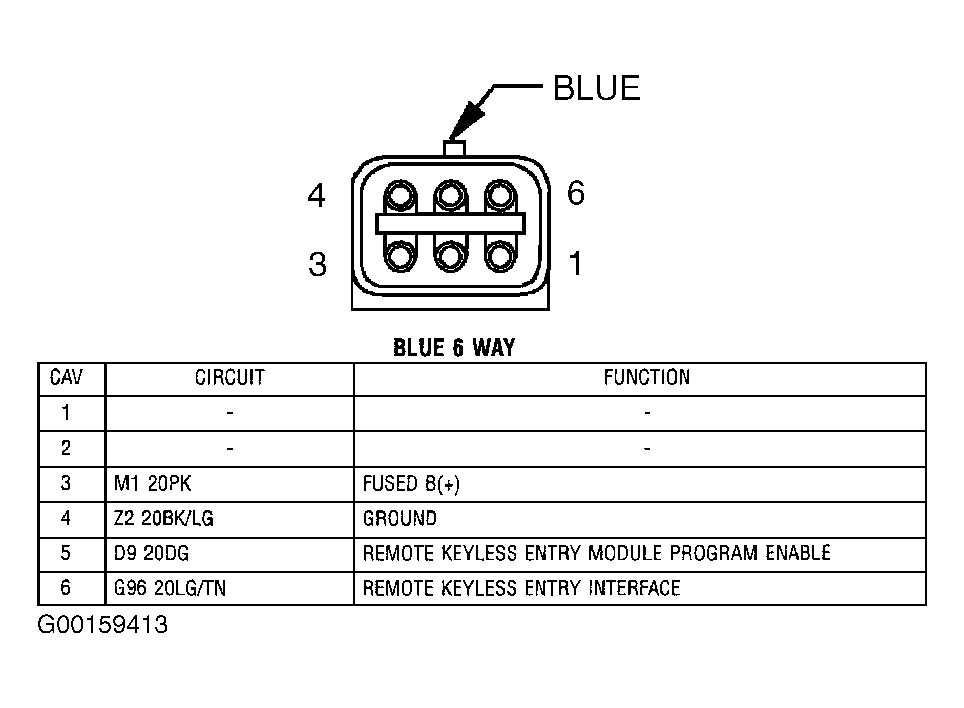

Fig 1: Remote Keyless Entry Module Connector End View Terminals

G00159413

Courtesy of CHRYSLER GROUP, LLC
