Body Control Module C2 - Natural 40 Way

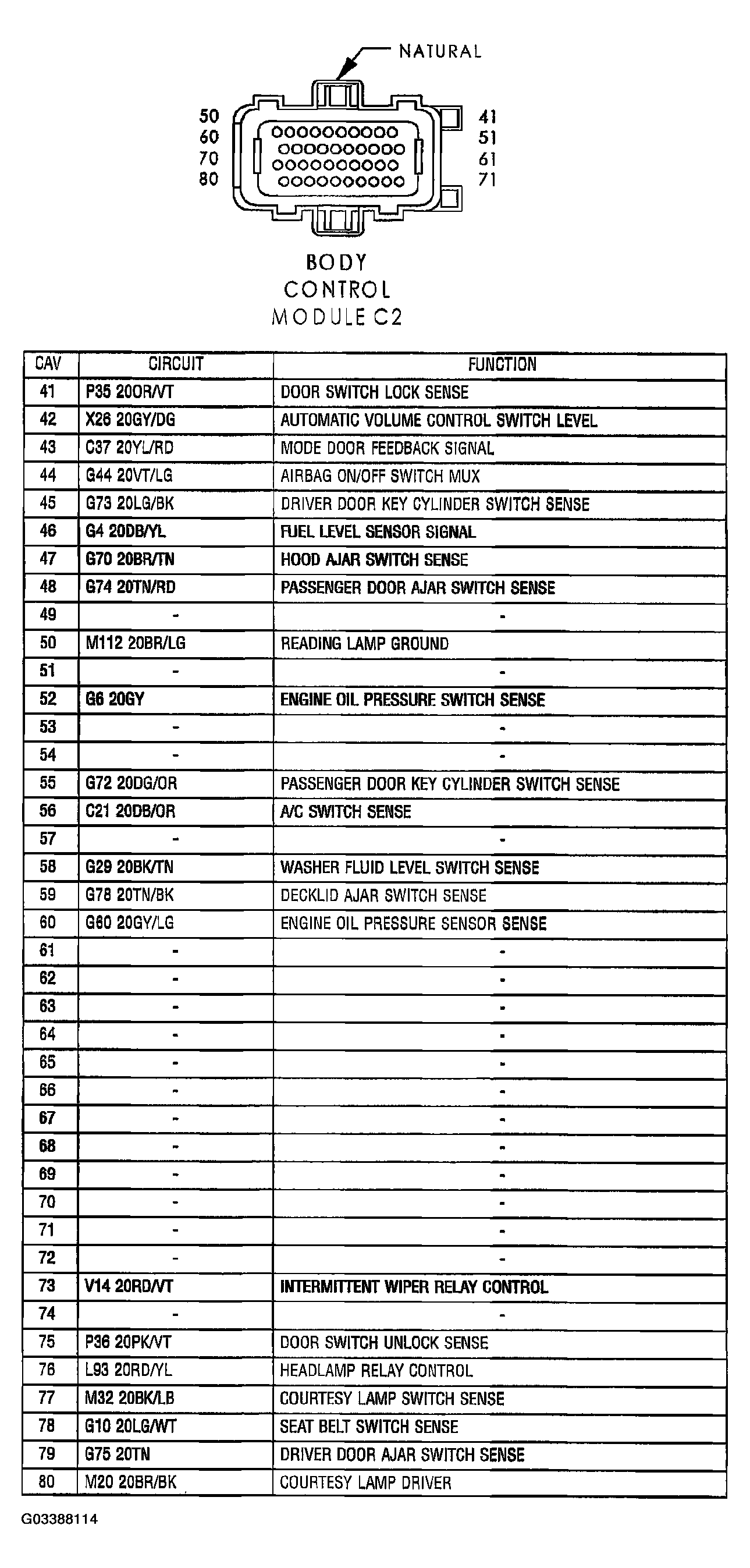

Fig 1: Identifying Body Control Module C2 Connector

G03388114

Courtesy of DAIMLERCHRYSLER CORP.
