Powertrain Control Module C1 - Gray 40 Way

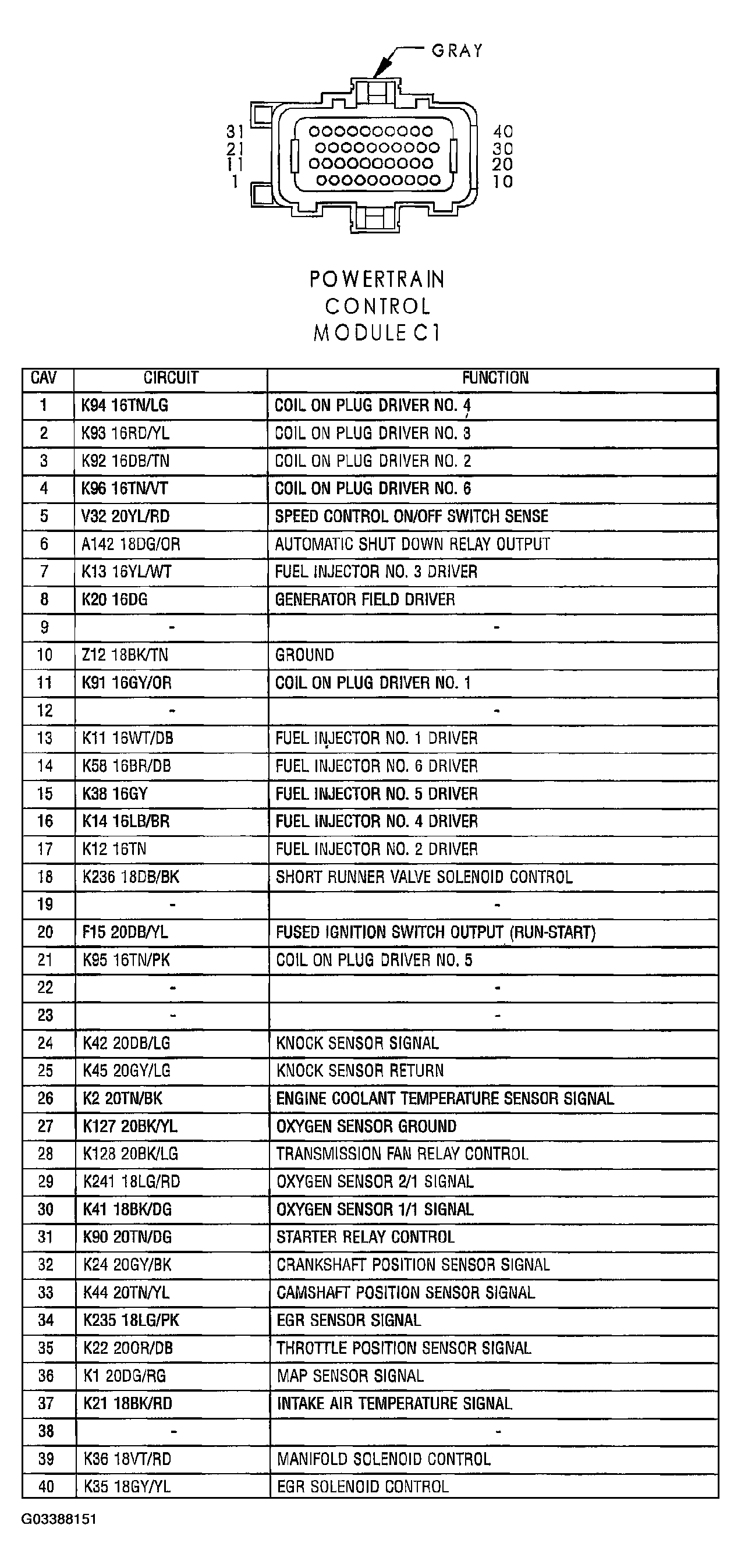

Fig 1: Identifying Powertrain Control Module C1 Connector

G03388151

Courtesy of DAIMLERCHRYSLER CORP.
