Power Window Switch

Remove window switch from door trim panel. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check switch continuity. See appropriate WINDOW SWITCH CONTINUITY table. See Fig 1 or Fig 2 .
If the results are NOT OK, replace the drivers side window lift switch.
Test passenger door switch for continuity.
If the results are not OK, replace the switch. The power window master switch has a Auto-Down feature. The switch is equipped with 2 detent positions when actuating the power window OPEN. The first detent position allows the window to roll down and stop when the switch is released. The second detent position actuates an integral express roll down relay that rolls the window down after the switch is released. When the express down circuit senses stall current (window has reached end of down travel), the switch will turn current off to the motor. The AUTO feature can be cancelled by actuating the switch UP or DOWN while window is in motion. If the electronic circuit in the switch fails to detect a stall current, the auto down circuit will time out within 9 to 13 seconds.

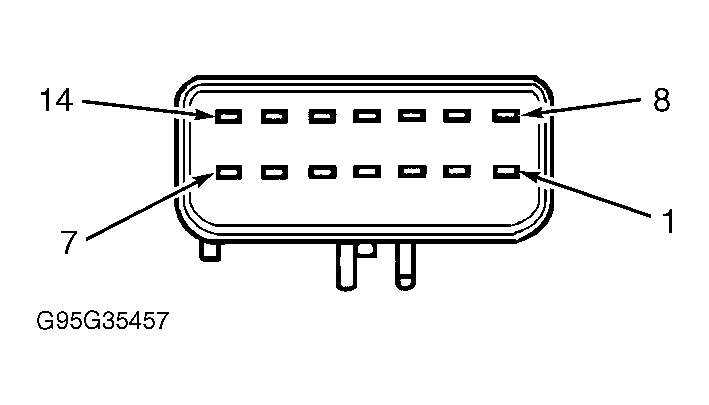

Fig 1: Identifying Driver's Window Switch Terminals

Courtesy of CHRYSLER CORP.

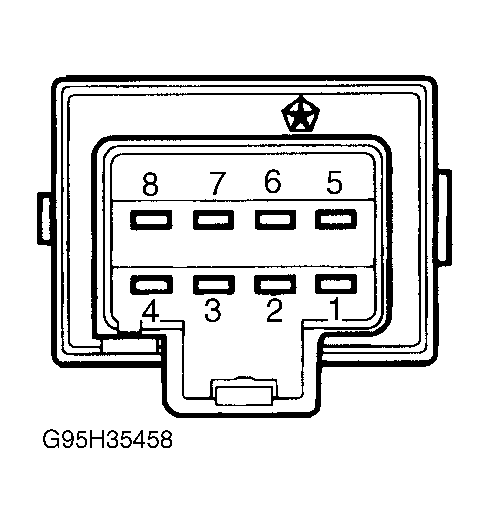

Fig 2: Identifying Passenger's Window Switch & Vent Switch Terminals

Courtesy of CHRYSLER CORP.

DRIVER'S WINDOW SWITCH CONTINUITY

Switch Position

Continuity Between Terminals No.

Off

1 & 13; 2 & 13; 3 & 13; 4 & 13; 5 & 13; 6 & 13; 7 & 13; 8 & 13

Driver's Side

8 & 11

Passenger's Side

4 & 9

Down

Driver's Side ⁽¹⁾

6 & 11

Passenger's Side

2 & 9

Auto Down

Driver's Side ⁽¹⁾

6 & 11

Vent Open

Driver's Side

7 & 11

Passenger's Side

1 & 9

Vent Close

Driver's Side

3 & 9

Passenger's Side

5 & 11

⁽¹⁾	Connect battery voltage to terminal No. 9 and ground to terminal No. 13 before testing.

PASSENGER'S WINDOW SWITCH CONTINUITY

Switch Position	Continuity Between Terminals No.
Off	2 & 5; 3 & 8
Up	1 & 8
Down	1 & 5
