Satellite Receiver Module: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove instrument panel silencer.
  3. Remove mounting fasteners (Fig 1 ).

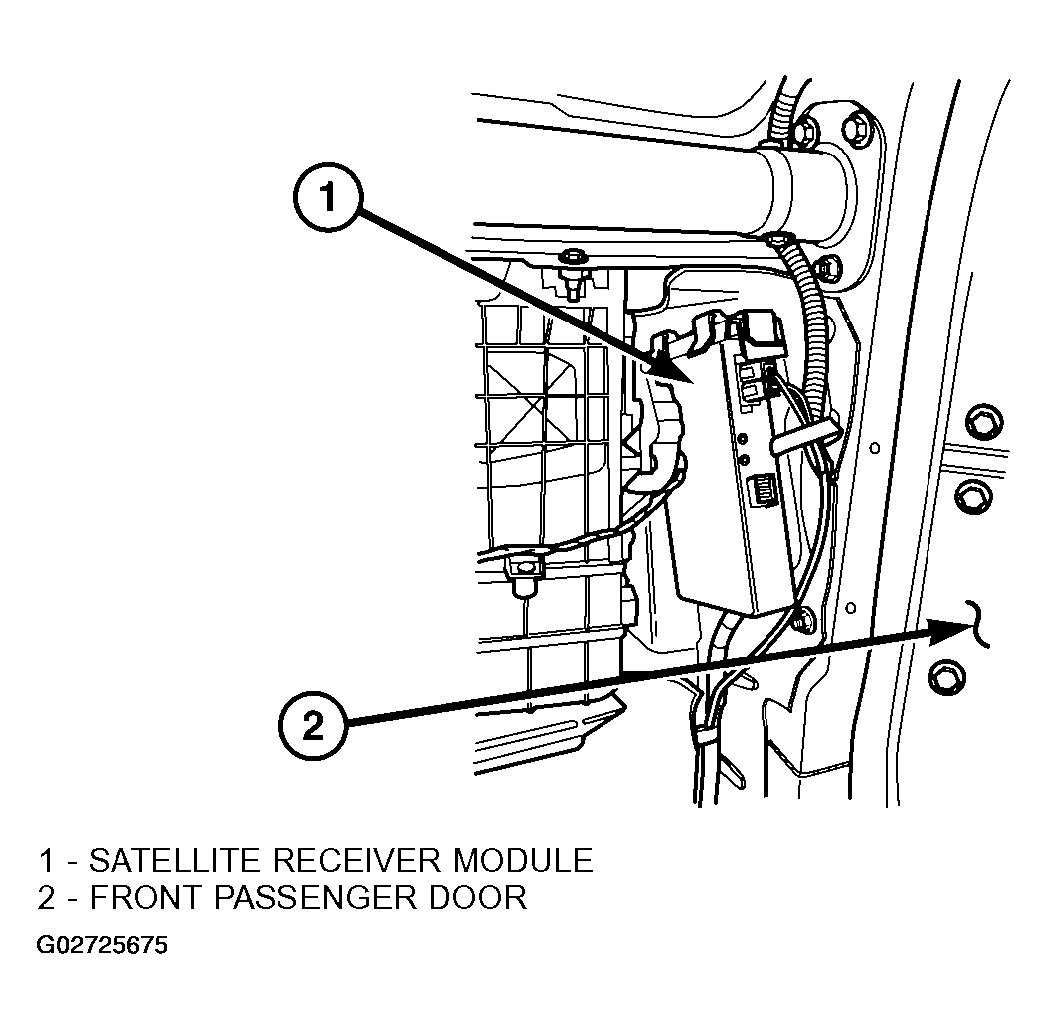

    Fig 1: Removing Mounting Fasteners
    G02725675Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull satellite receiver module inboard, and then downward to remove from upper retaining clips.
  5. Disconnect wiring harness connectors.
  6. Remove satellite receiver module from vehicle.
