Remote Keyless Entry

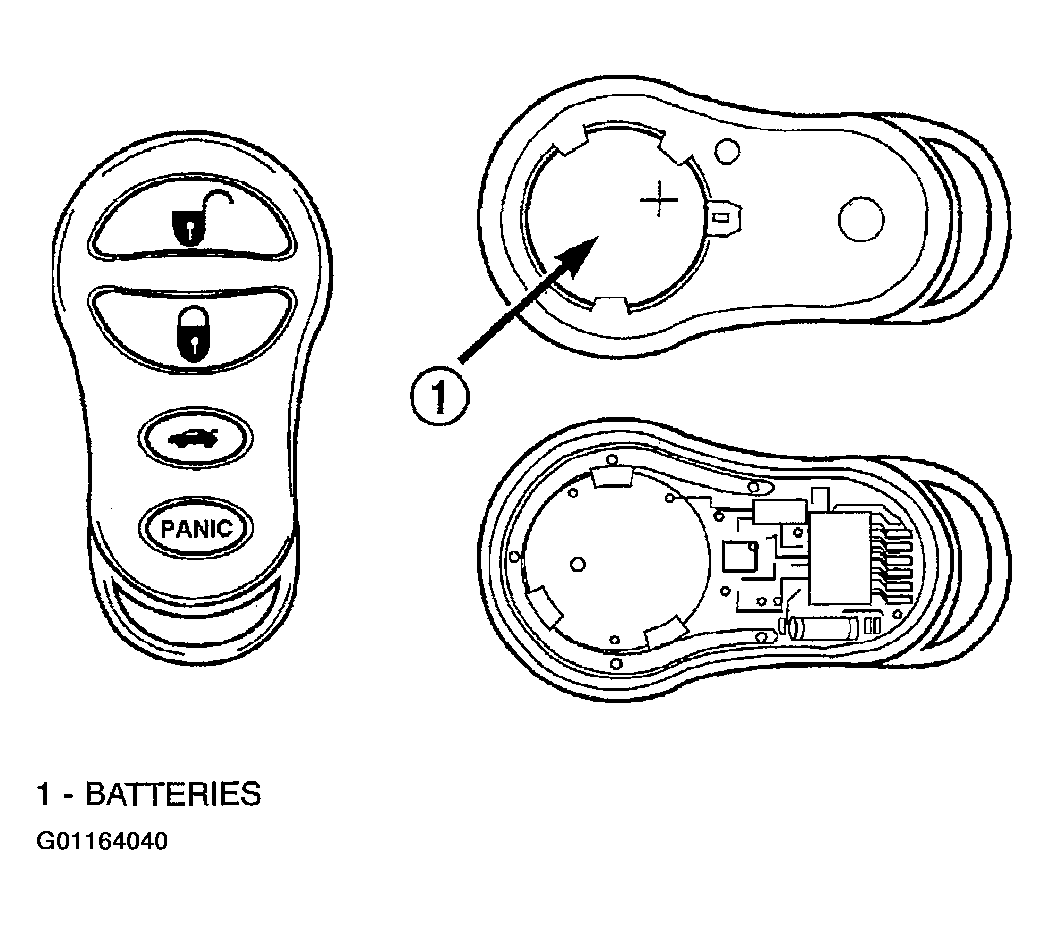

The system allows locking and unlocking of vehicle door(s), deck lid release, and panic by remote control using a hand held radio frequency transmitter (Fig 1 ). The vehicle must be in PARK before the trunk lid can be unlatched with the transmitter.
The receiver may receive signals from up to four transmitters, Each transmitter has its own code, and the code is programmed and stored into receiver memory. If a transmitter is replaced or additional transmitters are added, the codes for all units have to be reprogrammed into the receiver memory. If a receiver module is replaced, the transmitter codes must be stored in to the receiver memory. If a receive module is replaced, the transmitter codes must be stored in the new receiver memory.
