Automatic Temperature Control Head Connector End View

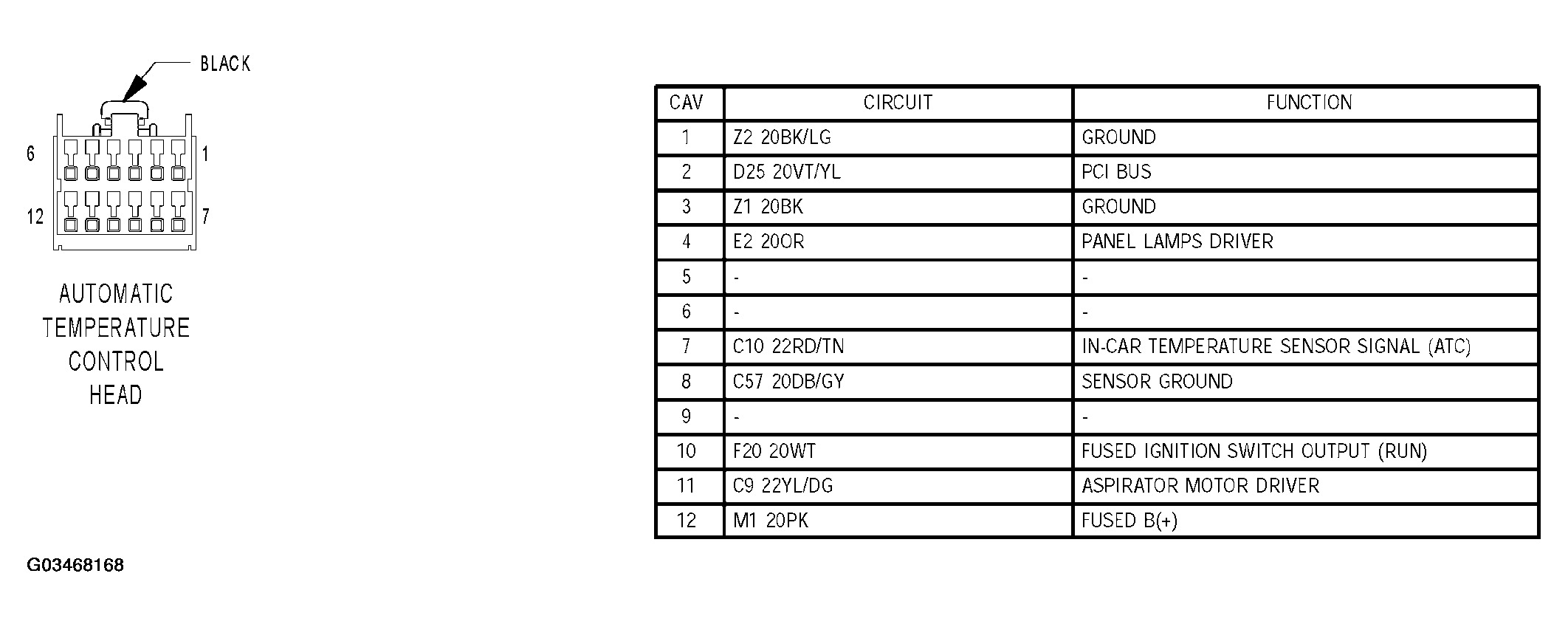

Fig 1: Automatic Temperature Control Head Connector End View

G03468168

Courtesy of DAIMLERCHRYSLER CORP.
