Body Control Module Connector End View (C3)

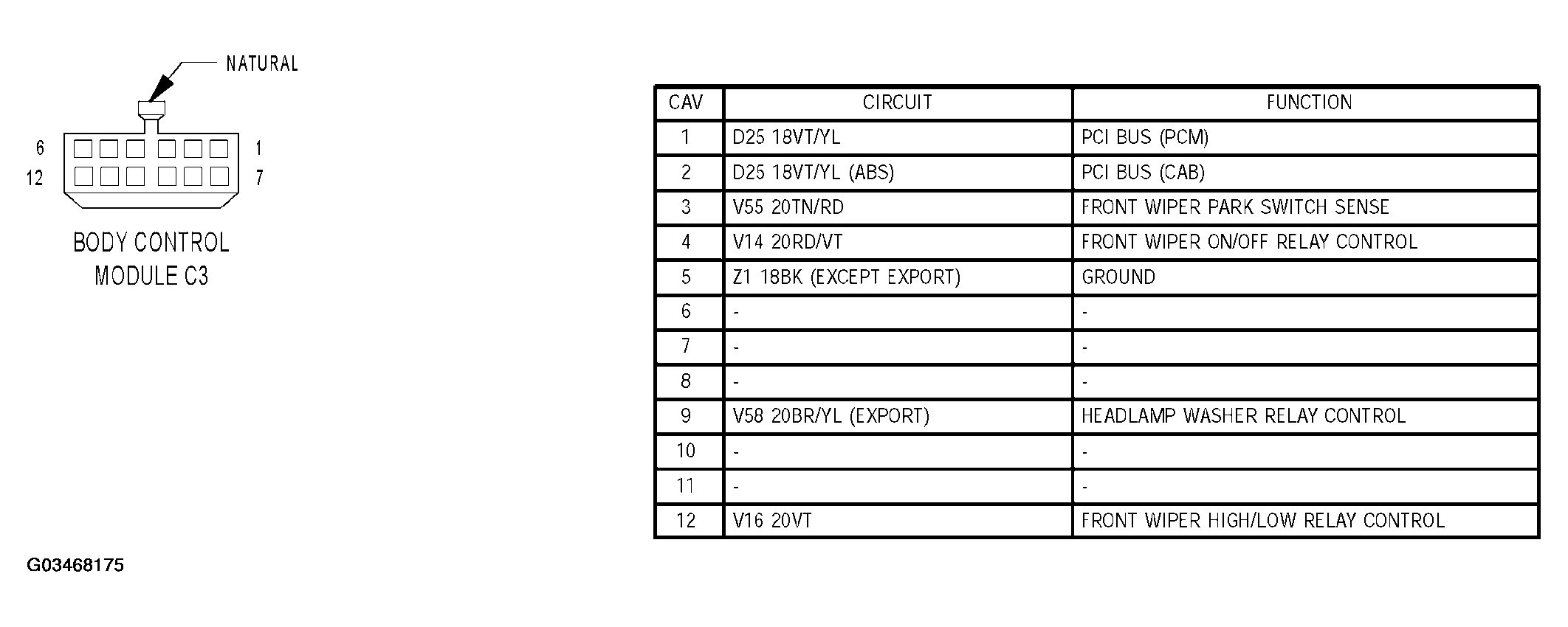

Fig 1: Body Control Module Connector End View (C3)

G03468175

Courtesy of DAIMLERCHRYSLER CORP.
