Combination Flasher Connector End View

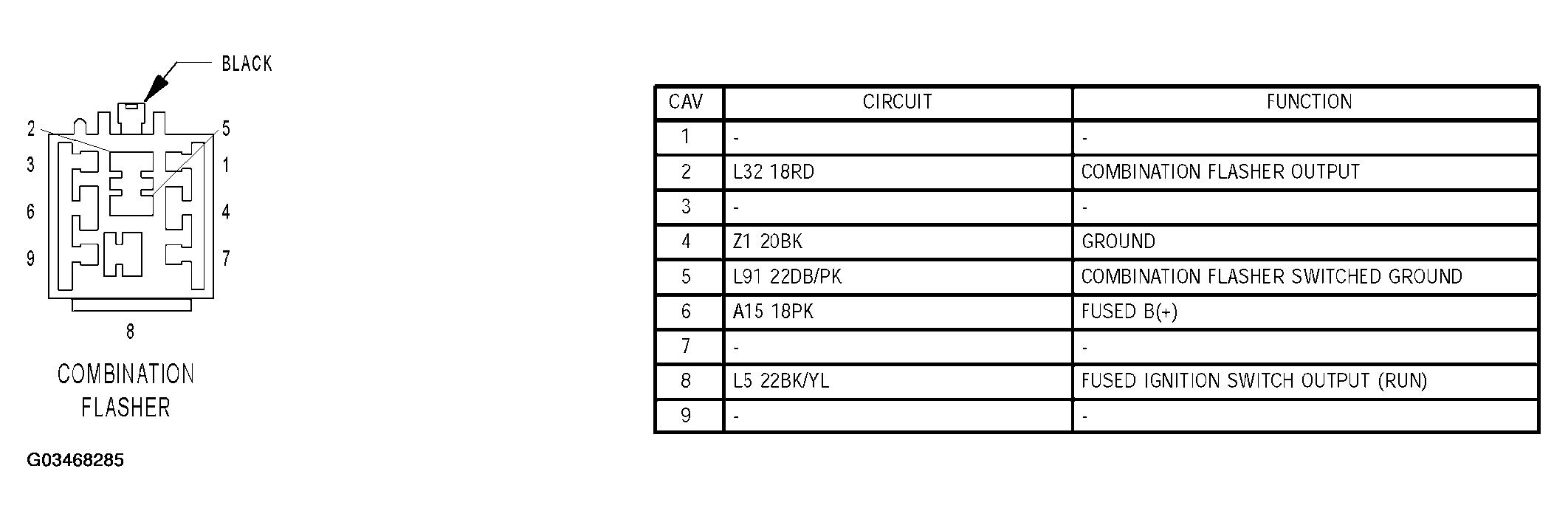

Fig 1: Combination Flasher Connector End View

G03468285

Courtesy of DAIMLERCHRYSLER CORP.
