Left Front Wheel Speed Sensor Connector End View

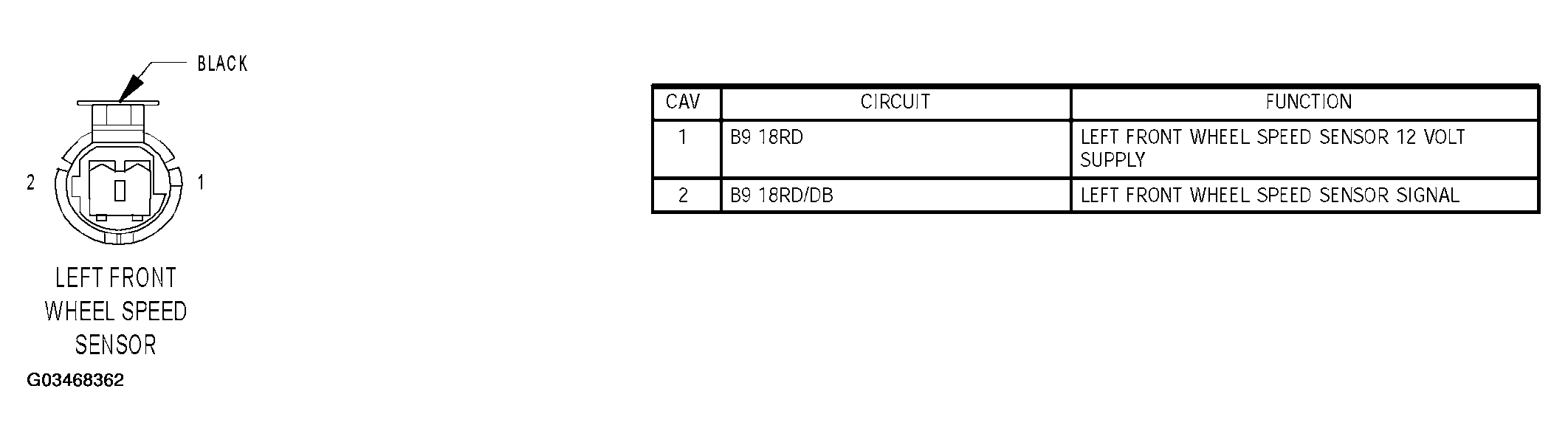

Fig 1: Left Front Wheel Speed Sensor Connector End View

G03468362

Courtesy of DAIMLERCHRYSLER CORP.
