Left Side Impact Airbag Control Module Connector End View

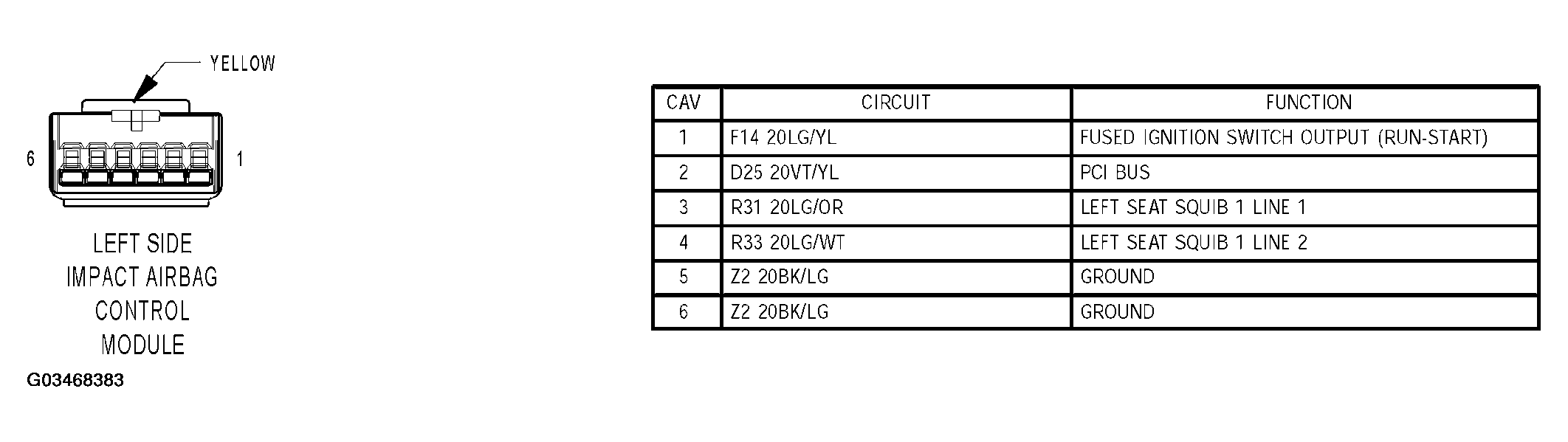

Fig 1: Left Side Impact Airbag Control Module Connector End View

G03468383

Courtesy of DAIMLERCHRYSLER CORP.
