Home >> Chrysler >> 2003 >> Intrepid SXT >> Repair and Diagnosis >> Electrical >> Body Electrical >> Connector End Views >> Connector Pin-Outs >> Memory Set Switch Connector End View

Memory Set Switch Connector End View

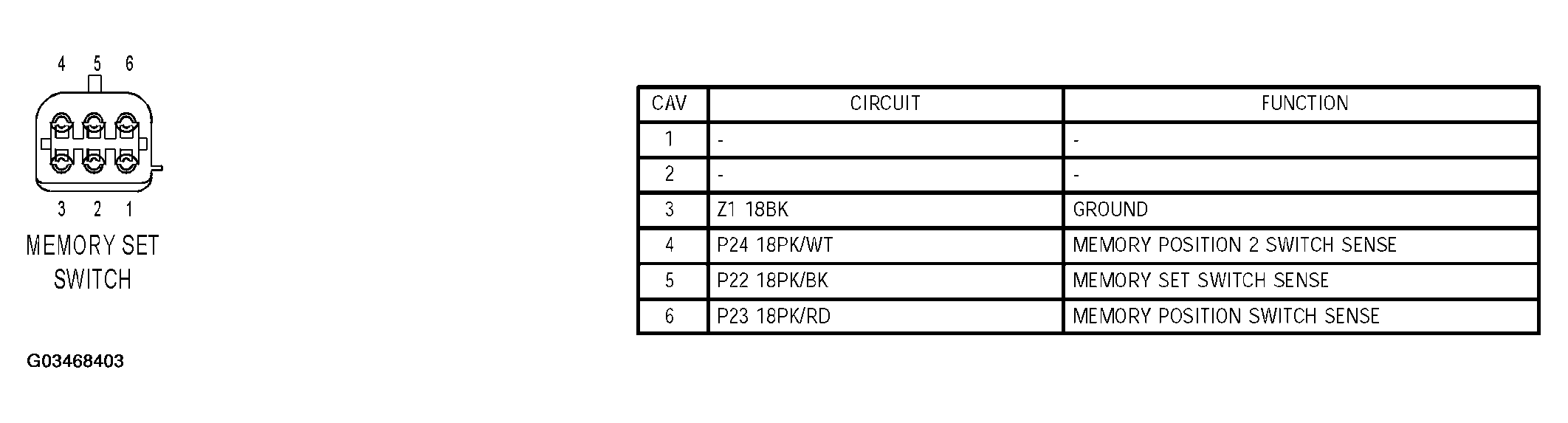

Fig 1: Memory Set Switch Connector End View

G03468403

Courtesy of DAIMLERCHRYSLER CORP.
