Powertrain Control Module Connector End View (C4)

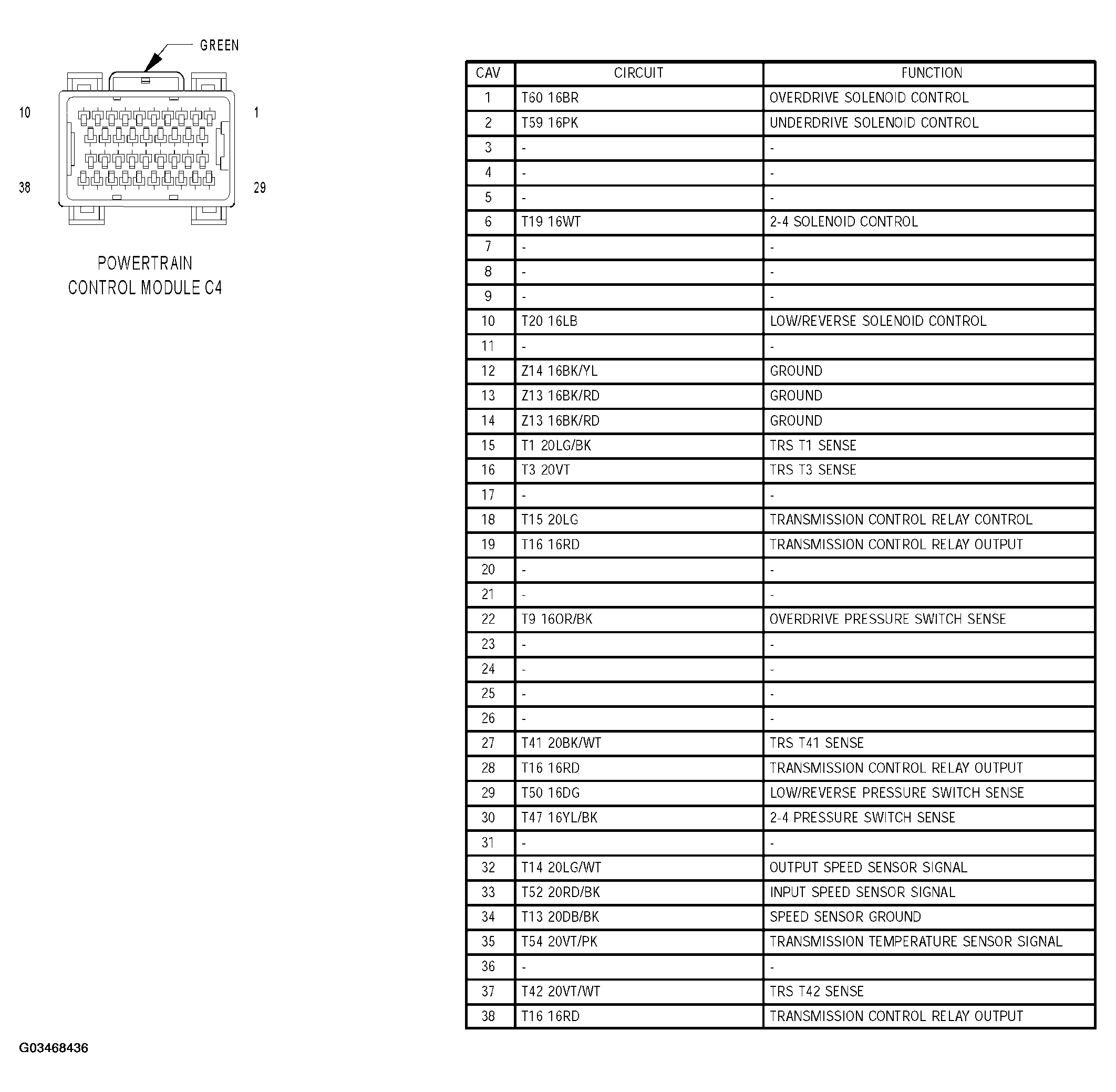

Fig 1: Powertrain Control Module Connector End View (C4)

G03468436

Courtesy of DAIMLERCHRYSLER CORP.
