Home >> Chrysler >> 2003 >> Intrepid SXT >> Repair and Diagnosis >> Electrical >> Body Electrical >> Connector End Views >> Connector Pin-Outs >> Speed Control Servo Connector End View

Speed Control Servo Connector End View

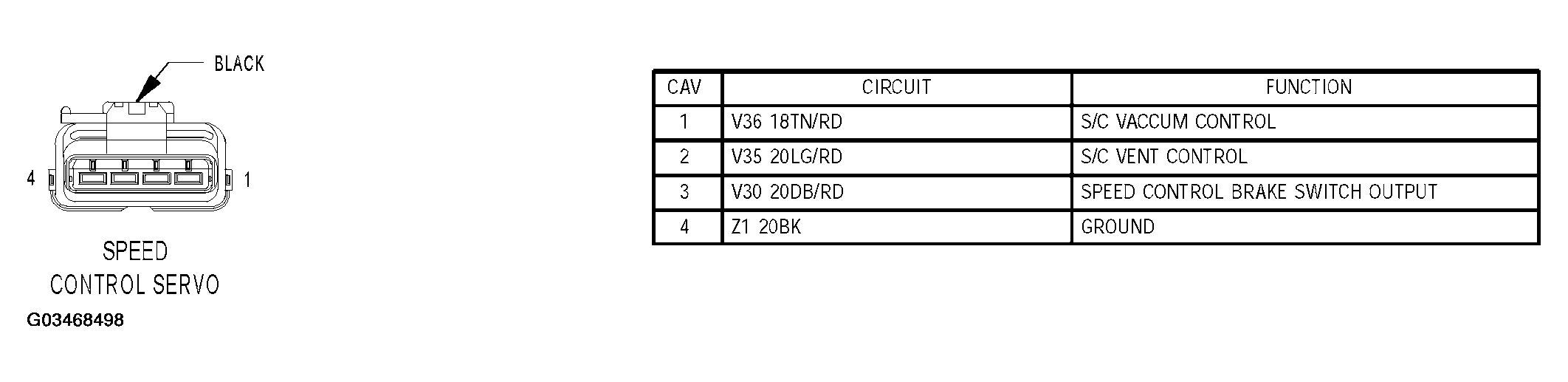

Fig 1: Speed Control Servo Connector End View

G03468498

Courtesy of DAIMLERCHRYSLER CORP.
