Home >> Chrysler >> 2003 >> Intrepid SXT >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> 3.5L >> Engine Mounting >> Right Mount >> Installation

Right Mount: Installation

  1. Install isolator mount with heat shield onto the frame.
  2. Lower the engine onto the isolator mount.
  3. Remove jack from vehicle.

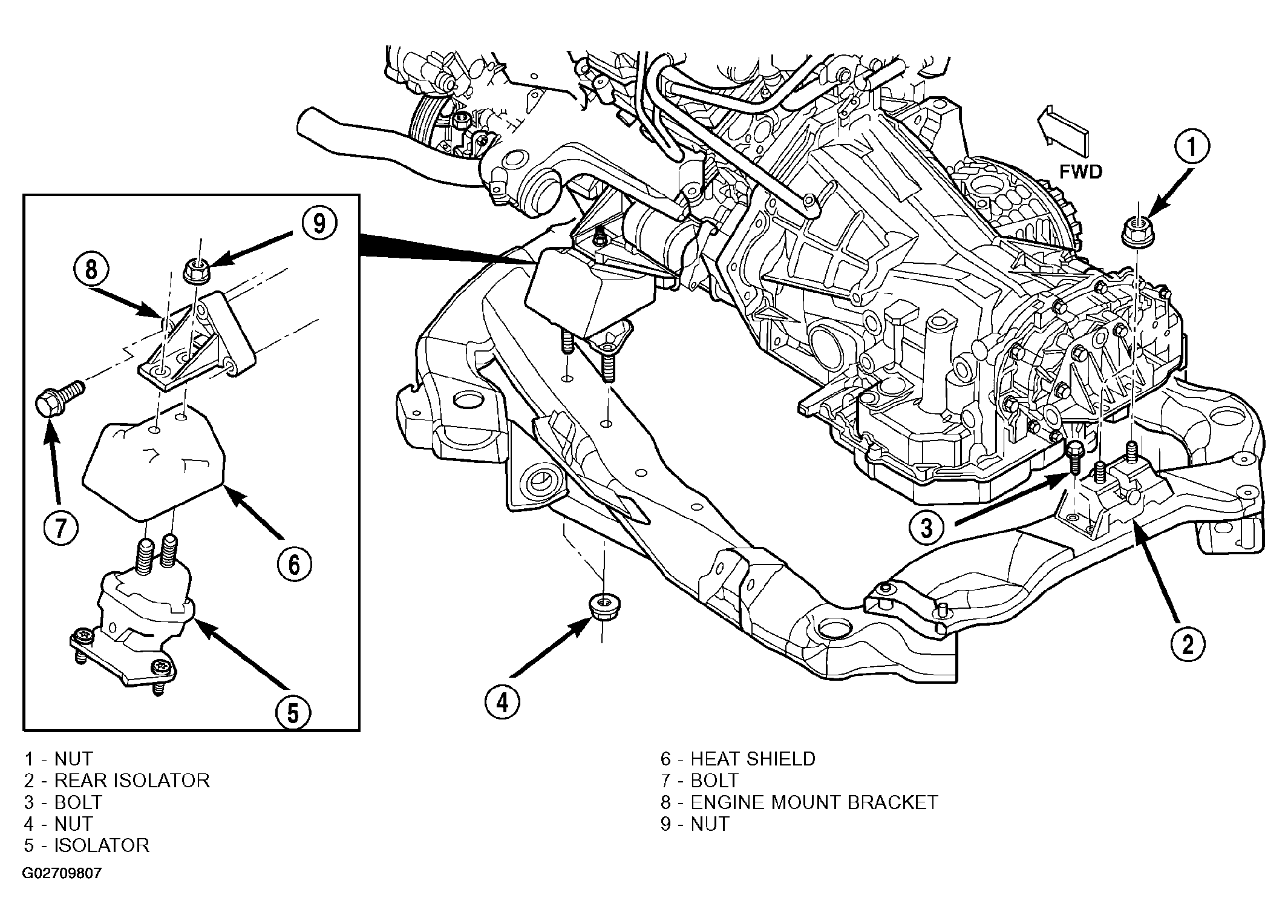

  4. Tighten the isolator to frame nuts to 61 N.m (45 ft. lbs.) (Figure).
  5. Install the upper attaching nuts to mount and tighten to 61 N.m (45 ft. lbs.) (Figure).
  6. Lower vehicle.
