Component Locations: Communication

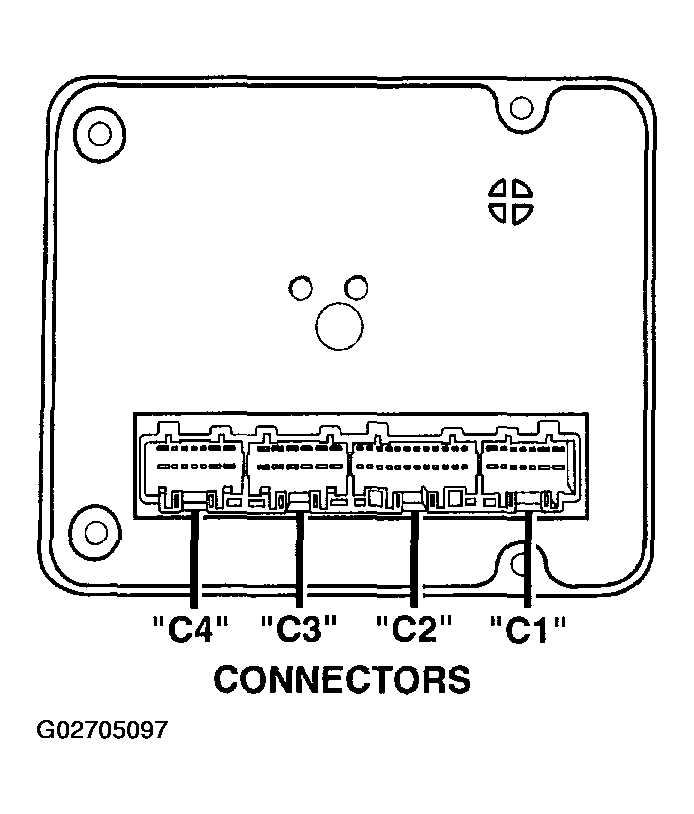

Fig 1: Identifying Communication Component Locations (1 Of 5)
G02705097Courtesy of DAIMLERCHRYSLER CORP.

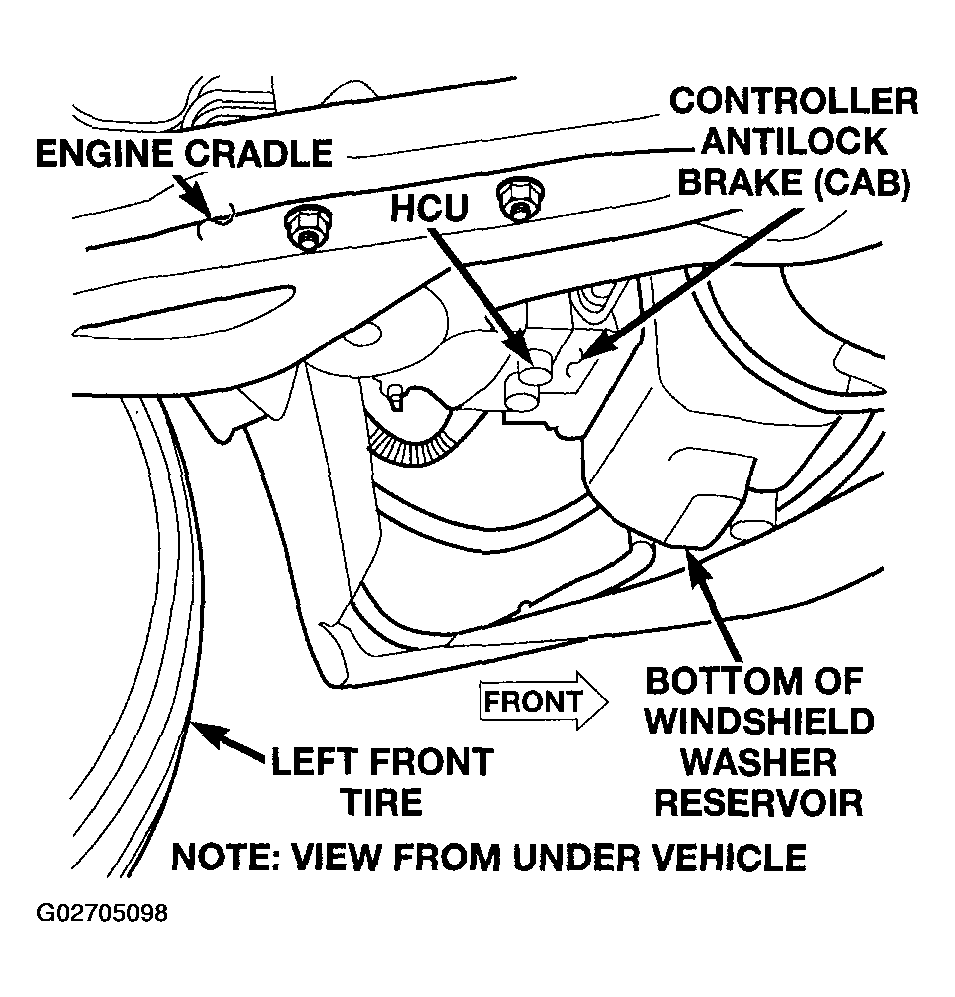

Fig 2: Identifying Communication Component Locations (2 Of 5)
G02705098Courtesy of DAIMLERCHRYSLER CORP.

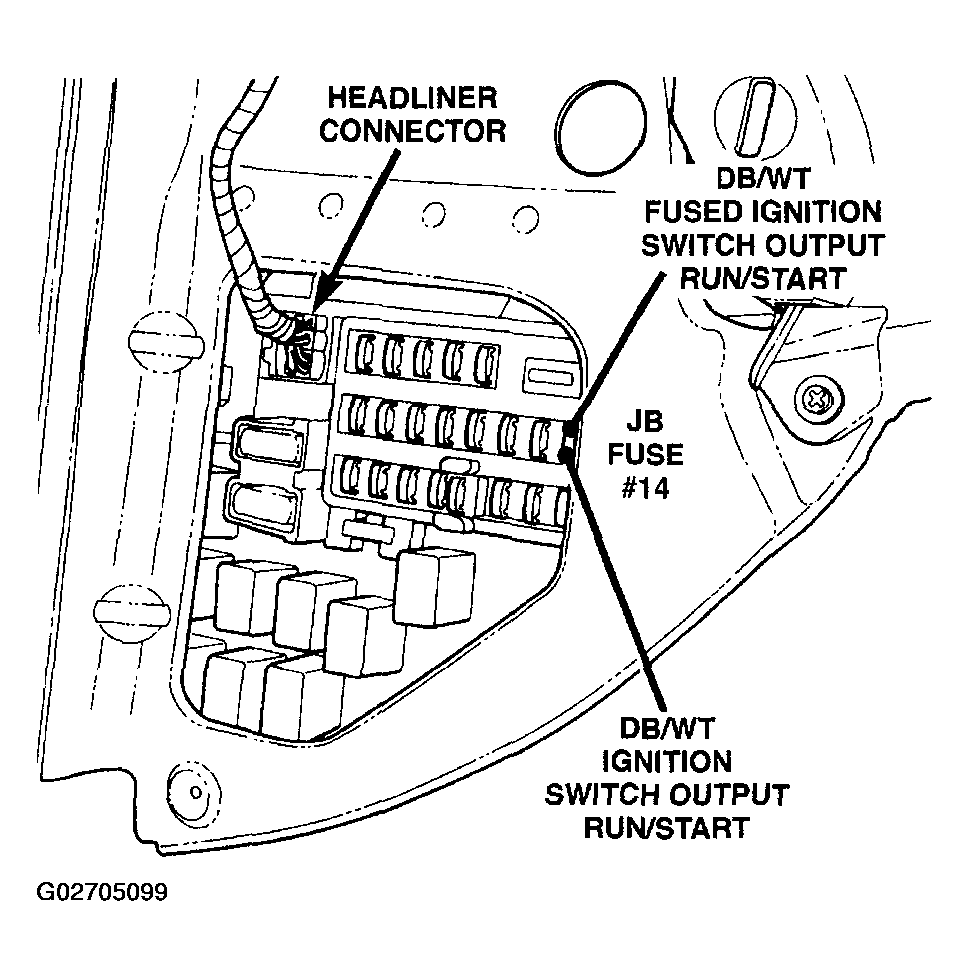

Fig 3: Identifying Communication Component Locations (3 Of 5)
G02705099Courtesy of DAIMLERCHRYSLER CORP.

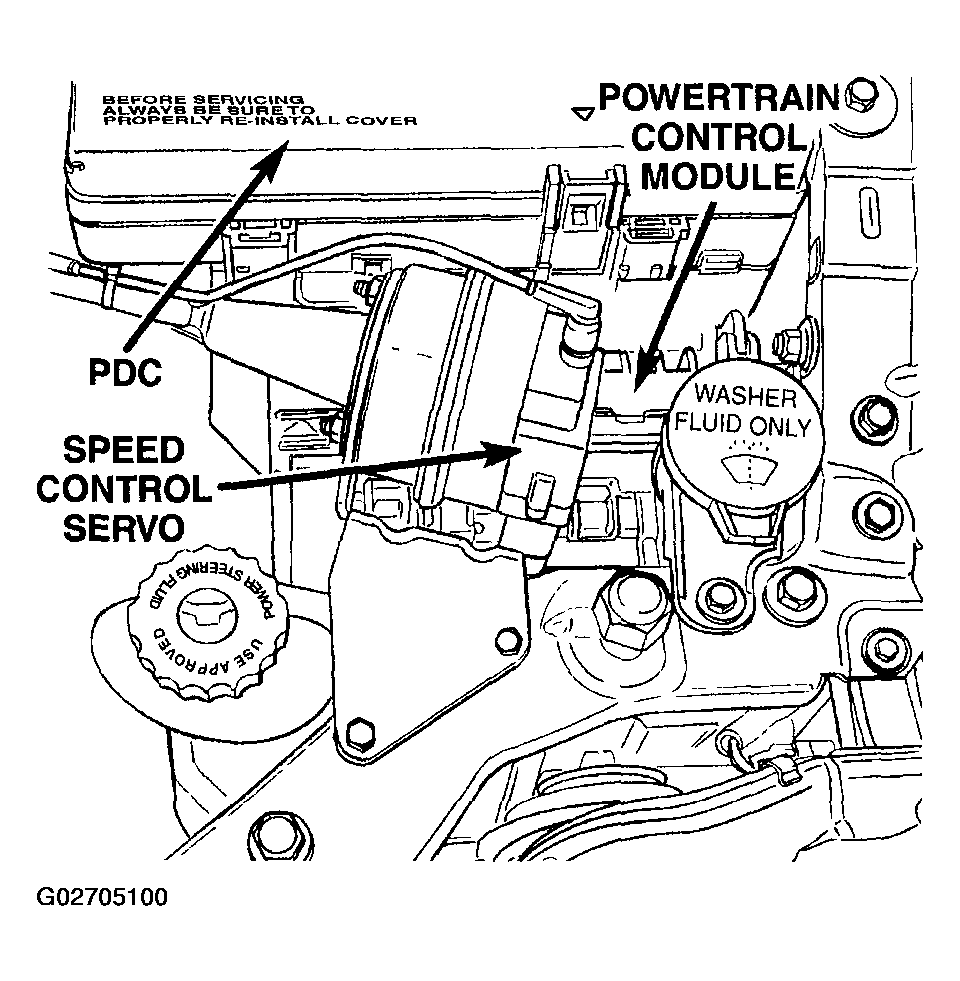

Fig 4: Identifying Communication Component Locations (4 Of 5)
G02705100Courtesy of DAIMLERCHRYSLER CORP.

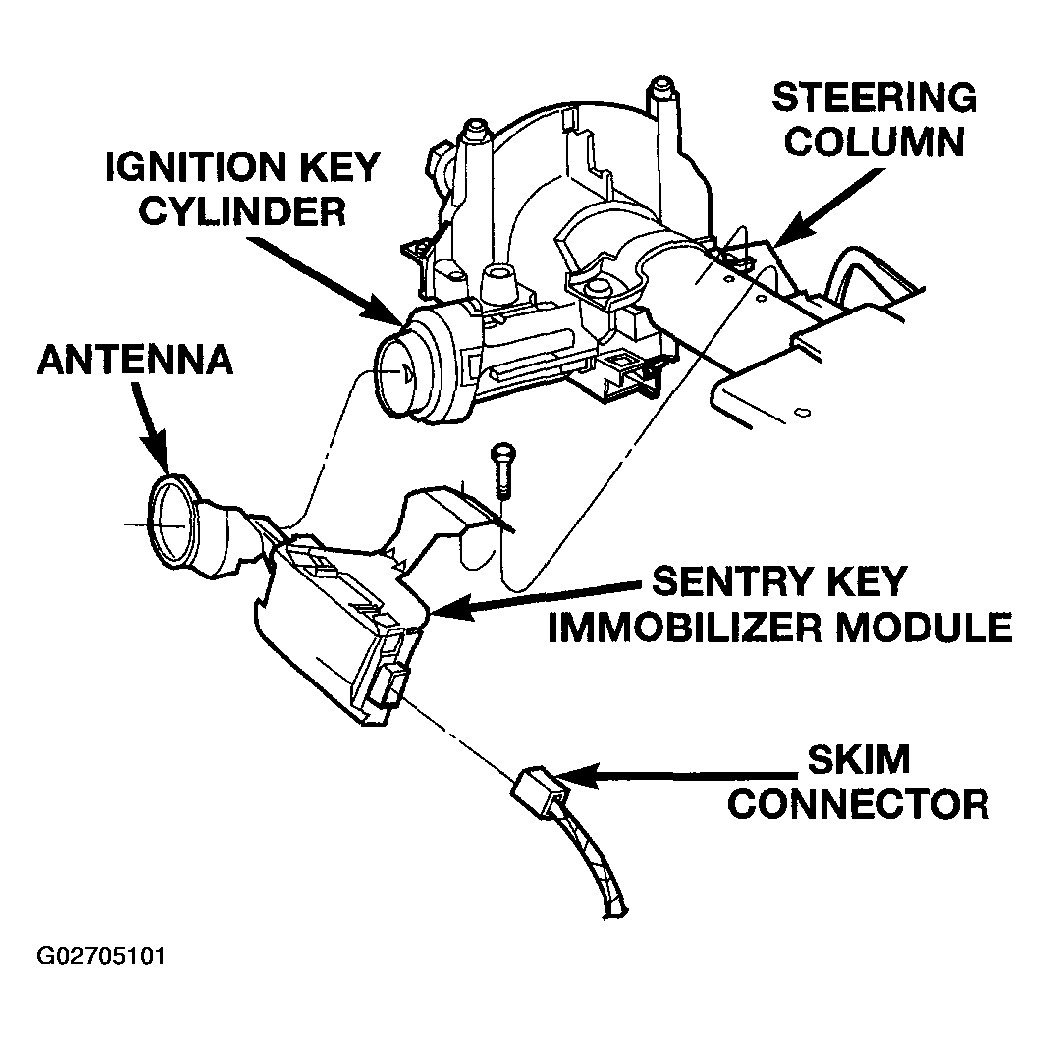

Fig 5: Identifying Communication Component Locations (5 Of 5)
G02705101Courtesy of DAIMLERCHRYSLER CORP.
