Verification Tests

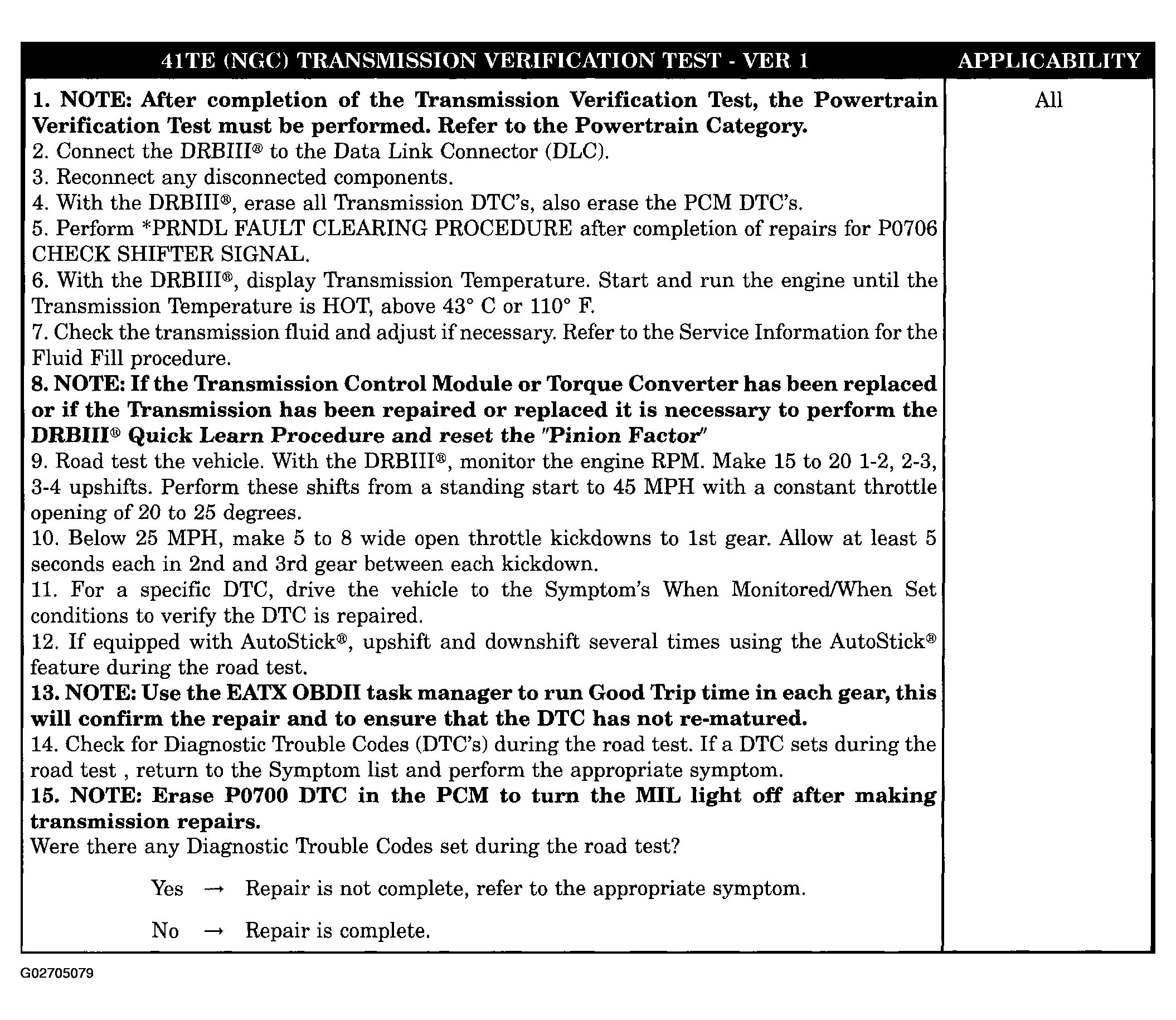

Fig 1: 41TE (NGC) Transmission Verification Test -VER 1

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: ABS Verification Test -VER 1

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Airbag Verification Test -VER 1

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Body Verification Test - VER 1

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Memory Heated System Verification Test -VER 1

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Powertrain Verification Test -VER 1

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: SKIS Verification Test

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Speed PRO Steering Verification Test - VER 1

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Tire Pressure Verification Test

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: VTSS Verification Test - 1A

Courtesy of DAIMLERCHRYSLER CORP.
