Remote Keyless Entry Module: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the instrument panel top cover.
  3. Remove the two screws holding the RKE module to the instrument panel assembly (Fig 1 ).

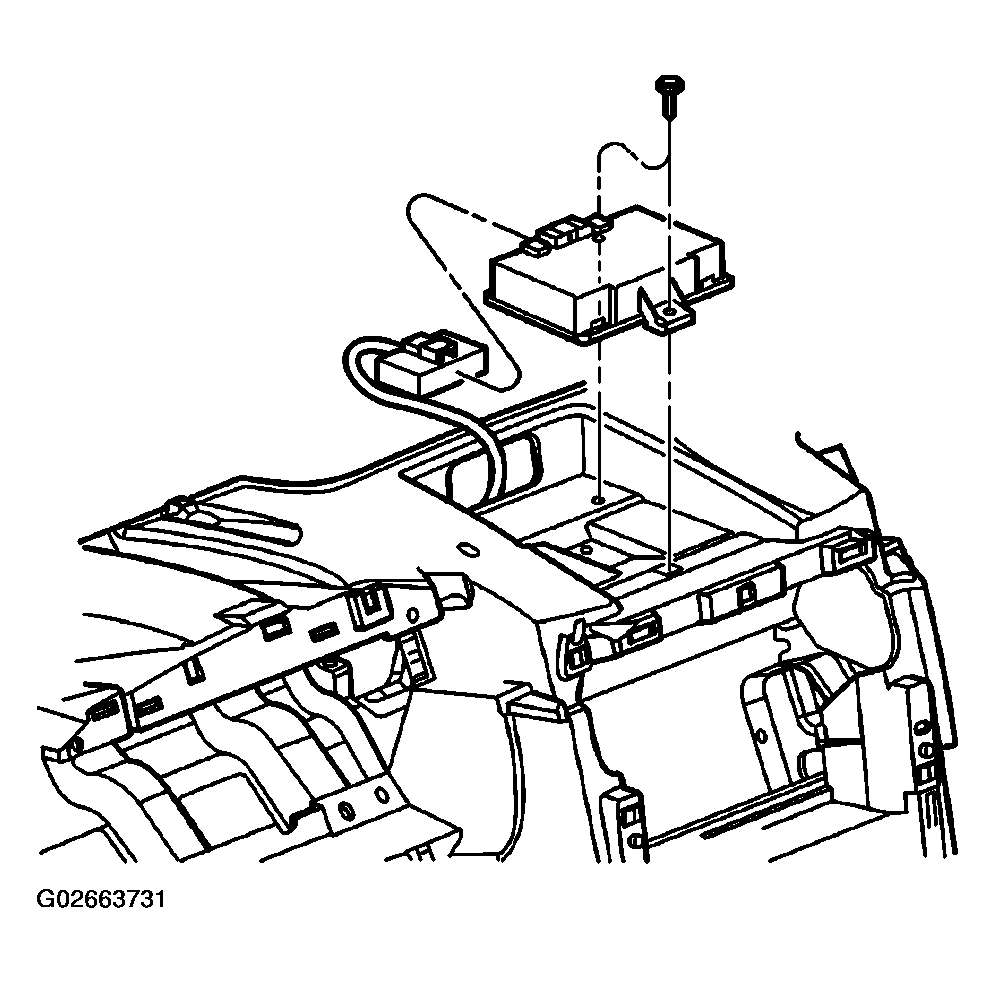

    Fig 1: Removing/Installing RKE Module
    G02663731Courtesy of DAIMLERCHRYSLER CORP.
  4. Slide locking tab of the wiring connector sideways to unlock tab, and remove connector from RKE module.
    5. NOTE: When replacing a faulty RKE Module, the replacement module must be configured with the DRB III(R) scan tool for proper operation. Refer to Vehicle Theft/Security Systems, Configuring a New Module under Service Procedures. Additionally, all transmitters must be reprogrammed to the new RKE module.
  5. Remove RKE module from vehicle.
