AUTOSTICK Switch Harness Connector End View

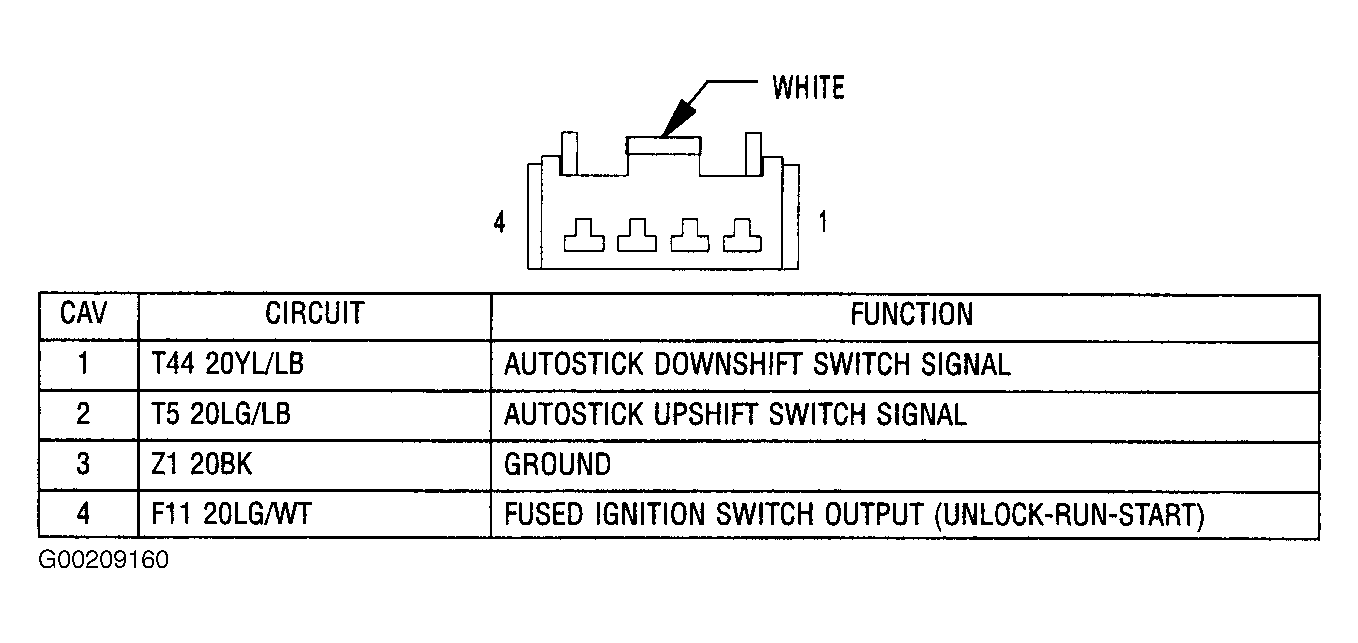

Fig 1: Identifying Autostick Switch Harness Connector Terminals

G00209160

Courtesy of CHRYSLER CORP.
