Ignition Switch Harness Connector End View

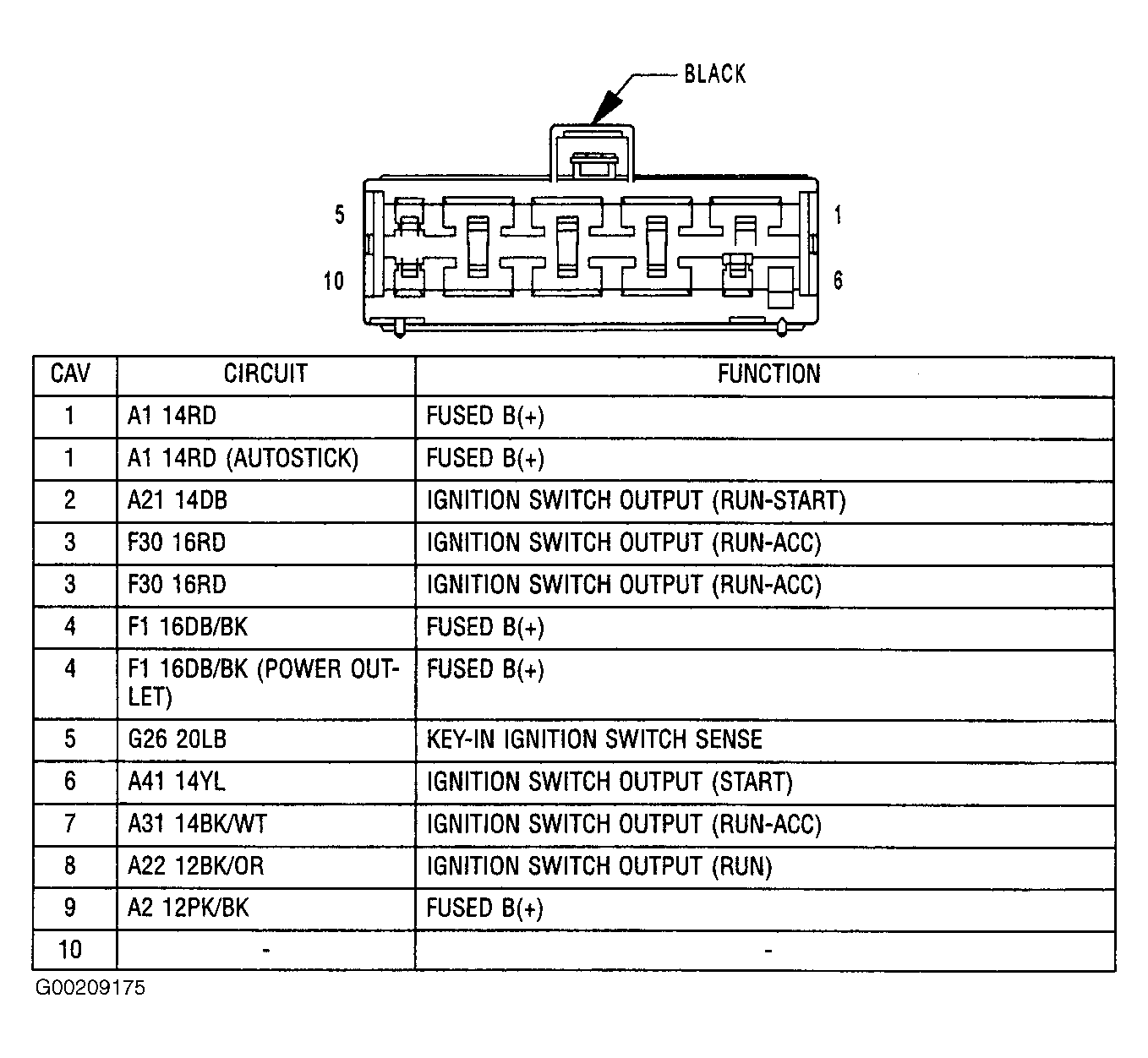

Fig 1: Identifying Ignition Switch (C1) Harness Connector Terminals
G00209175Courtesy of CHRYSLER CORP.

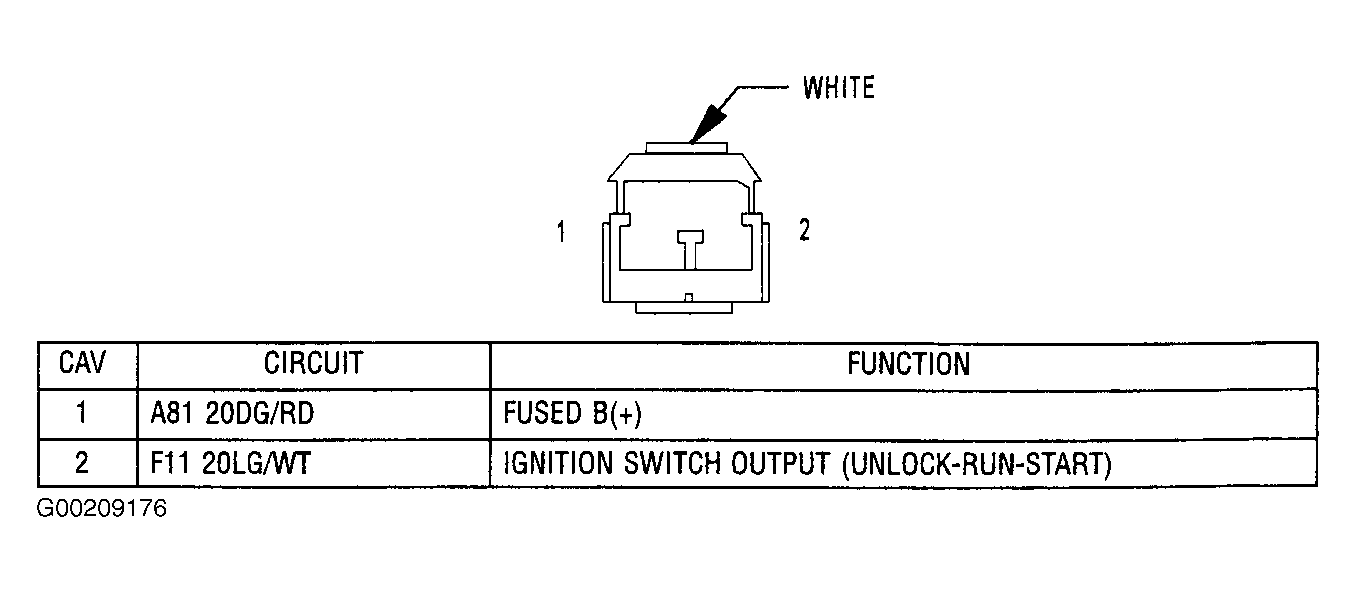

Fig 2: Identifying Ignition Switch (C2) Harness Connector Terminals
G00209176Courtesy of CHRYSLER CORP.
