Oxygen Sensor Harness Connector End View

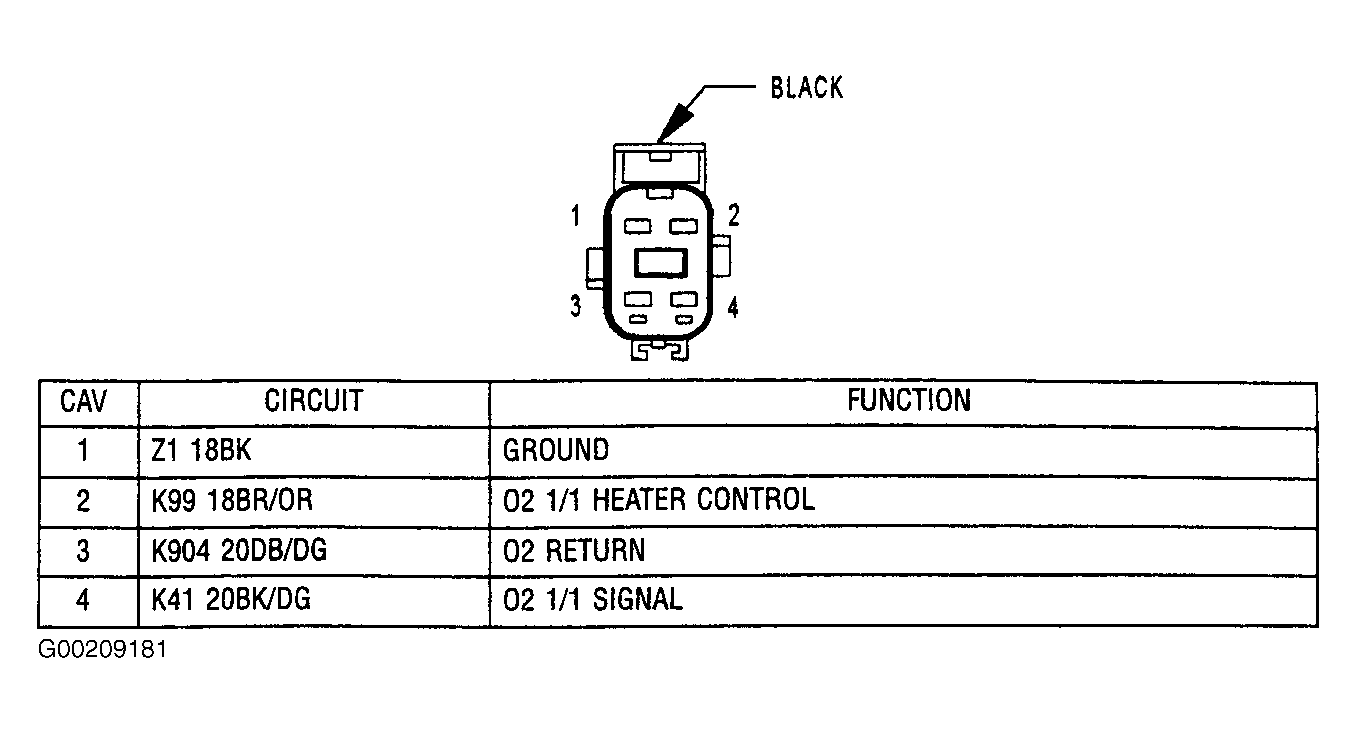

Fig 1: Identifying 1/1 Oxygen Sensor Harness Connector Terminals
G00209181Courtesy of CHRYSLER CORP.

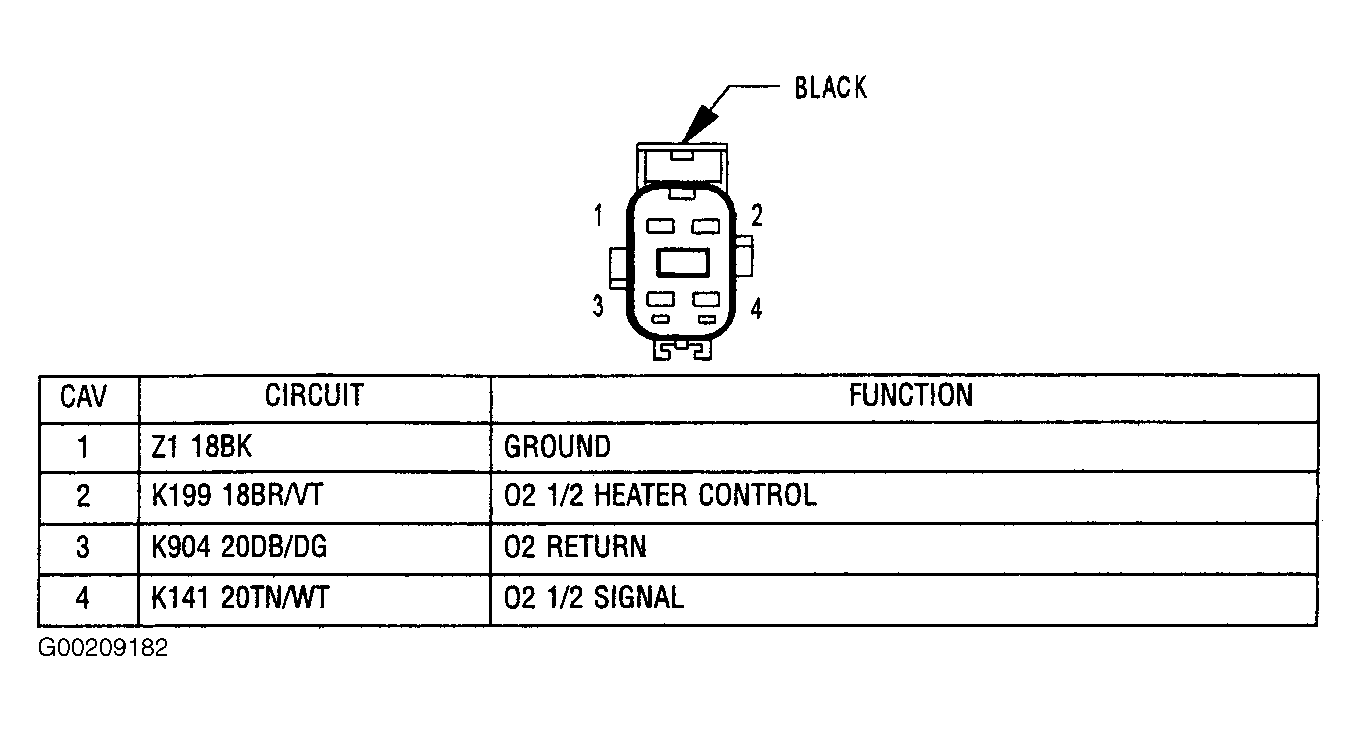

Fig 2: Identifying 1/2 Oxygen Sensor Harness Connector Terminals
G00209182Courtesy of CHRYSLER CORP.
