Speed Control Switch Harness Connector End View
Speed Control Switch Harness Connector End View

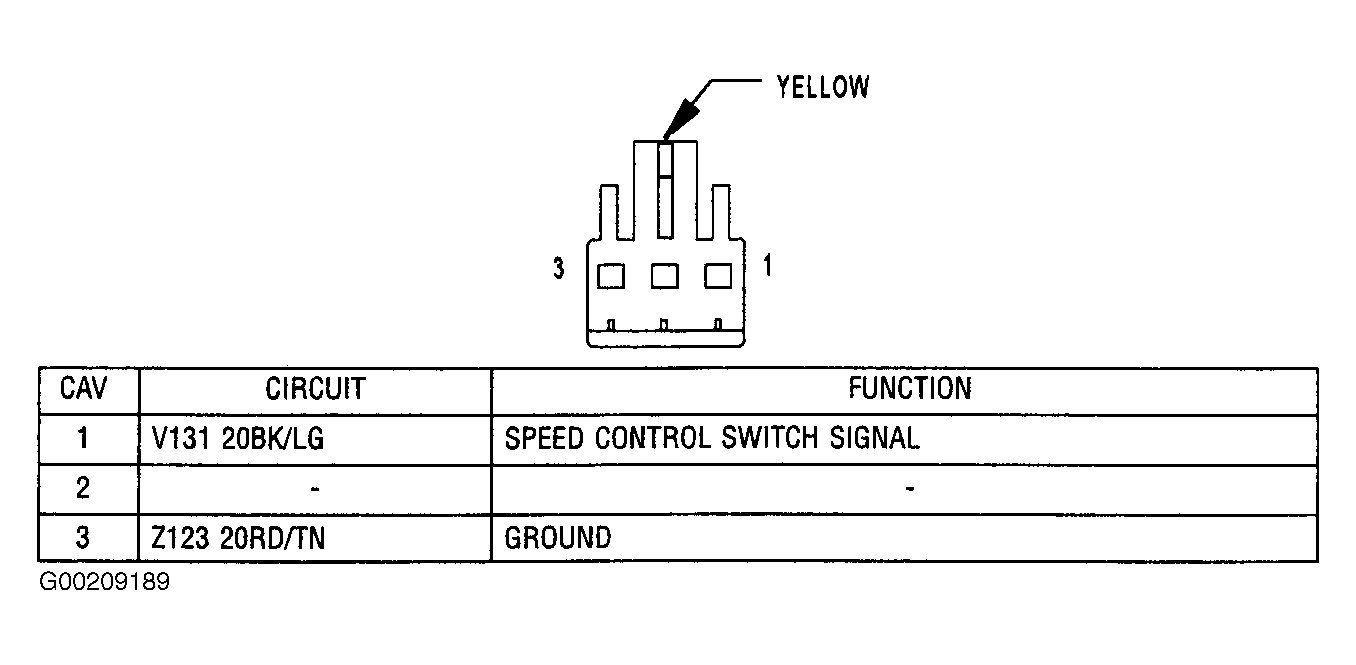

Fig 1: Identifying Speed Control Switch Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
