Home >> Chrysler >> 2003 >> Voyager Base, 2.4 B >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Window Switch >> Removal

Window Switch: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick, start at the bottom of the switch and bezel assembly and pry up to remove the switch and bezel assembly from the door trim panel (Fig 1).

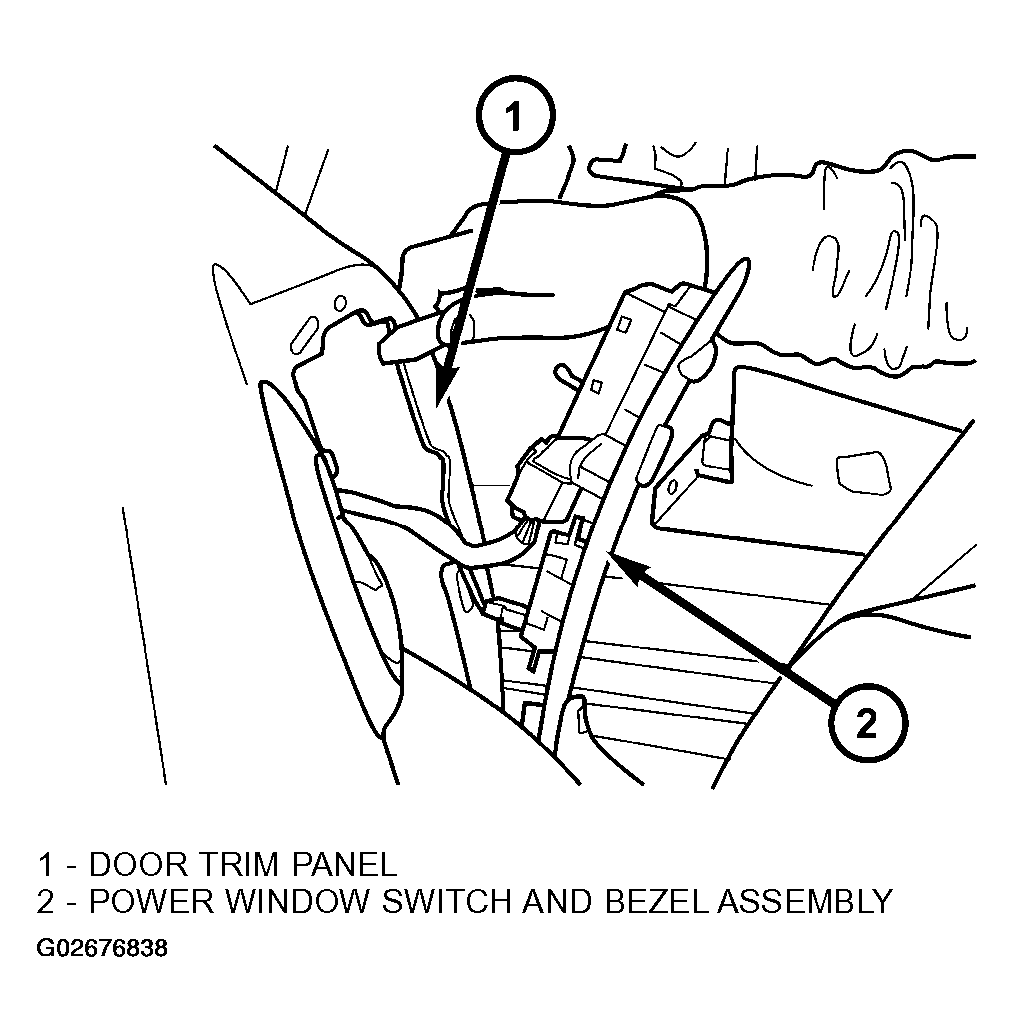

    Fig 1: Removing Power Window Switch
    G02676838Courtesy of DAIMLERCHRYSLER CORP.
  3. Unlatch the locking tab on the harness side connector of the switch.
  4. Disconnect wire harness connectors from switch.
