Integrated Power Module: Removal

  1. Disconnect the negative and positive battery cables.
  2. Remove the battery thermal guard from the vehicle.
  3. Remove the battery from the vehicle.
  4. Using a flat-bladed screwdriver, twist the Integrated Power Module (IPM) bracket retaining latch outward to free the intelligent power module from its mounting bracket. SeeFig 1 .

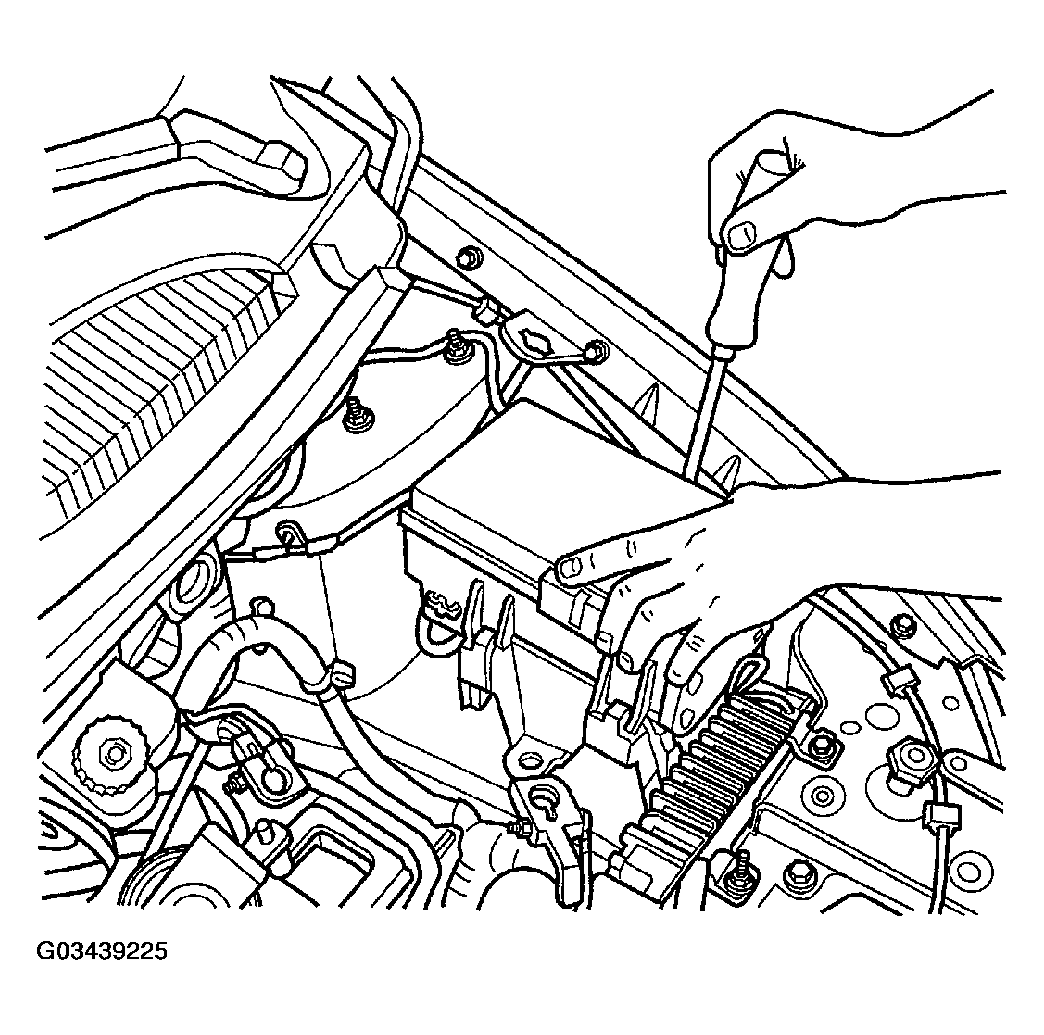

    Fig 1: Removing Integrated Power Module From Mounting Bracket
    G03439225Courtesy of DAIMLERCHRYSLER CORP.

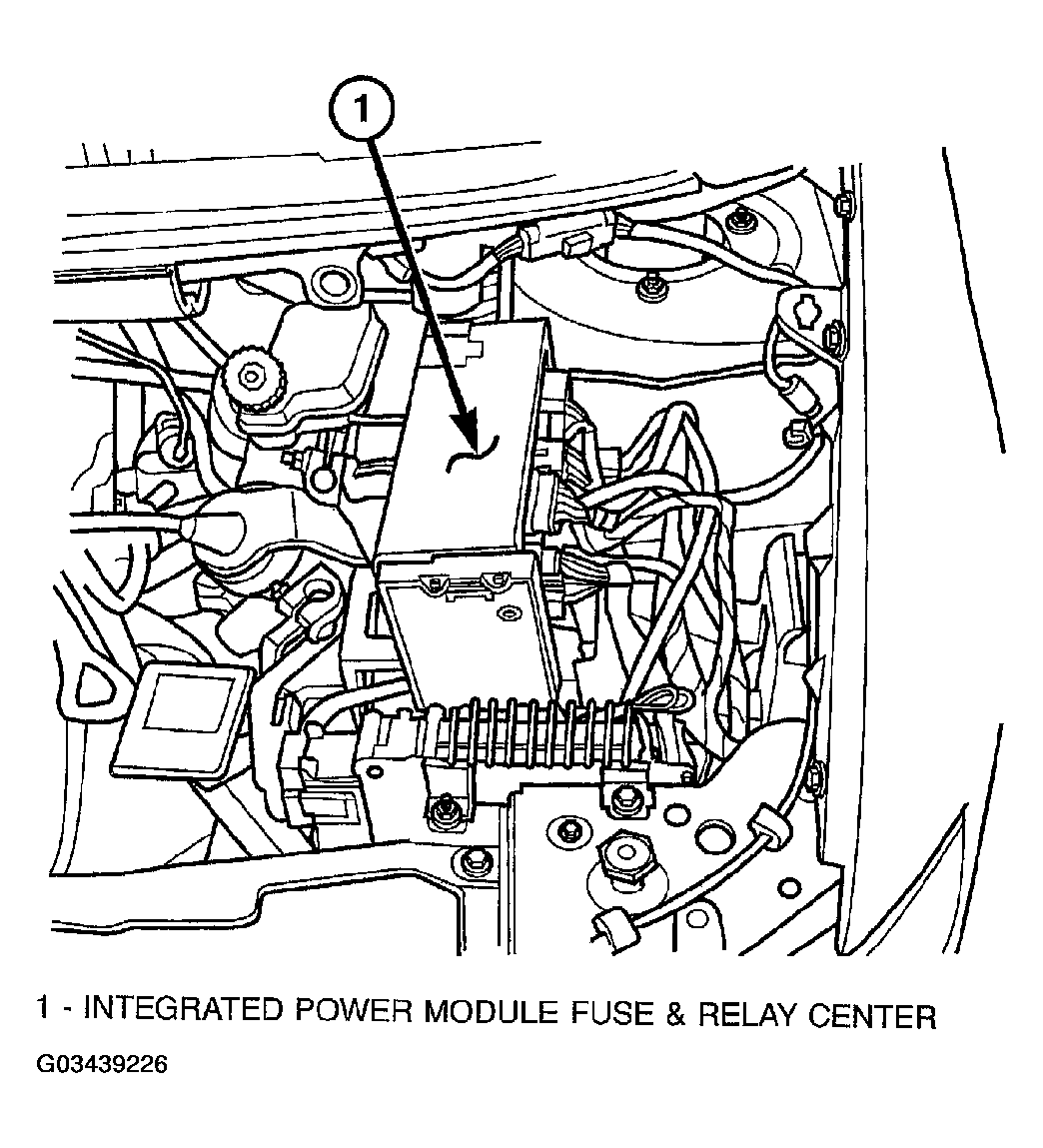

  5. Rotate the IPM counter-clockwise to access and disconnect the various electrical connectors. SeeFigure .
  6. Free the IPM from its mounting bracket by removing the IPM bracket clips from the hinge. A screwdriver slipped up from under the hinge will free the clips.
