Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

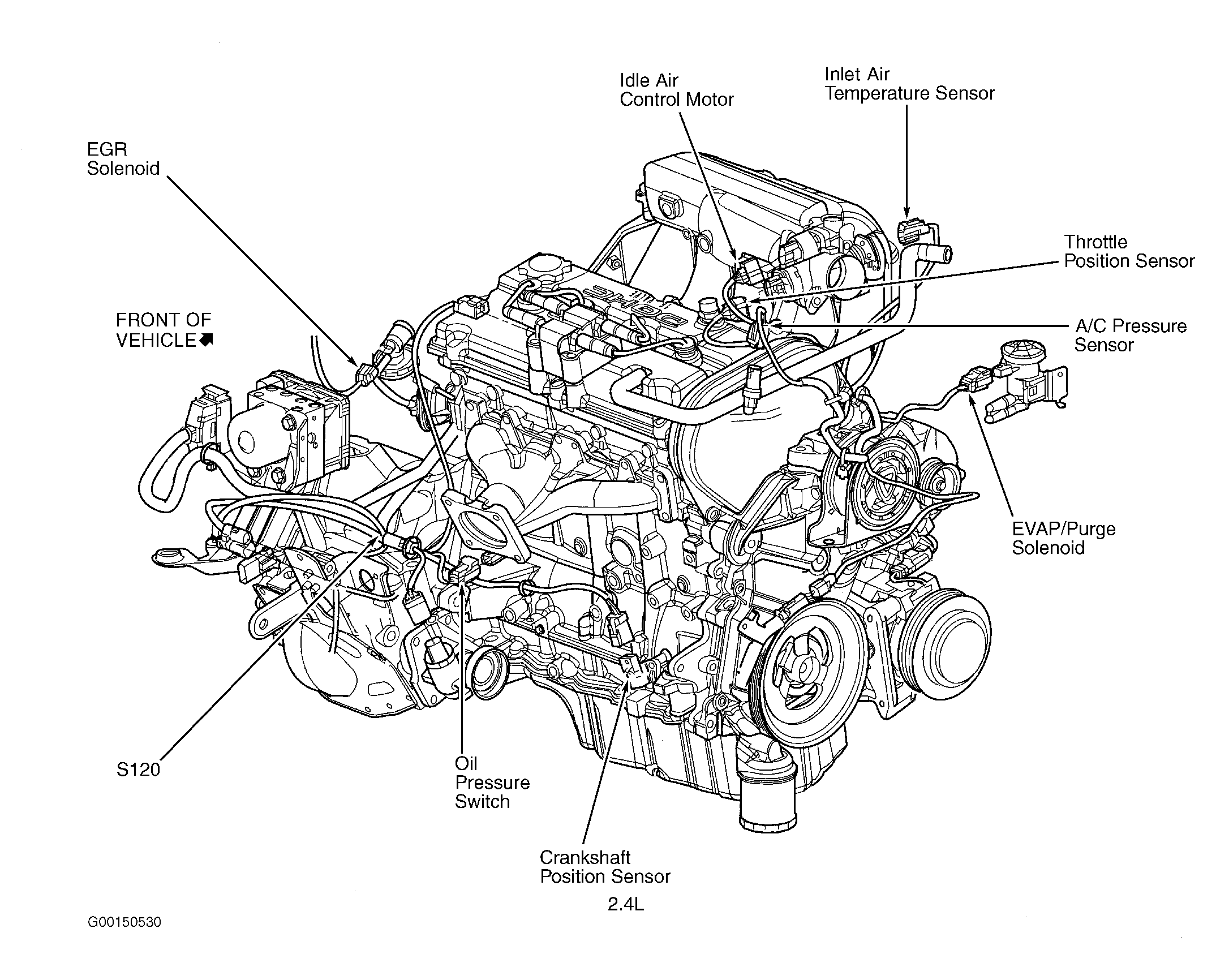

Fig 1: Right Side Of Engine (2.4L)

Courtesy of DAIMLERCHRYSLER CORP.

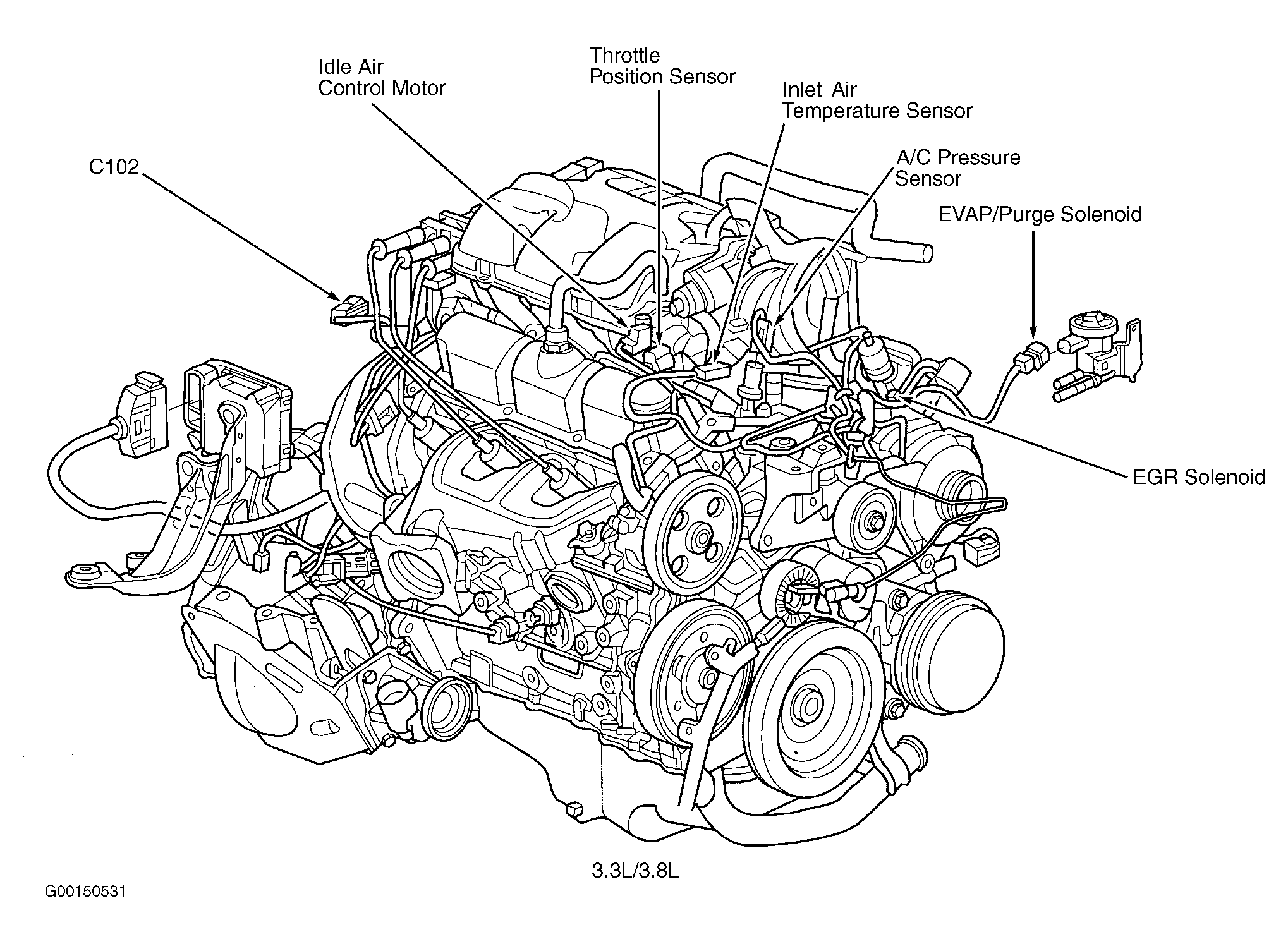

Fig 2: Right Side Of Engine (3.3L & 3.8L)

Courtesy of DAIMLERCHRYSLER CORP.

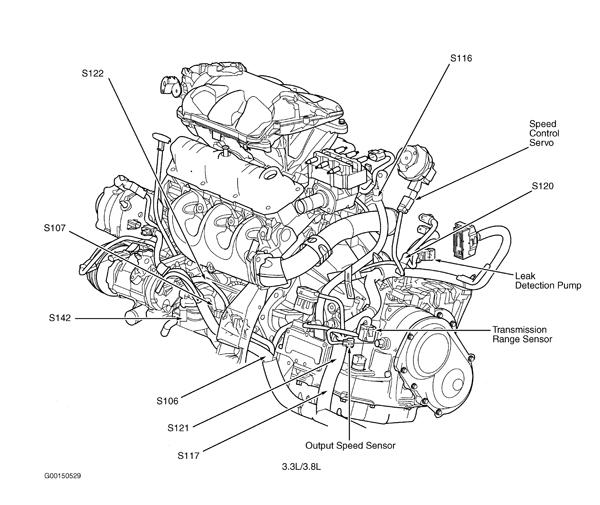

Fig 3: Left Side Of Engine (3.3L & 3.8L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Left Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Liftgate & Sliding Door (Right Sliding Door Shown Left Similiar)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Transmission Control Module

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Camshaft Position Sensor - 3.3L/3.8L

Courtesy of DAIMLERCHRYSLER CORP.

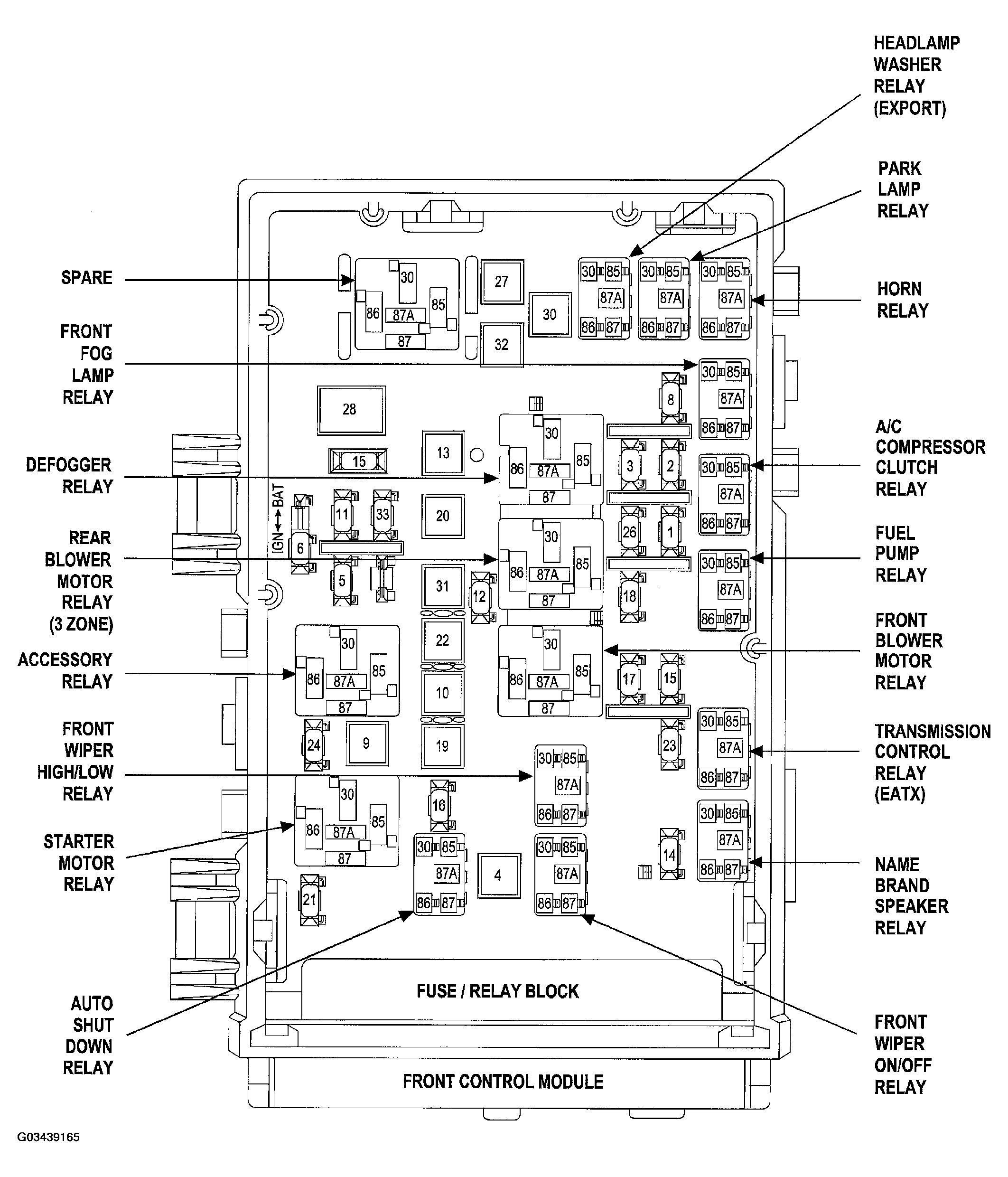

Fig 8: Integrated Power Module (Gas)

Courtesy of DAIMLERCHRYSLER CORP.
