Firing Order

Fig 1: Identifying Firing (2.4L)

G02676693

Courtesy of DAIMLERCHRYSLER CORP.

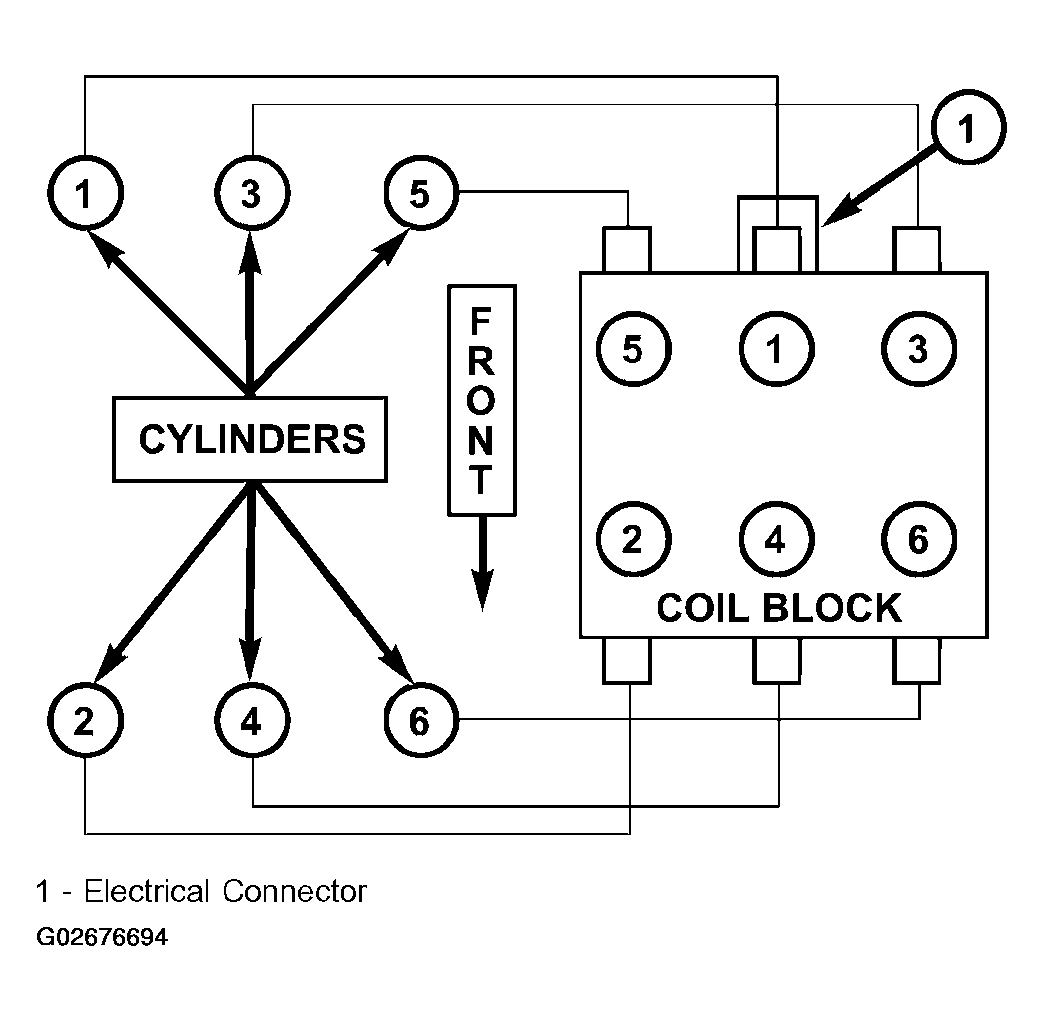

Fig 2: Identifying Firing Order (3.3/3.8L)

G02676694

Courtesy of DAIMLERCHRYSLER CORP.
