Security System Module: Removal

  1. Disconnect the negative battery cable.
  2. Remove the trunk floor covering.
  3. Remove the vehicle jacking assembly.
  4. Remove the sound deadening foam material from the central locking pump/security system module.
  5. Disconnect the air lines (1) and the electrical connectors (2) from the central locking pump/security system module (3) and remove the module.

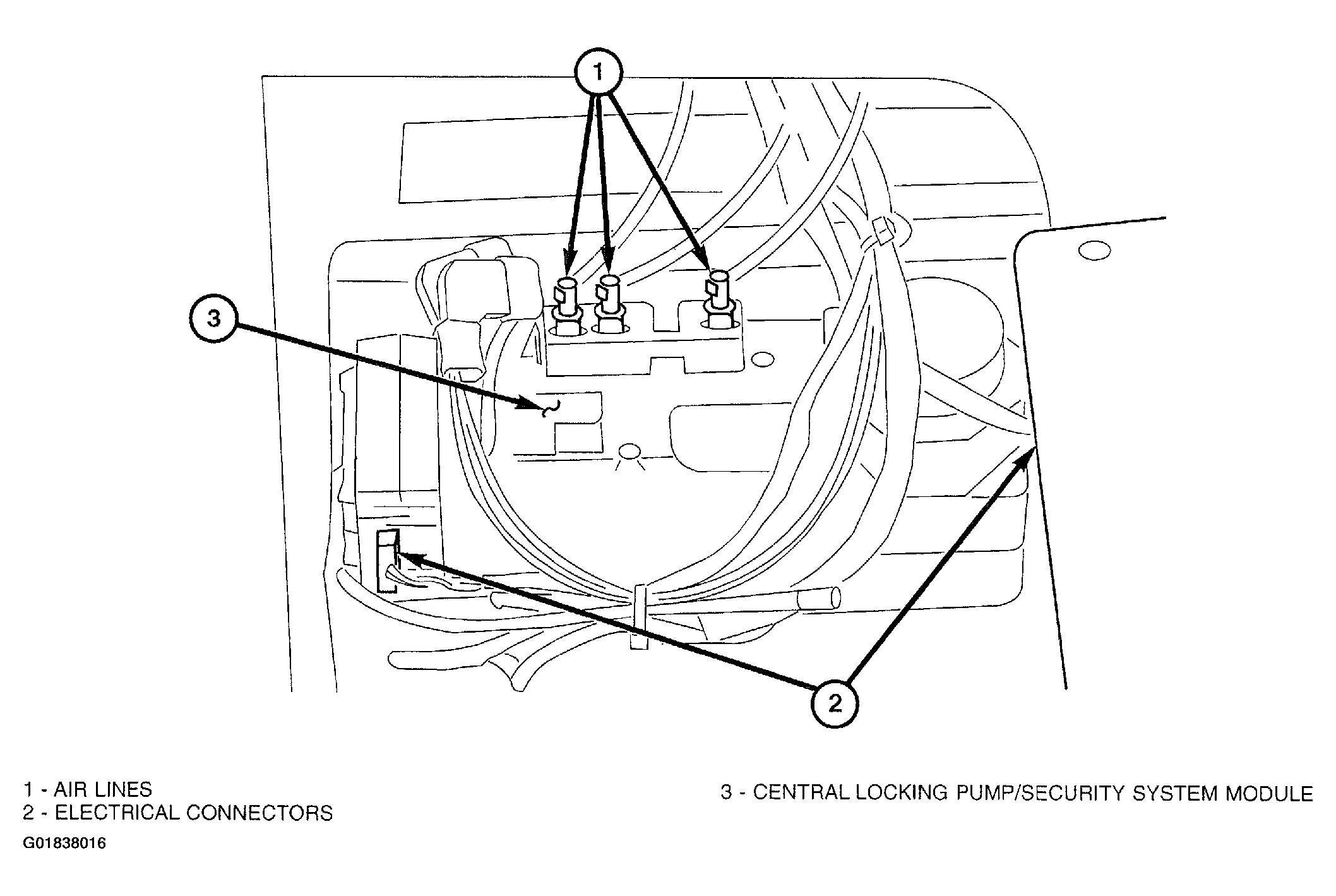

    Fig 1: Removing Security System Module
    G01838016Courtesy of DAIMLERCHRYSLER CORP.
