Sentry Key Remote Entry Module: Removal: SKREEM

  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster. See INSTRUMENT CLUSTER article.
  3. Disconnect the 2-pin CAN bus harness connector (1) from the SKREEM.

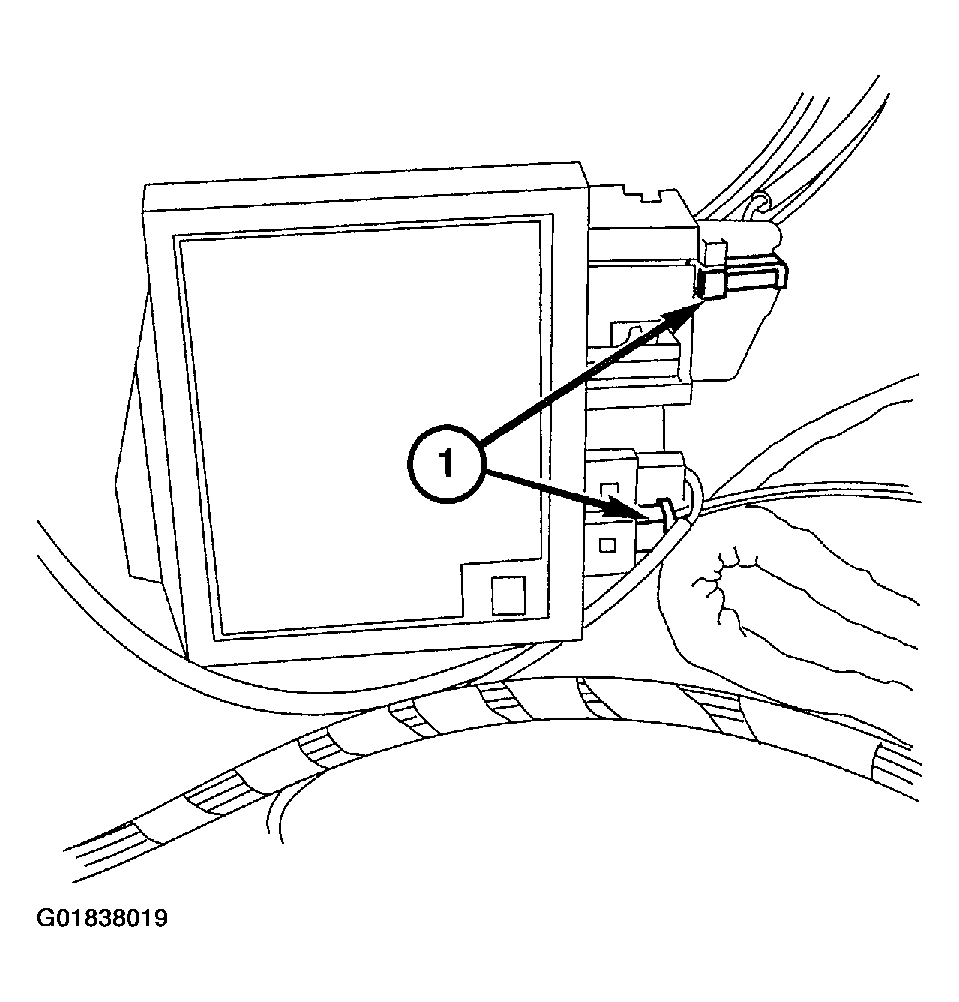

    Fig 1: Removing SKREEM
    G01838019Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the 2-pin harness connector for the sentry key antenna ring.
  5. Disconnect the 18-pin harness connector (1) from the SKREEM.
  6. Press the retaining tabs apart.
  7. Remove the SKREEM from the base plate.
