Transmission Control Module: Installation

  1. Connect the electrical connectors to the transmission control module (1).
  2. Install the screws holding the transmission control module (1) to the base plate (3).
  3. Turn the base plate (3) and realign it with the mounting studs on the vehicle floor.
    4. NOTE: Be sure not to pinch or cause interference with the wiring harnesses while locating the base plate to the vehicle floor studs.
  4. Install the plastic nuts and secure the base plate (3) to the passenger side lower dash panel.
  5. Push the carpet in the front part of the passenger footwell up into its original position and install the passenger floor mat.
  6. Connect the negative battery cable.

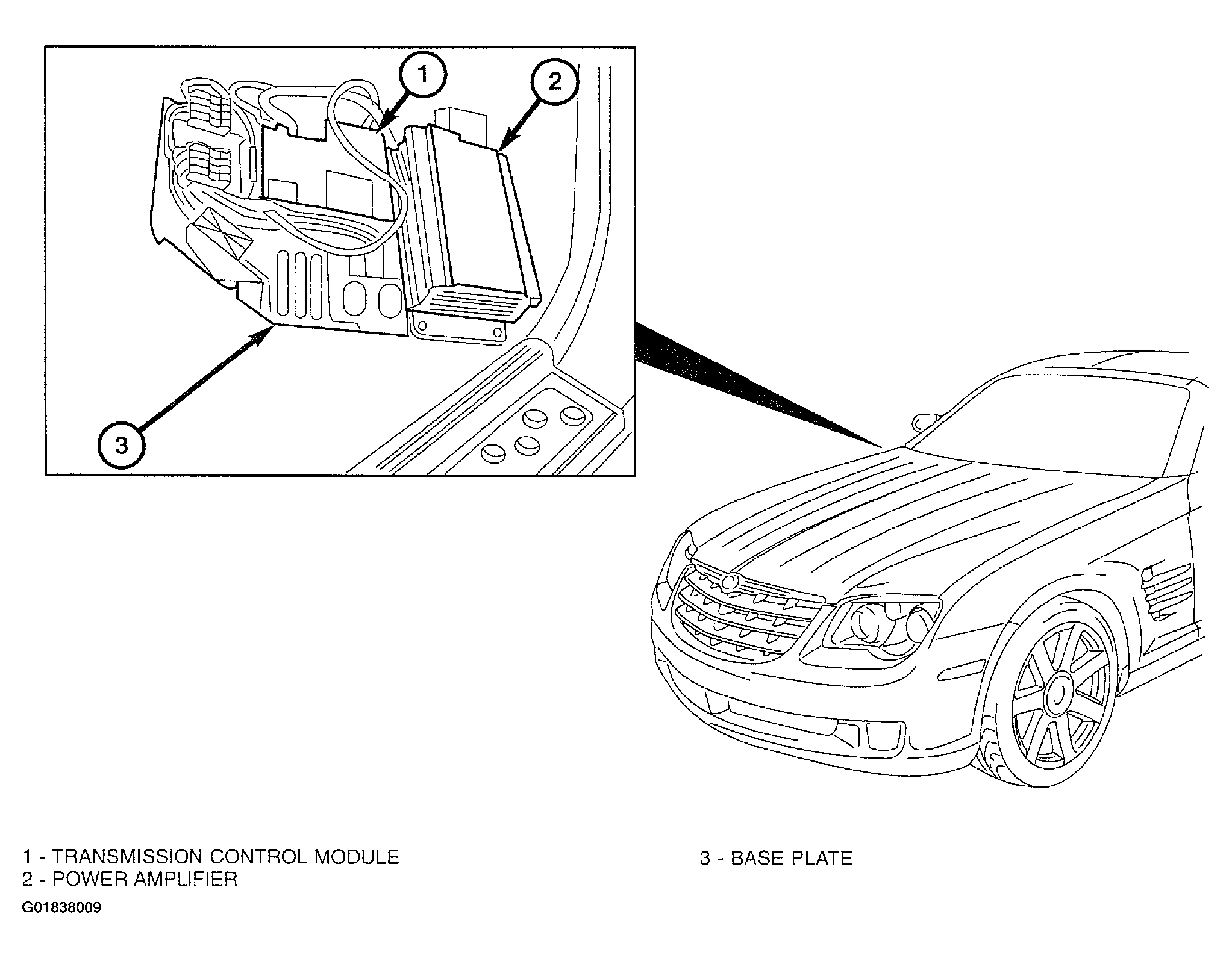

    Fig 1: Installing TCM
    G01838009Courtesy of DAIMLERCHRYSLER CORP.
