Home >> Chrysler >> 2004 >> Crossfire Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Message Systems >> Universal Transmitter >> Installation

Universal Transmitter: Installation

  1. Connect the harness connector to the Universal Garage Door Opener/Tire Pressure Monitor module.

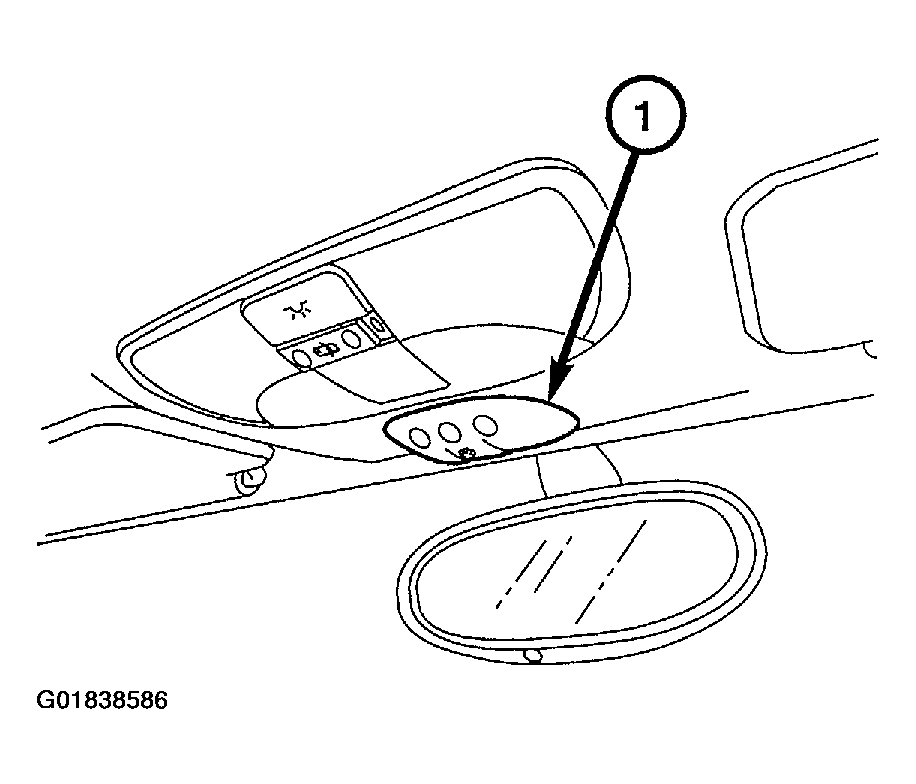

    Fig 1: Installing Universal Garage Door Opener/Tire Pressure Monitor Module
    G01838586Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the Universal Garage Door Opener/Tire Pressure Monitor module by snapping it into the headliner.
  3. Connect the negative battery cable.
