Sentry Key Antenna Ring

  1. Remove the instrument cluster. See INSTRUMENT CLUSTER article.
  2. Disconnect the sentry key antenna ring electrical connector (1) from the sentry key remote entry module (2).

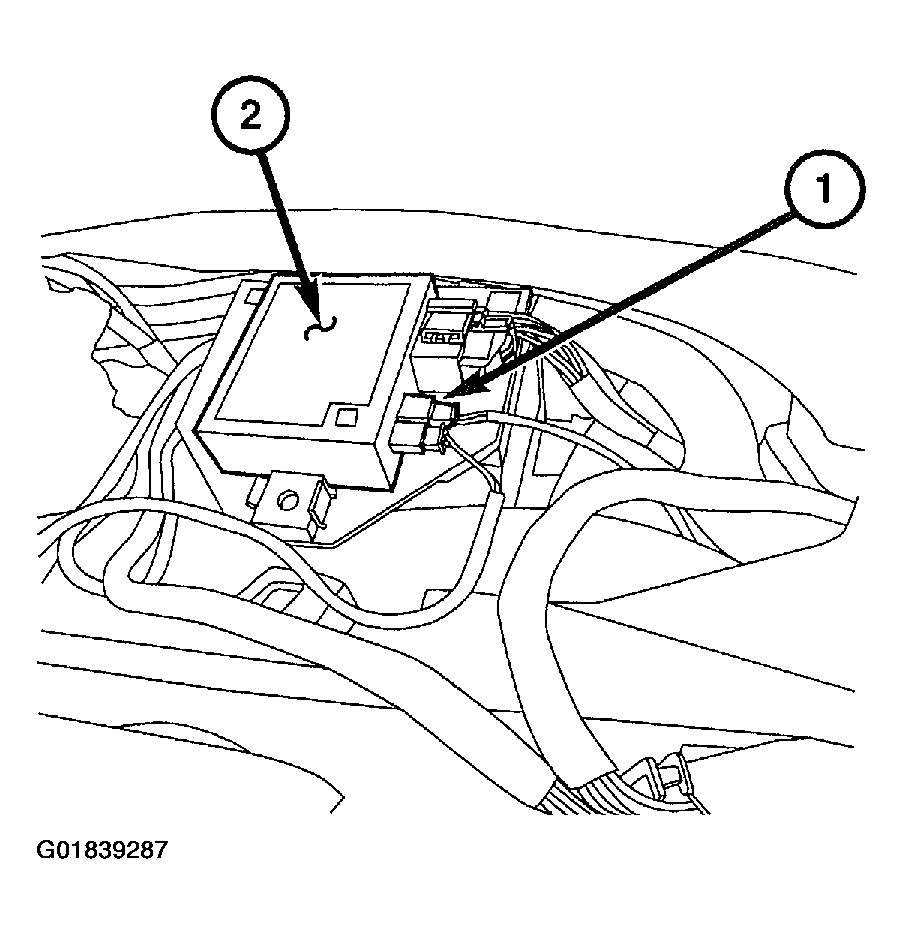

    Fig 1: Disconnecting Sentry Key Antenna Ring Electrical Connector From Sentry Key Remote Entry Module
    G01839287Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: Pay attention to harness routing for proper installation.
  3. Pull to remove the sentry key antenna ring (1) from the ignition switch key cylinder (2).

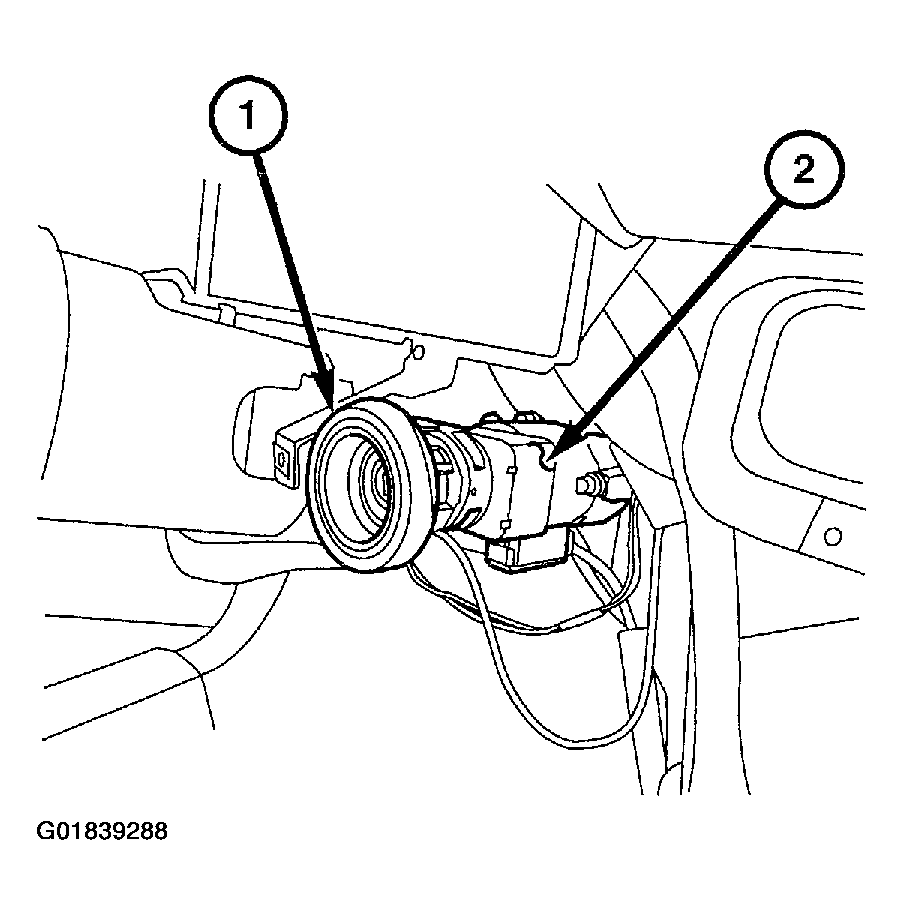

    Fig 2: Removing Sentry Key Antenna Ring From Ignition Switch Key Cylinder
    G01839288Courtesy of DAIMLERCHRYSLER CORP.
