Home >> Chrysler >> 2004 >> Crossfire Automatic >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Power Mirrors >> SIDEVIEW Mirror >> Installation

SIDEVIEW Mirror: Installation

  1. Install the screws (1) attaching the mirror to the door.

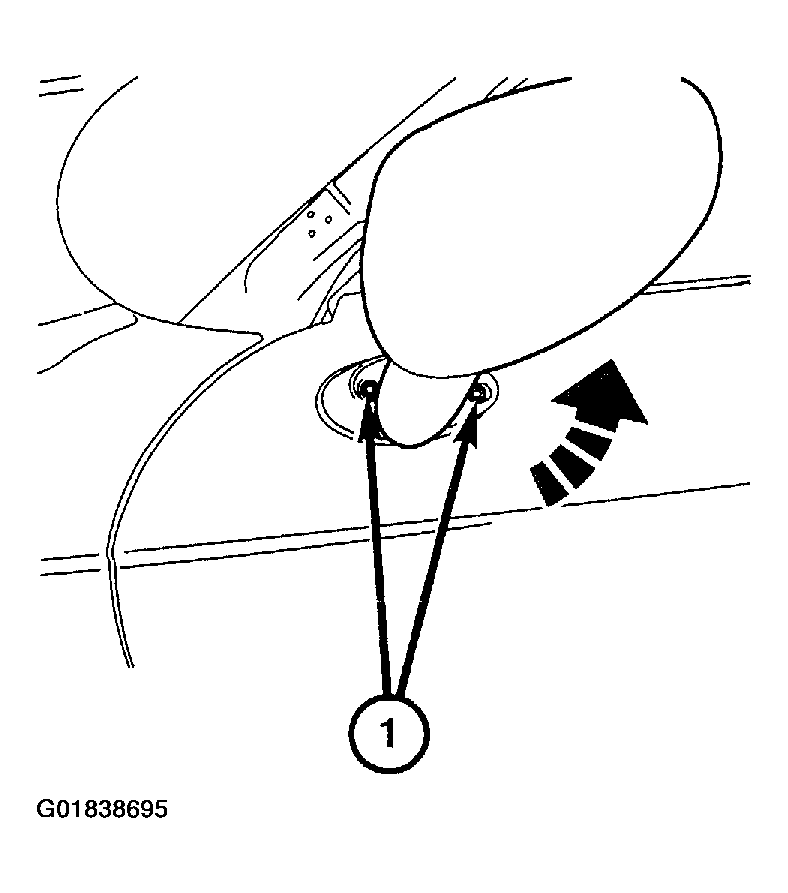

    Fig 1: Installing Sideview Mirror
    G01838695Courtesy of DAIMLERCHRYSLER CORP.
  2. Connect the sideview mirror harness connector.
  3. Install the door interior trim panel. See BODY article.
  4. Rotate the mirror back to its rest position.
  5. Connect the negative battery cable.
