SIDEVIEW Mirror: Removal
WARNING:
SEE AIR BAG RESTRAINT SYSTEMS
ARTICLE BEFORE ATTEMPTING ANY DOOR, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
- Disconnect the negative battery cable.
- Remove the door interior trim panel. See BODY article.
- Disconnect the mirror harness connector.

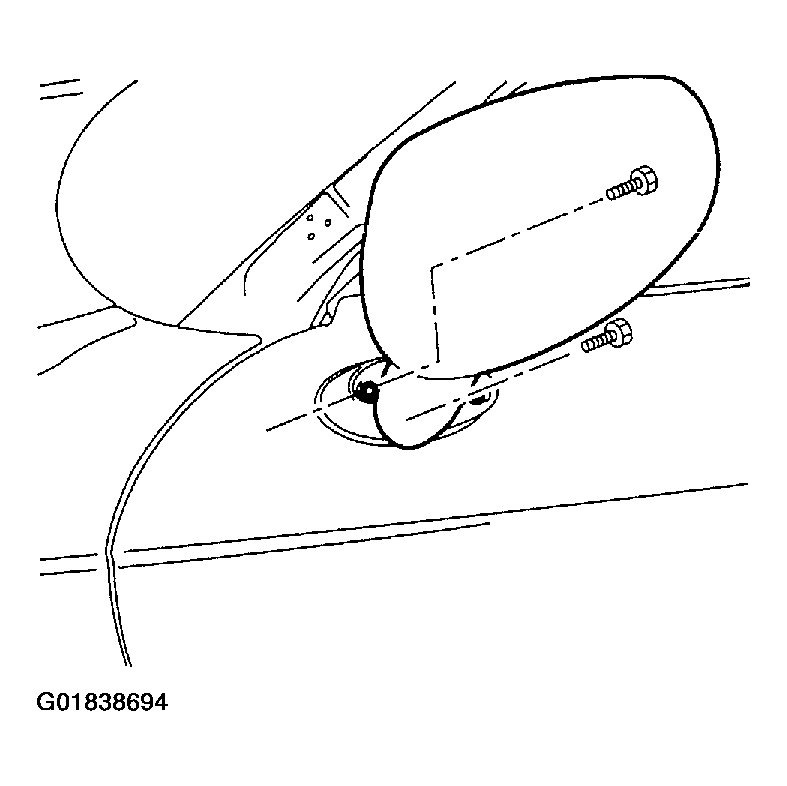

- Rotate the sideview mirror upward so the screws are exposed.
- Remove the two screws attaching the mirror to the door and remove the mirror.
