Front Wheel Speed Sensor: Installation

  1. Connect the wheel speed sensor/brake wear indicator wire harness connector (2) to the body mount connector (1).

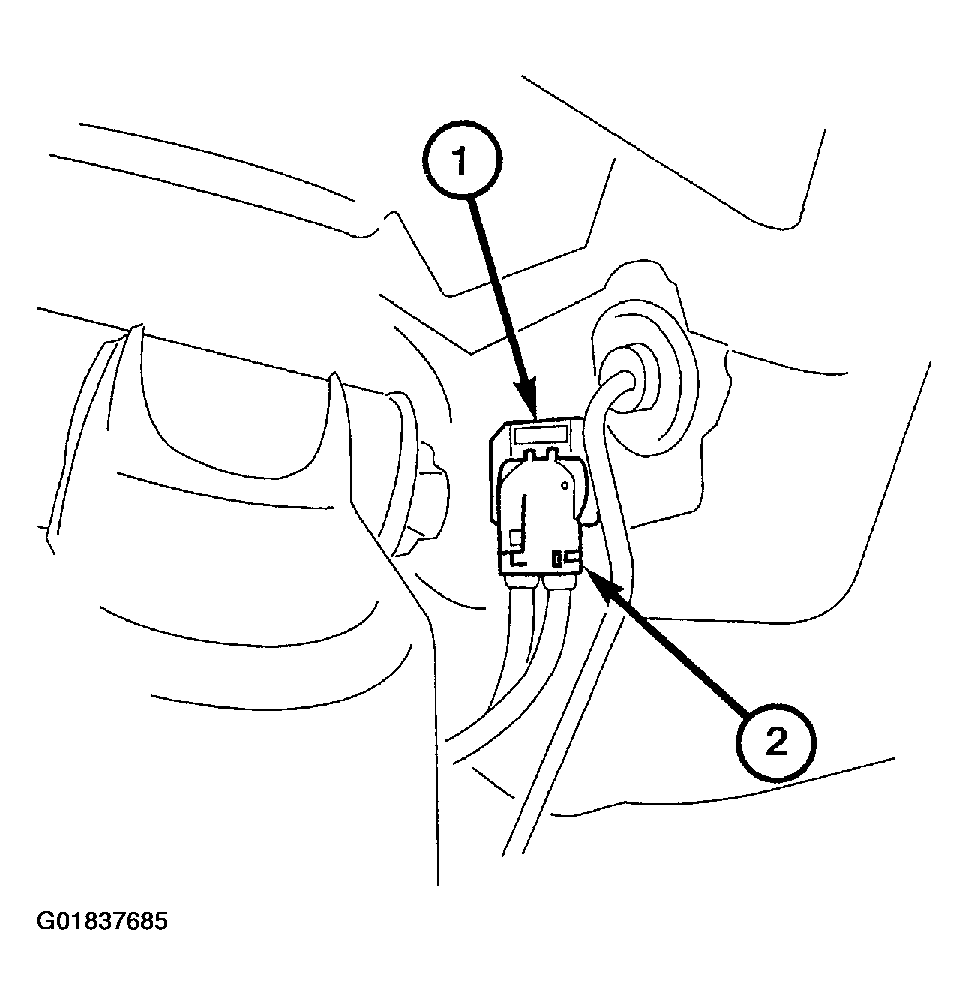

    Fig 1: Connecting Wheel Speed Sensor/Brake Wear Indicator Wire Harness Connector
    G01837685Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the wheel speed sensor (1) to the steering knuckle.
  3. Install the bolts (2) attaching the flange to the steering knuckle. Tighten to 12 N.m (106 in. lbs.).

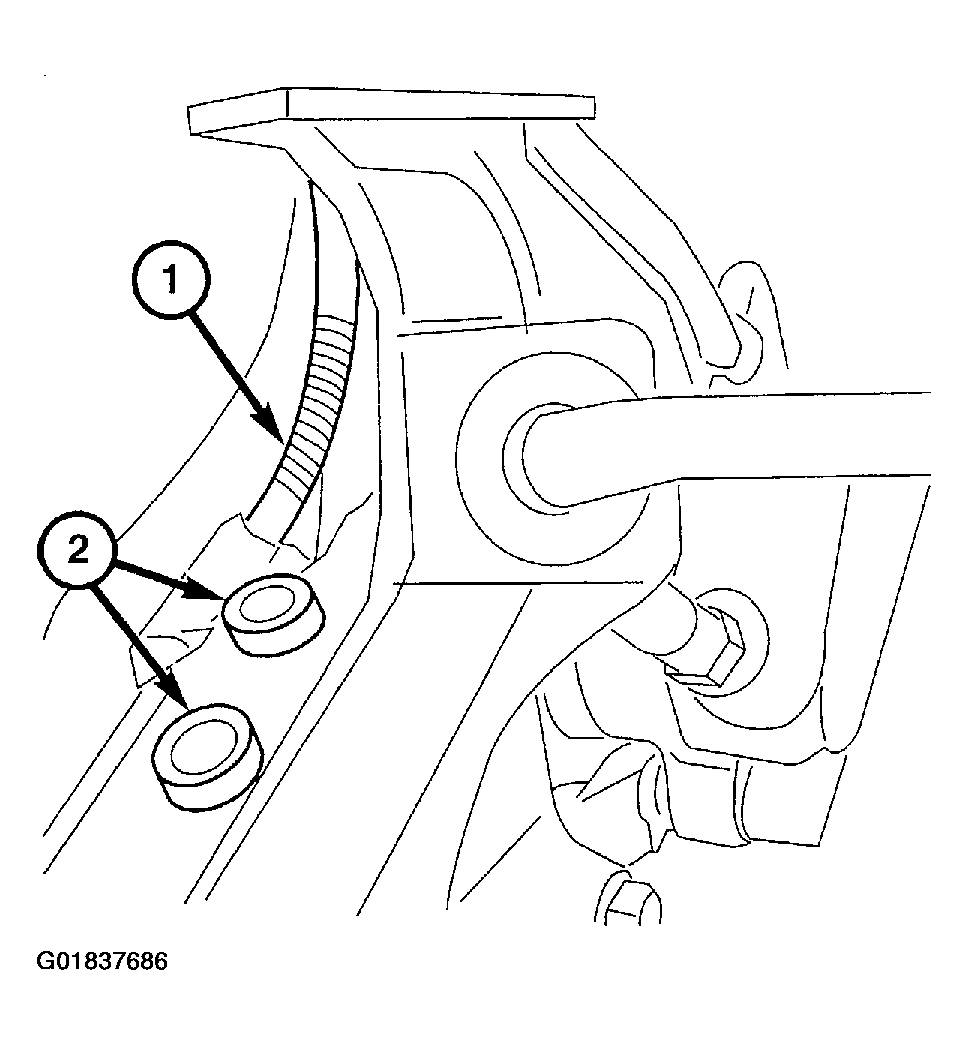

    Fig 2: Installing Wheel Speed Sensor
    G01837686Courtesy of DAIMLERCHRYSLER CORP.
