Central Locking Pump Module/ Security System Module Connector End View (C2)

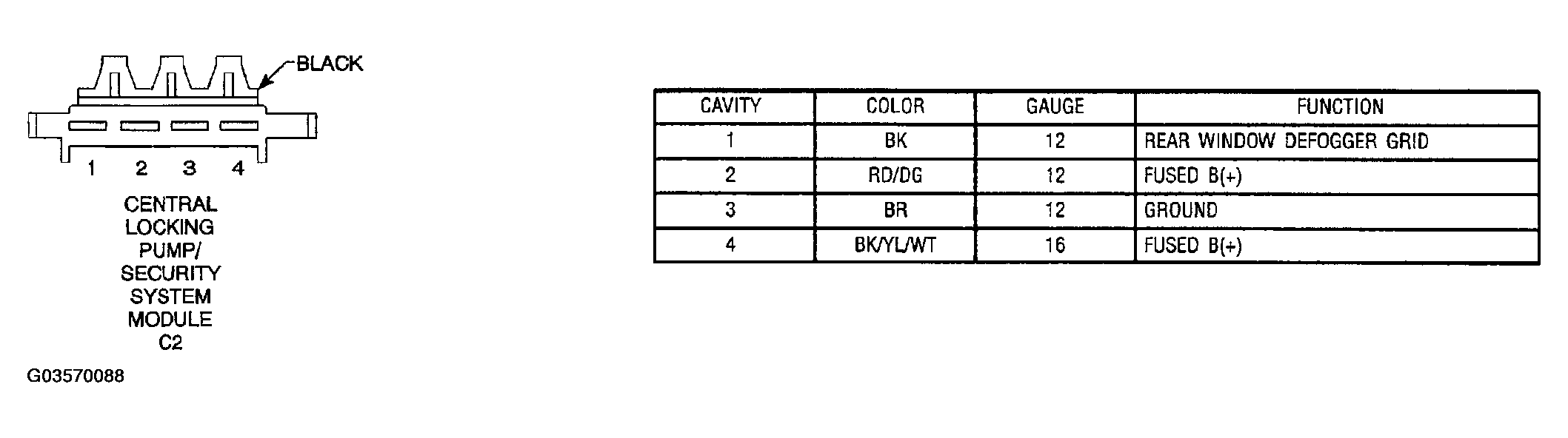

Fig 1: Central Locking Pump Module/ Security System Module Connector End View (C2)

G03570088

Courtesy of DAIMLERCHRYSLER CORP.
