Powertrain Control Module Connector End View (C1)

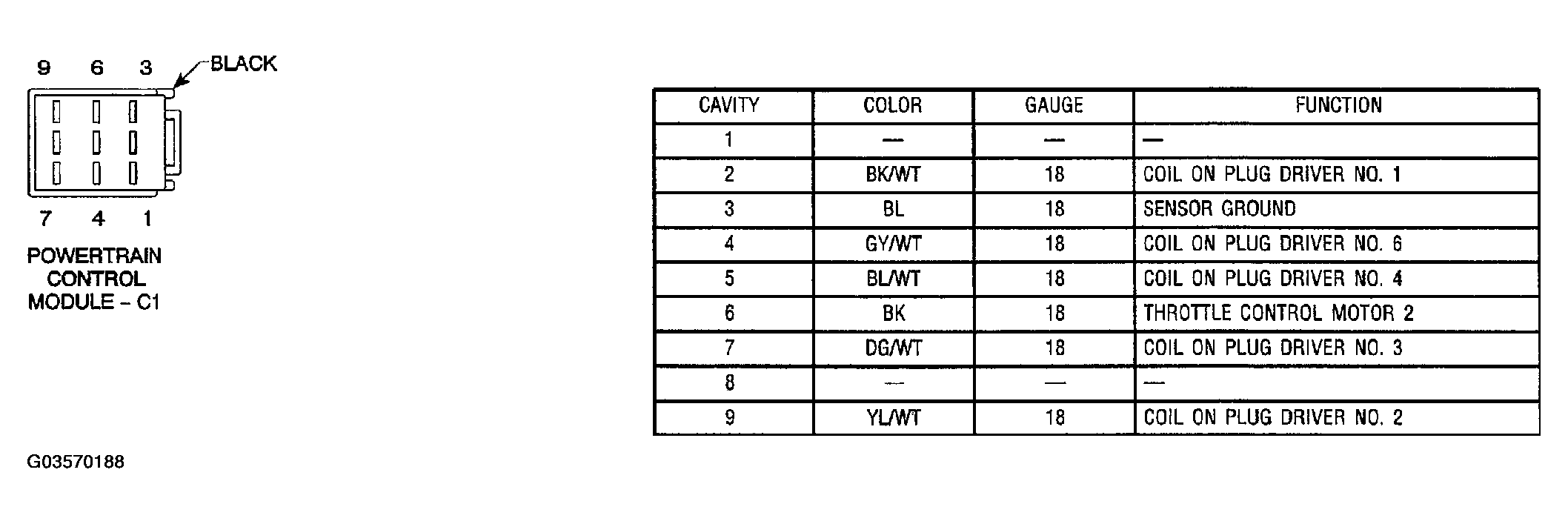

Fig 1: Powertrain Control Module Connector End View (C1)

G03570188

Courtesy of DAIMLERCHRYSLER CORP.
