Relay Control Module Connector End View (D)

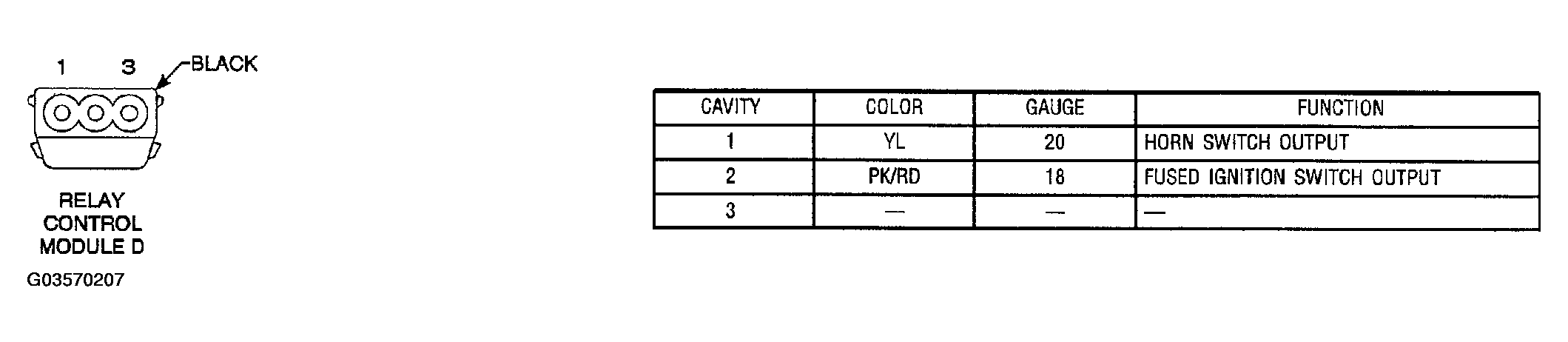

Fig 1: Relay Control Module Connector End View (D)

G03570207

Courtesy of DAIMLERCHRYSLER CORP.
