Exhaust System: Muffler: Removal

WARNING: THE NORMAL OPERATING TEMPERATURE OF THE EXHAUST SYSTEM IS VERY HIGH. THEREFORE, NEVER ATTEMPT TO SERVICE ANY PART OF THE EXHAUST SYSTEM UNTIL IT IS COOLED. SPECIAL CARE SHOULD BE TAKEN WHEN WORKING NEAR THE CATALYTIC CONVERTER. THE TEMPERATURE OF THE CONVERTER RISES TO A HIGH LEVEL AFTER A SHORT PERIOD OF ENGINE OPERATION TIME.

Raise and support vehicle.
Support the rear section of the exhaust system.

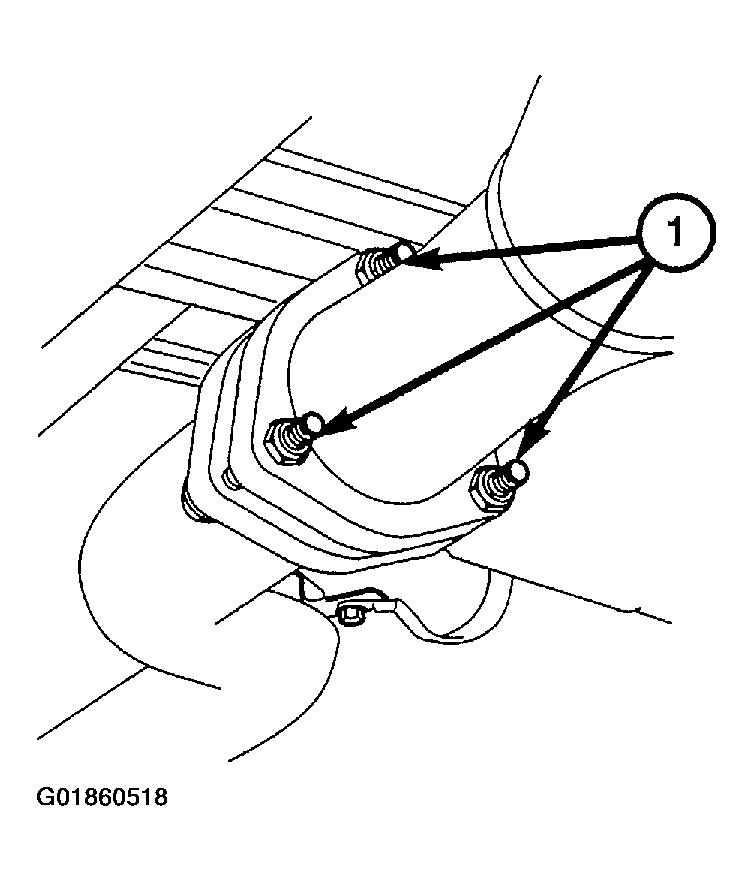

Remove bolts (1) from the center connection flange.

Fig 1: Removing Bolts From Center Connection Flange
Courtesy of DAIMLERCHRYSLER CORP.

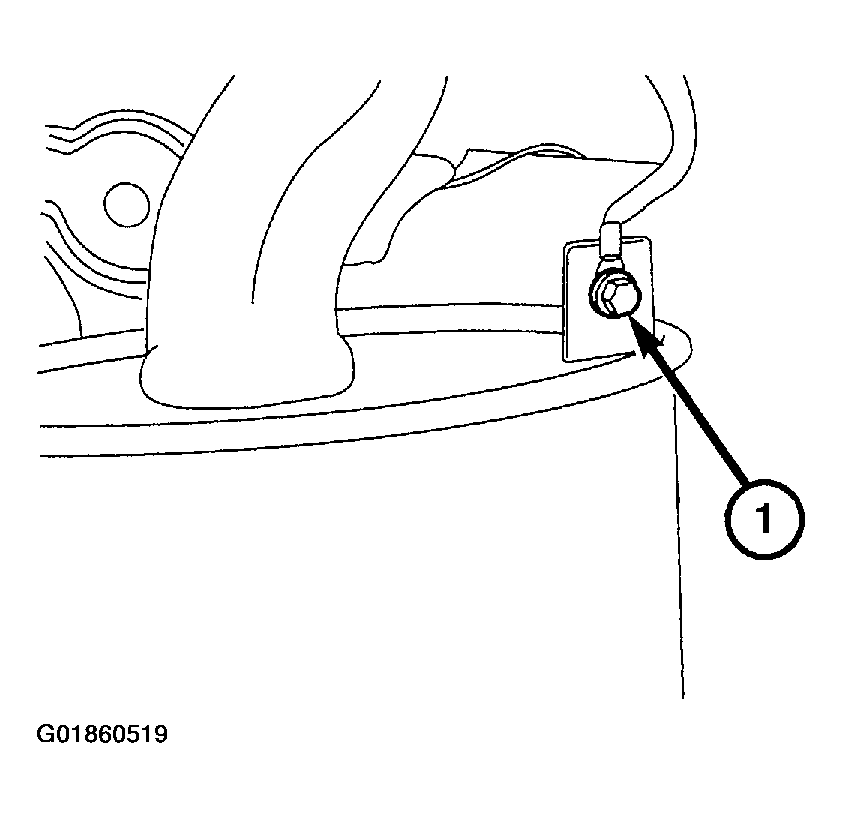

Disconnect the ground (1) strap at the muffler.

Fig 2: Disconnecting Ground Strap At Muffler
Courtesy of DAIMLERCHRYSLER CORP.

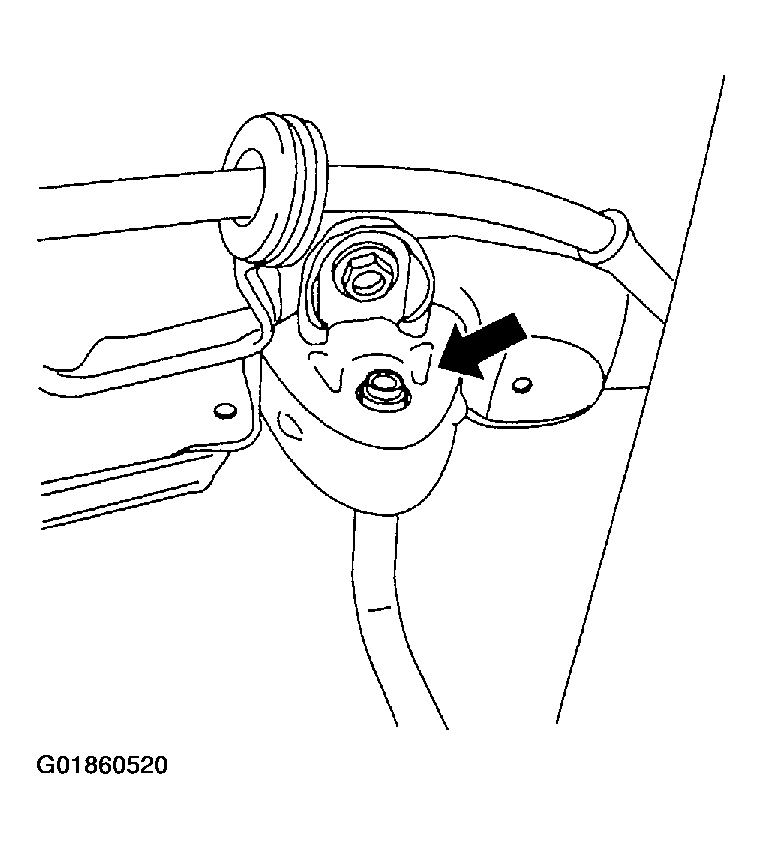

Remove the pipe (1) from the exhaust hanger (2).

Fig 3: Removing Pipe From Exhaust Hanger
Courtesy of DAIMLERCHRYSLER CORP.

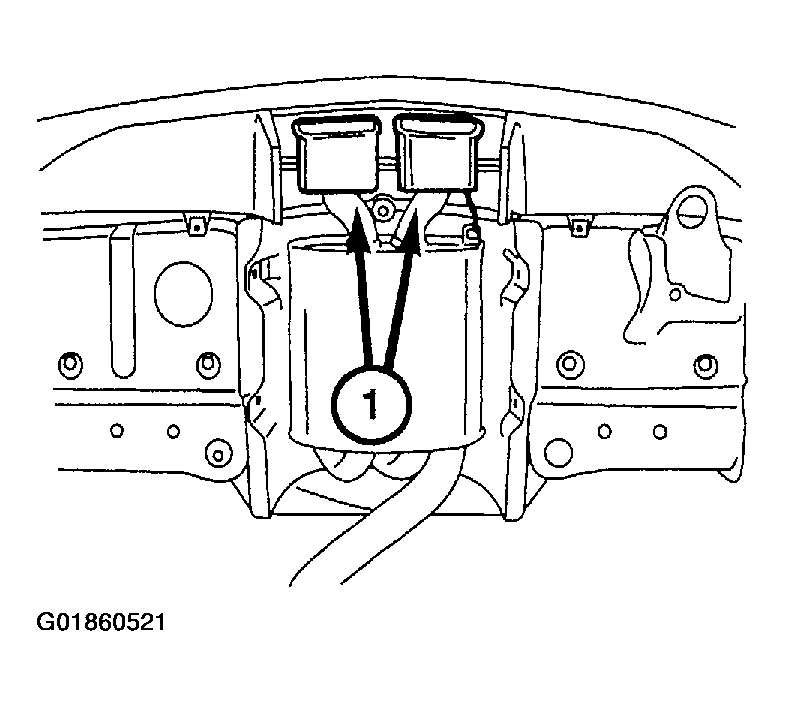

Pry off rubber the exhaust hangers (1) and remove the muffler with the pipe.

Fig 4: Prying Off Rubber Exhaust Hangers
Courtesy of DAIMLERCHRYSLER CORP.
